SICK VMS4100 Operating Instructions

SYSTEM DESCRIPTION 3
21
8023994-17I6/2020-03-19|SICK
Subject to change without notice
ORIGINAL OPERATING INSTRUCTIONS| VMS4100/5100
3.3 Triggering the recording of measured values

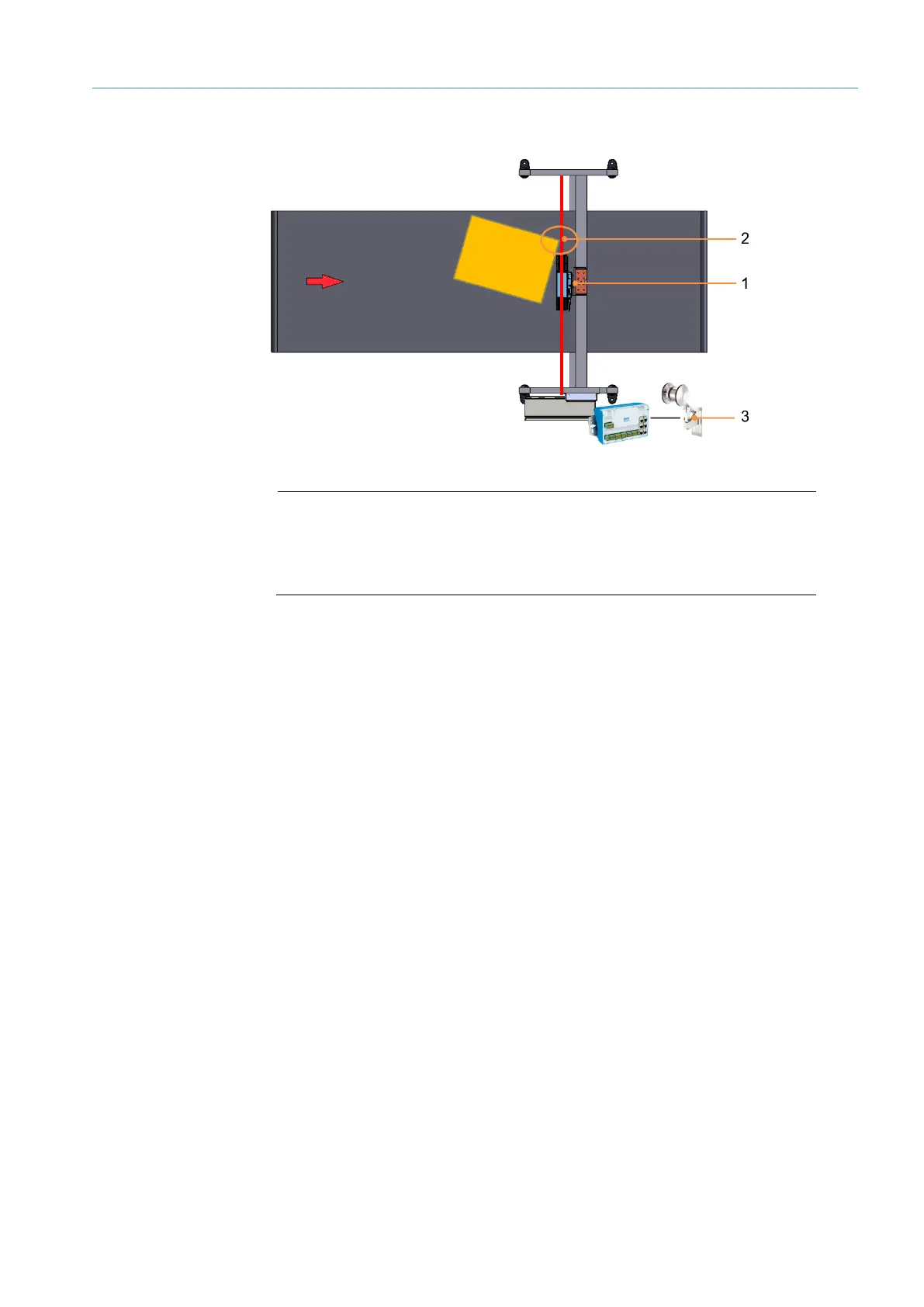

Fig. 9: Free-running mode
Legend
1 Measurement site
2 Scanning line = trigger line
3 Incremental encoder
• The multi-dimensional measurement system detects the objects to be measured on
its own.
• Measurement begins when an object enters the scanning line of the 2D LiDAR sensor.
• Measurement ends when the object leaves the scanning line.
Free-running
mode
