3.2.1 LMS4x21 2D-LiDAR sensor

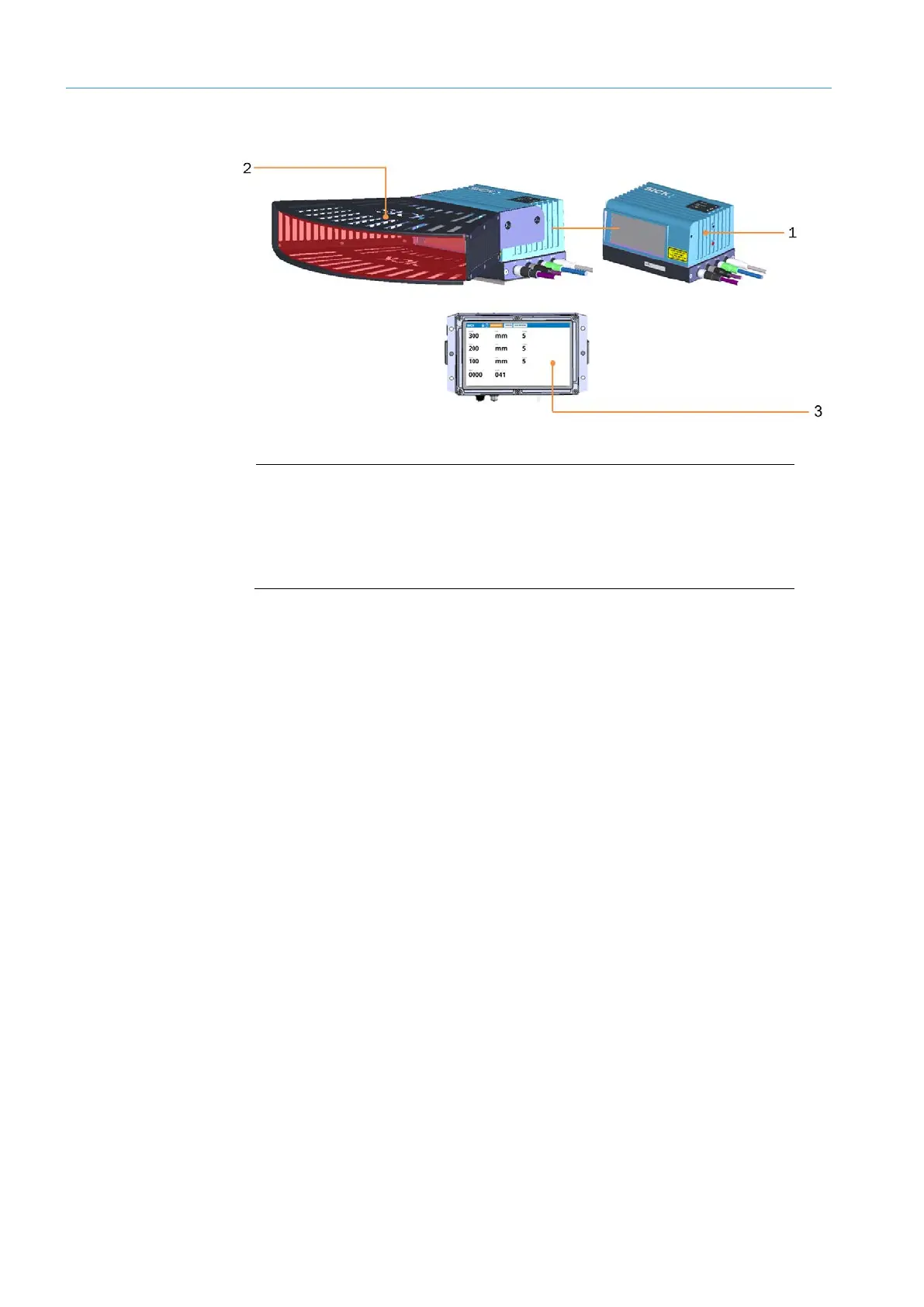

Fig. 3: LMS4x21 2D LiDAR sensor with LFT display - VMS5100 only
Legend
1 LMS4x21 2D-LiDAR sensor
2 Laser protective cover
3 LFT display for VMS5100 measurement systems approved for billing
applications
• Consists of an LMS4x21 2D LiDAR sensor with laser protective cover, with the sensor
mounted in a centered position on a profile above the conveying equipment.
• Used to determine the relevant object dimensions through non-contact detection
of objects on flat conveying systems.
• VMS5100 measurement systems operated in legal-for-trade applications also have
a separate LFT display to show the measurement results, status information,
firmware version, and logbook (version history).
Features
Function
LFT display
