5 ELECTRICAL INSTALLATION
74
8023994-17I6/2020-03-19|SICK
ORIGINAL OPERATING INSTRUCTIONS| VMS4100/5100
Subject to change without notice
5.1 Connection overview
5.1.1 Cabinet without Ethernet switch

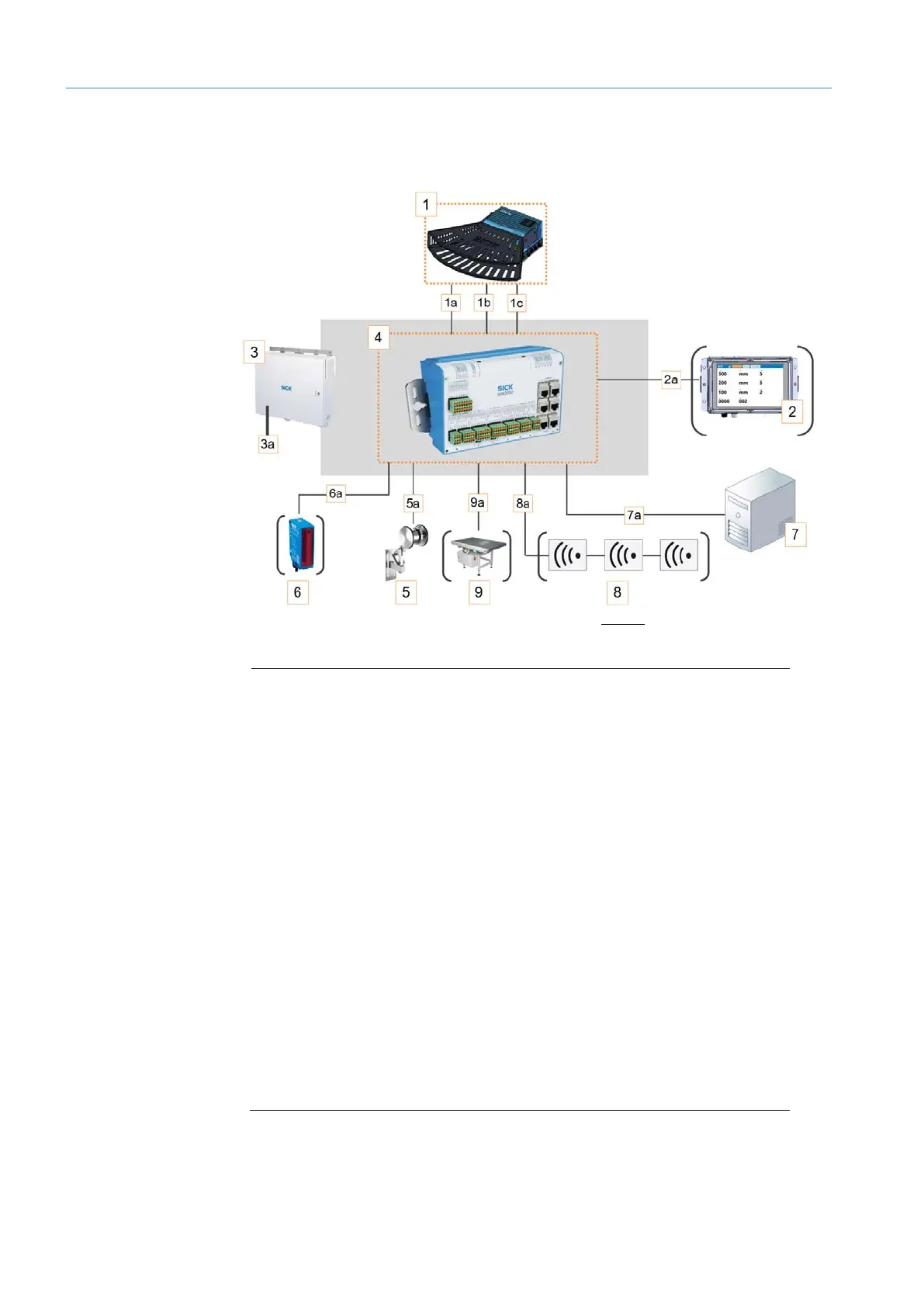

Fig. 73: Connection overview for VMS4100/5100 - cabinet without Ethernet switch
Legend
1
2D LiDAR sensor
1a
CAN bus
1b
Increment
1c
Ethernet
2 LFT display - VMS5100 only
2a
Ethernet
3
Cabinet
3a
Feed 100 ... 264 V AC / 50 ... 60 Hz
4
SIM2000 system controller
5 Incremental encoder
5a
Encoder signal
6
Photoelectric retro-reflective sensor (optional)
6a
Trigger signal
7
Customer server
7a Data output via Ethernet, fieldbus, or serial connection
8
Reading station (optional)
8a
CAN bus
9
Weighing station (optional)
9a
Data connection
