4 Mounting
All transport, assembly, mounting, and electrical installation work must only be carried out
by qualified persons.
• Qualified persons have the specialist training, skills, and experience, as well as
knowledge of the relevant regulations and standards, to be able to perform work
assigned to them and to identify and avoid any potential dangers independently.
• Electricians have the professional training, skills and experience, and knowledge of
the relevant standards and provisions to work on electrical systems and to detect and
avoid any potential dangers independently.
4.1 Mounting the 2D LiDAR sensor
The device is mounted in a centered position above the conveying equipment on a profile
frame.
NOTE!
• Adjustment after mounting is not required.
• The 2D LiDAR sensor is correctly pre-aligned at the factory through the orientation of
the mounting bracket.

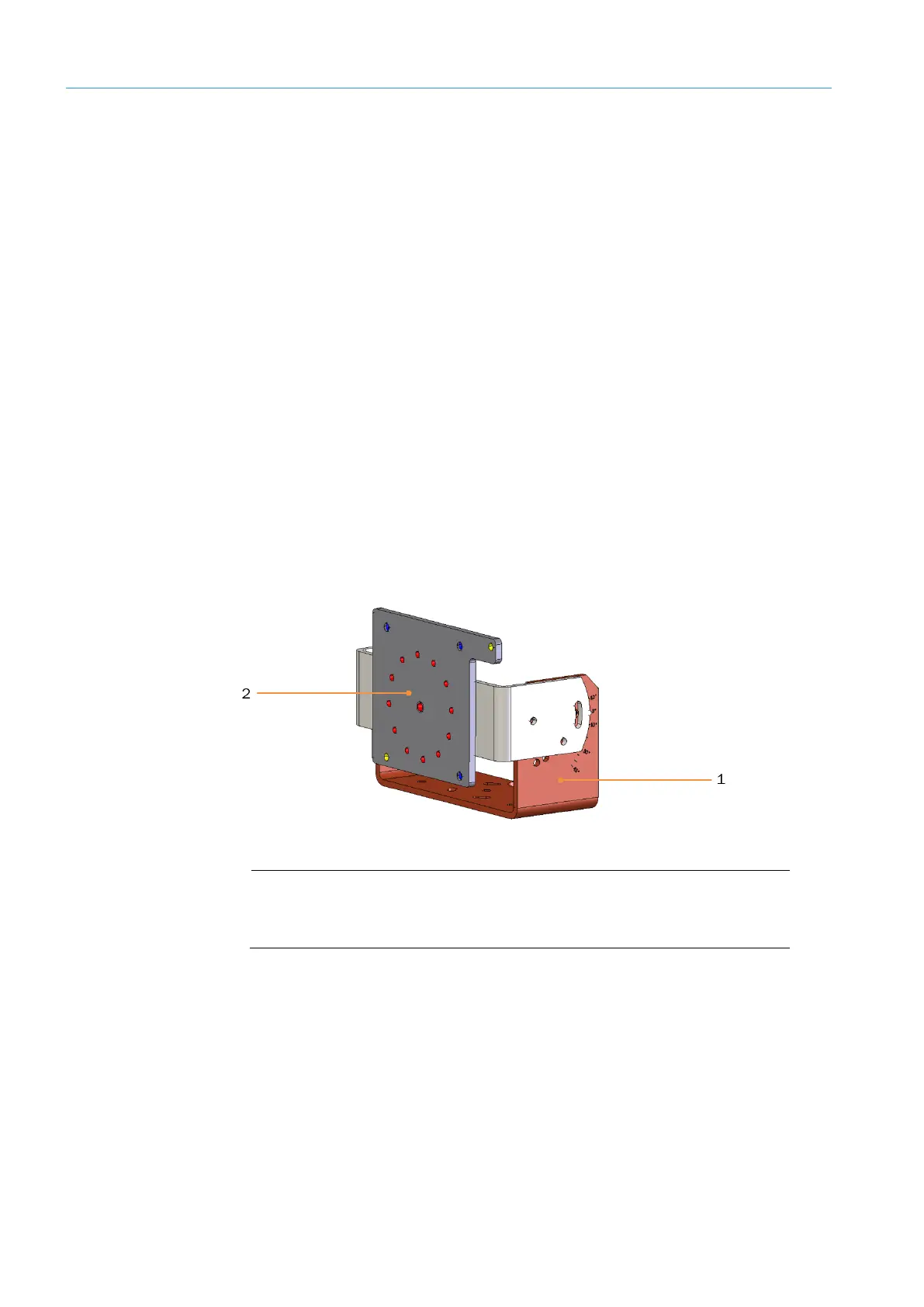

Fig. 65: Mounting bracket for the 2D LiDAR sensor
Legend
1 Mounting bracket with defined holes for mounting on the frame profile
2 Mounting plate for mounting the 2D LiDAR sensor
NOTE! The angles are preset for proper alignment.
▸
Do not change the angle settings.
Mounting bracket
