SICK VMS4100 Operating Instructions

MOUNTING 4
69
8023994-17I6/2020-03-19|SICK
Subject to change without notice
ORIGINAL OPERATING INSTRUCTIONS| VMS4100/5100

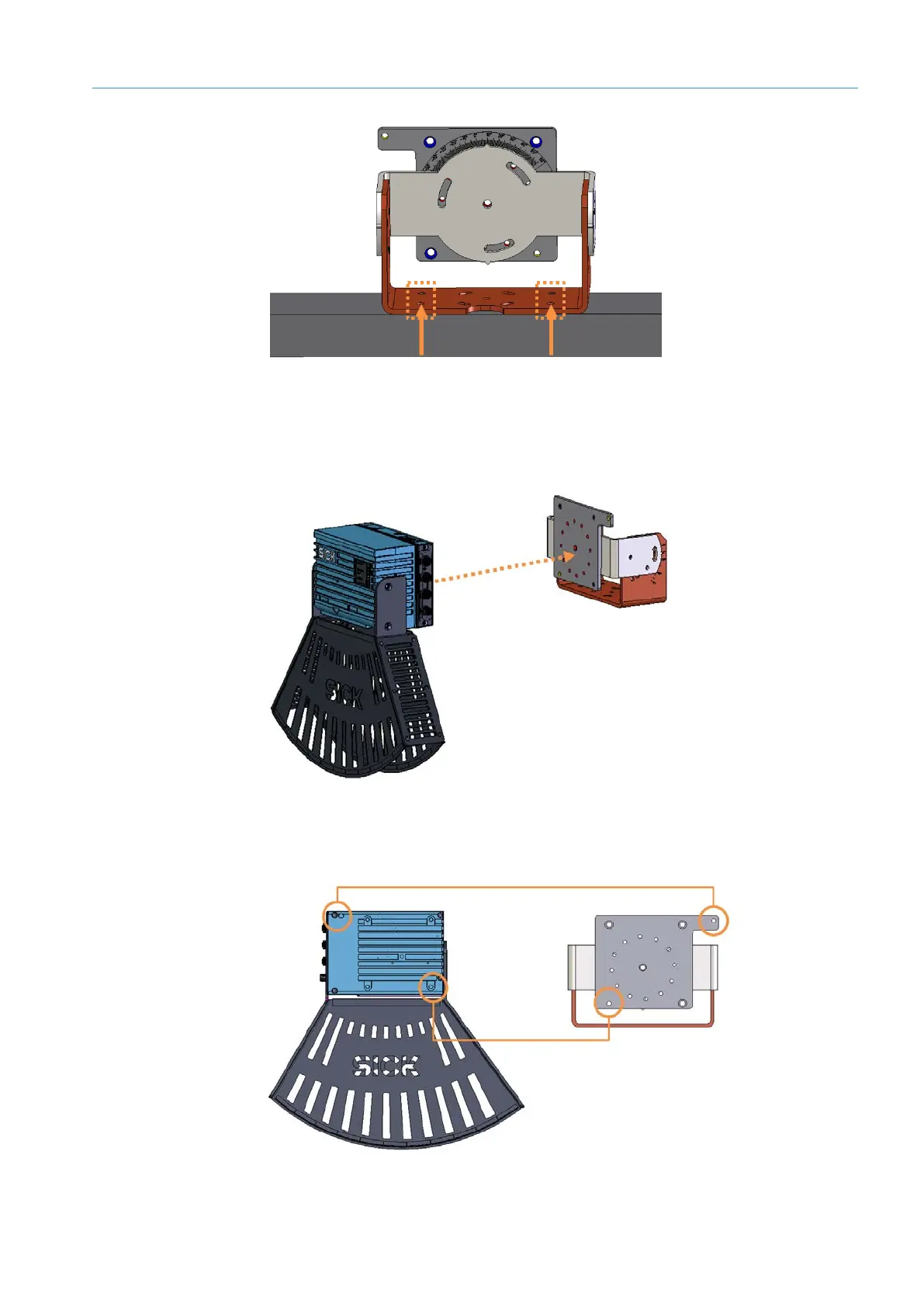

Fig. 66: Attaching the mounting bracket to the mounting frame
▸
Screw the mounting bracket to the top side of the transverse profile.
▸
Use the appropriate holes.
Fig. 67: Mounting the 2D LiDAR sensor
▸
Insert the press-fit stud of the mounting plate into the locating hole of the 2D LiDAR
sensor.
Fig. 68: Dowel pins and locating holes
Mounting the
mounting brackets
Fastening the 2D LiDAR
sensor to the
mounting plate
