SYSTEM DESCRIPTION 3
35
8023994-17I6/2020-03-19|SICK
Subject to change without notice
ORIGINAL OPERATING INSTRUCTIONS| VMS4100/5100
3.6 Additional function

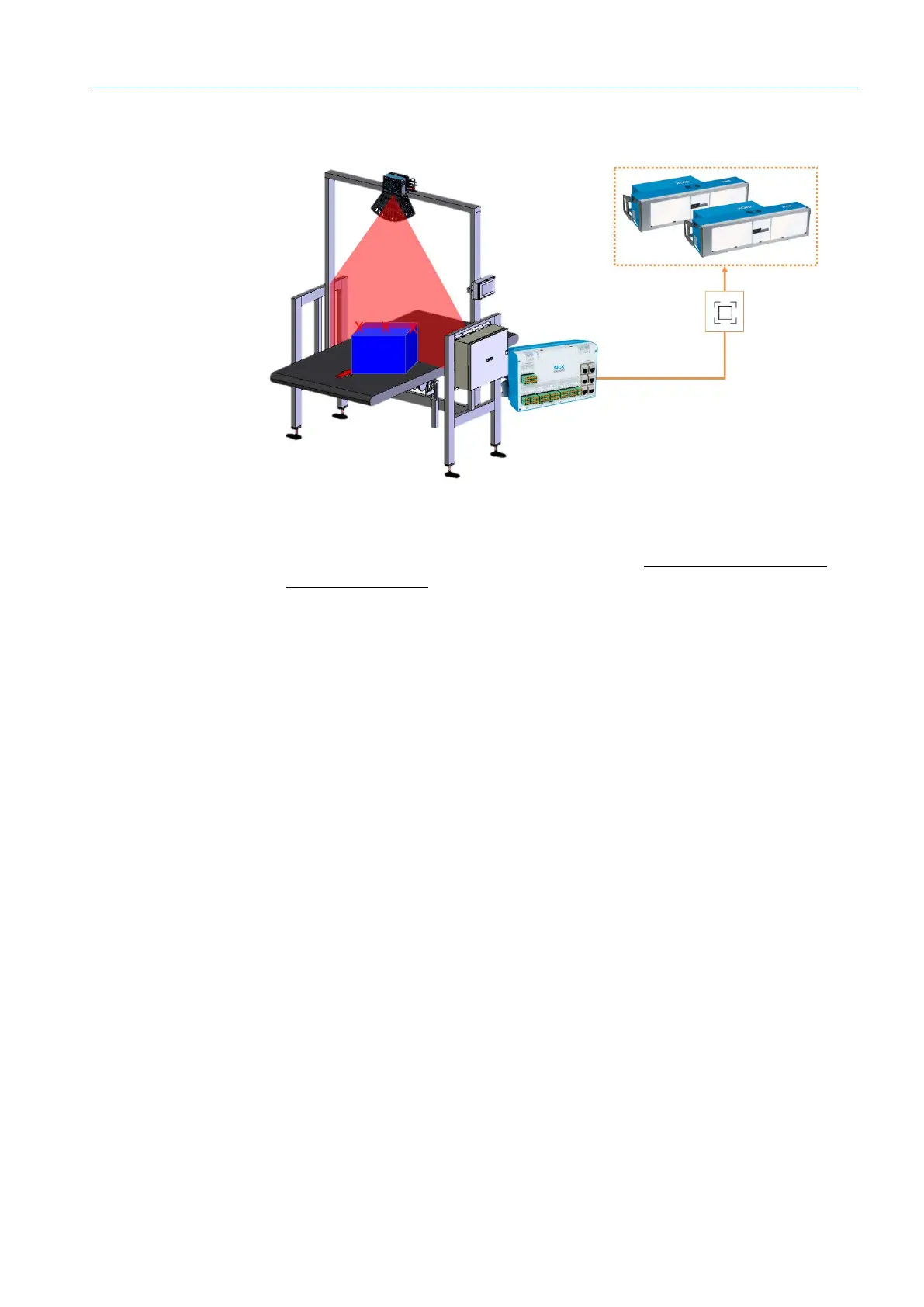

Fig. 32: Contour data as focus data for connected reading systems
• If the VMS4100/5100 multi-dimensional measurement system is operated as part of
a complete system with a reading station (see chapter 3.2.5 Expanding the system
with a reading station), the contour data can be used as the basis for dynamic camera
focusing.
• For this purpose, the controller supplies continuous information about the distance
of the 2D LiDAR sensor to the object surface via the CAN bus.
