3 SYSTEM DESCRIPTION
8023994-17I6/2020-03-19|SICK
ORIGINAL OPERATING INSTRUCTIONS| VMS4100/5100
Subject to change without notice

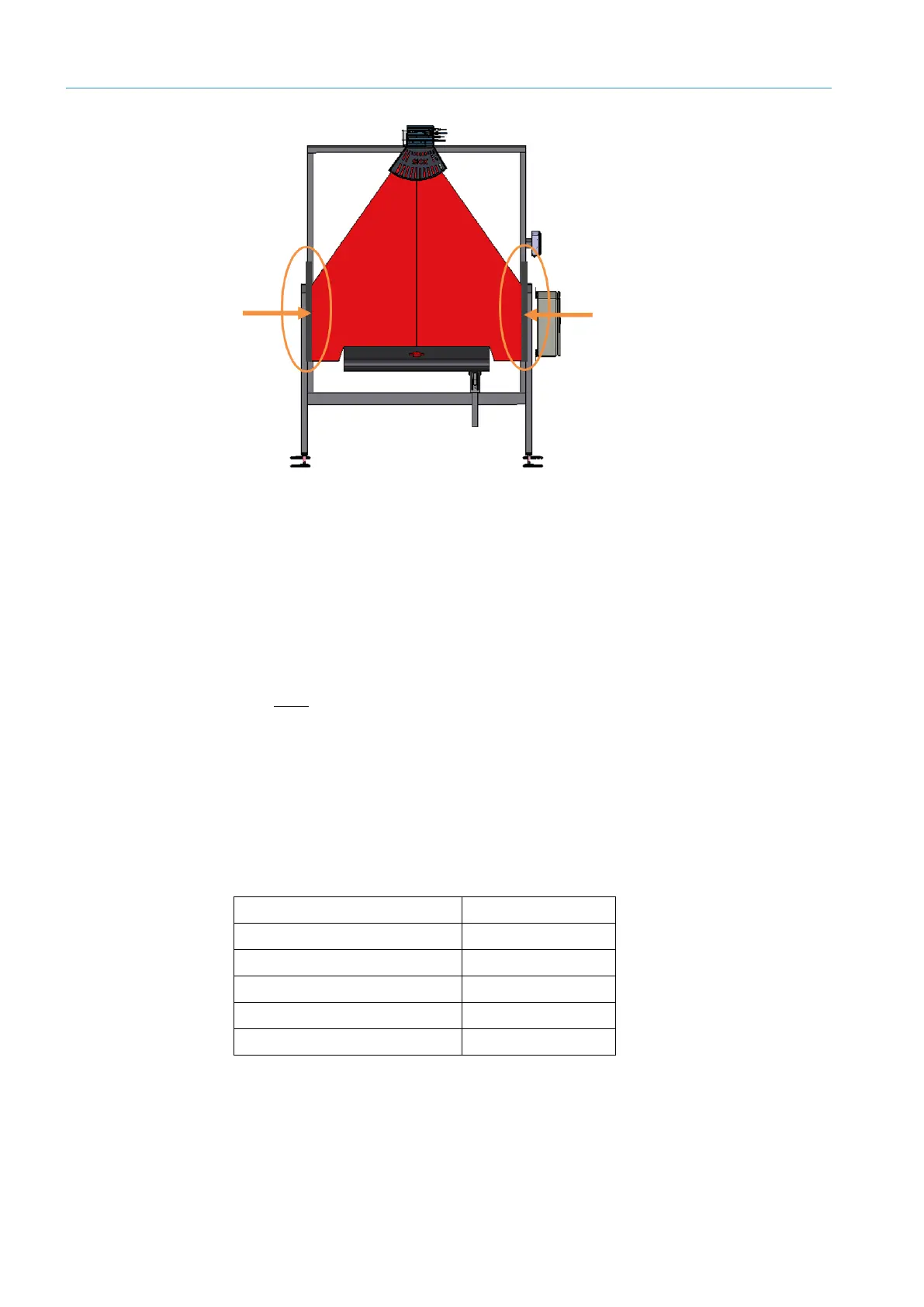

Fig. 63: Beam blockers for restricting the laser beams to the measuring range
▸
Attach beam blockers to the mounting frame to restrict LMS4x21 laser beams to the
application space.
NOTE! Detection of people or objects located outside the measuring range is not
permitted. This would otherwise distort the measurement result.
3.9.4 Object requirements
Only cubic objects can be measured.
• Dimensionally stable (not deformable)
• Opaque surface (not transparent)
• Non-reflective surface (no shiny or reflective surface)
The remission of the objects must be between 10% and max. 200%.
NOTE! Black objects with extremely low remissions (< 10%) cannot be measured with high
accuracy.
Object color Remission [%]
Black cardboard 10
Blue 16
Red 75
White 98
Black with shiny tape 107
Beam restriction
Required
object properties
Radiance factor
