SICK VMS4100 Operating Instructions

SYSTEM DESCRIPTION 3
51
8023994-17I6/2020-03-19|SICK
Subject to change without notice
ORIGINAL OPERATING INSTRUCTIONS| VMS4100/5100
The calibration switch and alibi memory card in the designated bay on the back of the
SIM2000 system controller are protected by an adhesive seal on the screwed-on bay
opening and by a bar of the SIM2000 manipulation guard.
NOTE! The adhesive seal is also a form of protection against unauthorized opening of
the SIM2000 housing.

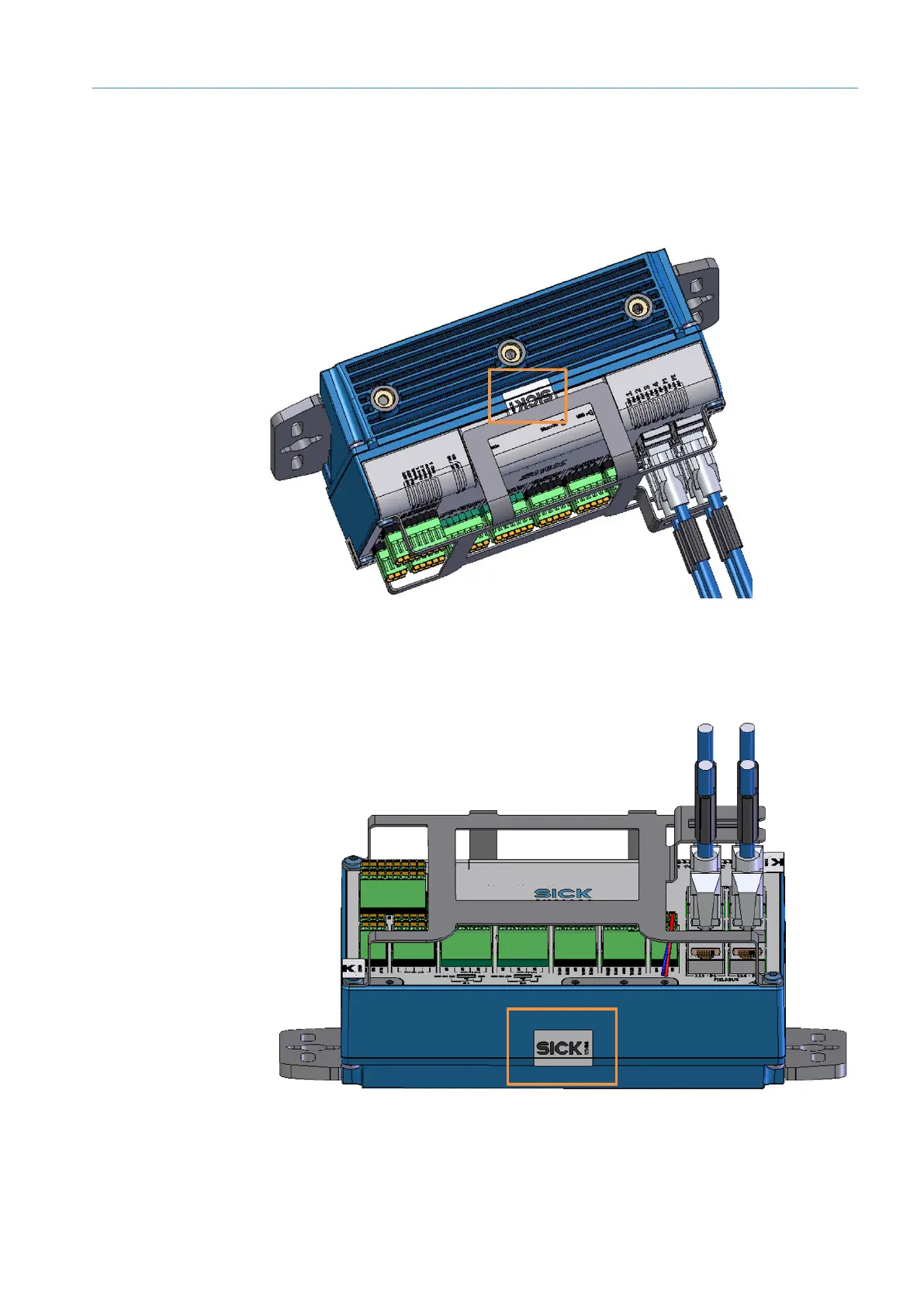

Fig. 46: Securing the SIM2000 installation bay for the calibration switch and alibi memory card
and the rear housing with an adhesive seal and manipulation guard in the VMS5100 MID
The SIM2000 housing is protected against unauthorized opening by corresponding
adhesive seals on the front and rear sides.
Fig. 47: Securing the SIM2000 housing against unauthorized opening with adhesive seals
(front side in this example) in the VMS5100 MID
Calibration switch and
alibi memory card
security
SIM2000
housing security
