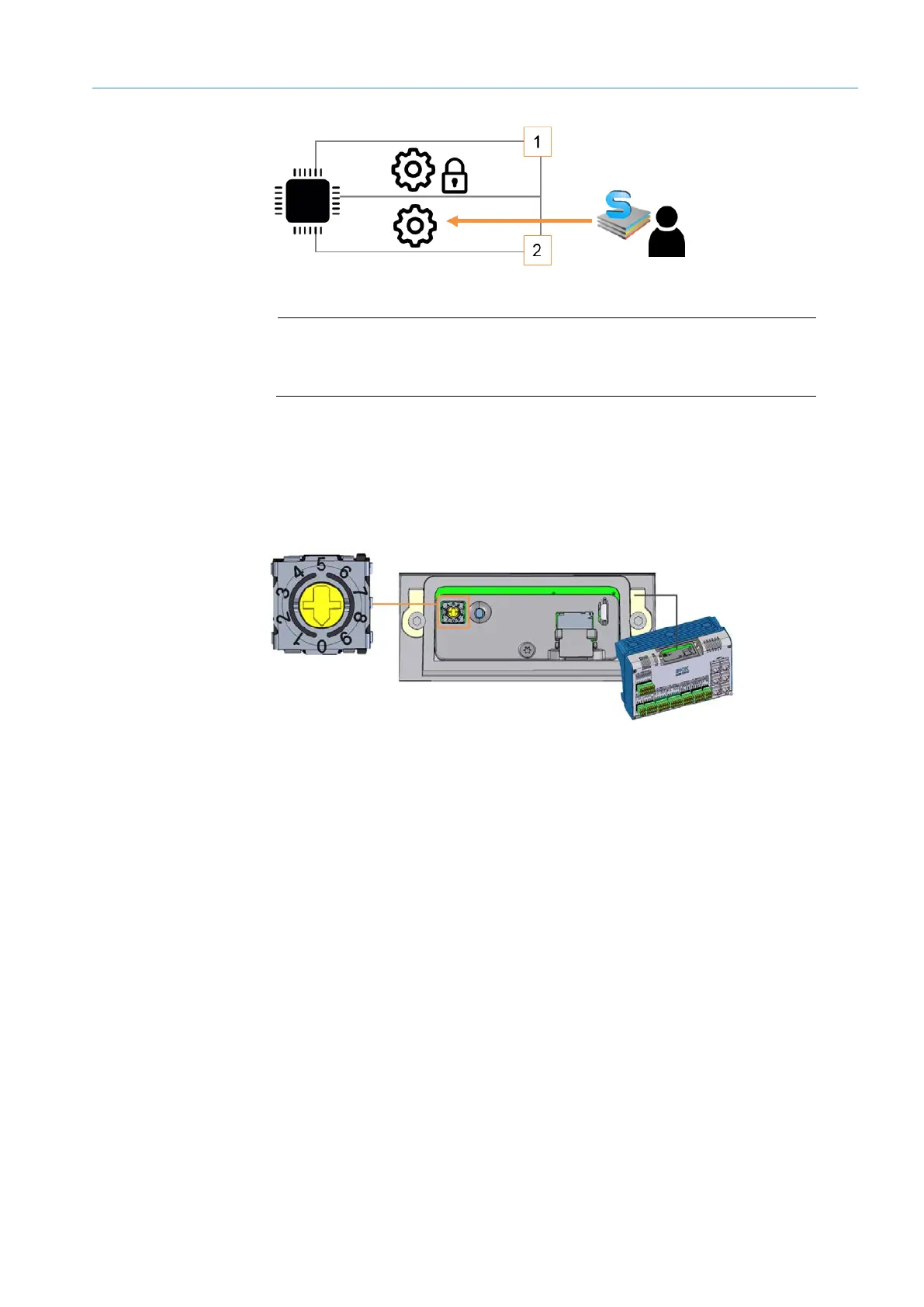

Fig. 53: Separation of firmware into an application part and a metrologically relevant part
Legend
1 Metrologically relevant part
2 Application
• The firmware is separated into an application part and a metrologically relevant part.
• The separation allows customer-specific parameters to be changed via the SOPAS
configuration software without violating the LFT conformity of the multi-dimensional
measurement system.
Fig. 54: Calibration switch for interlocking the metrological software parameters
• The software relevant to the LFT conformity with the accompanying LFT parameters
is protected by a calibration switch.
• The calibration switch is located beneath the sealed service flap.
• It is interlocked by turning the calibration switch to the zero position.
Firmware
Calibration switch
