Article SIEB & MEYER article number
Grinding paper 47000003

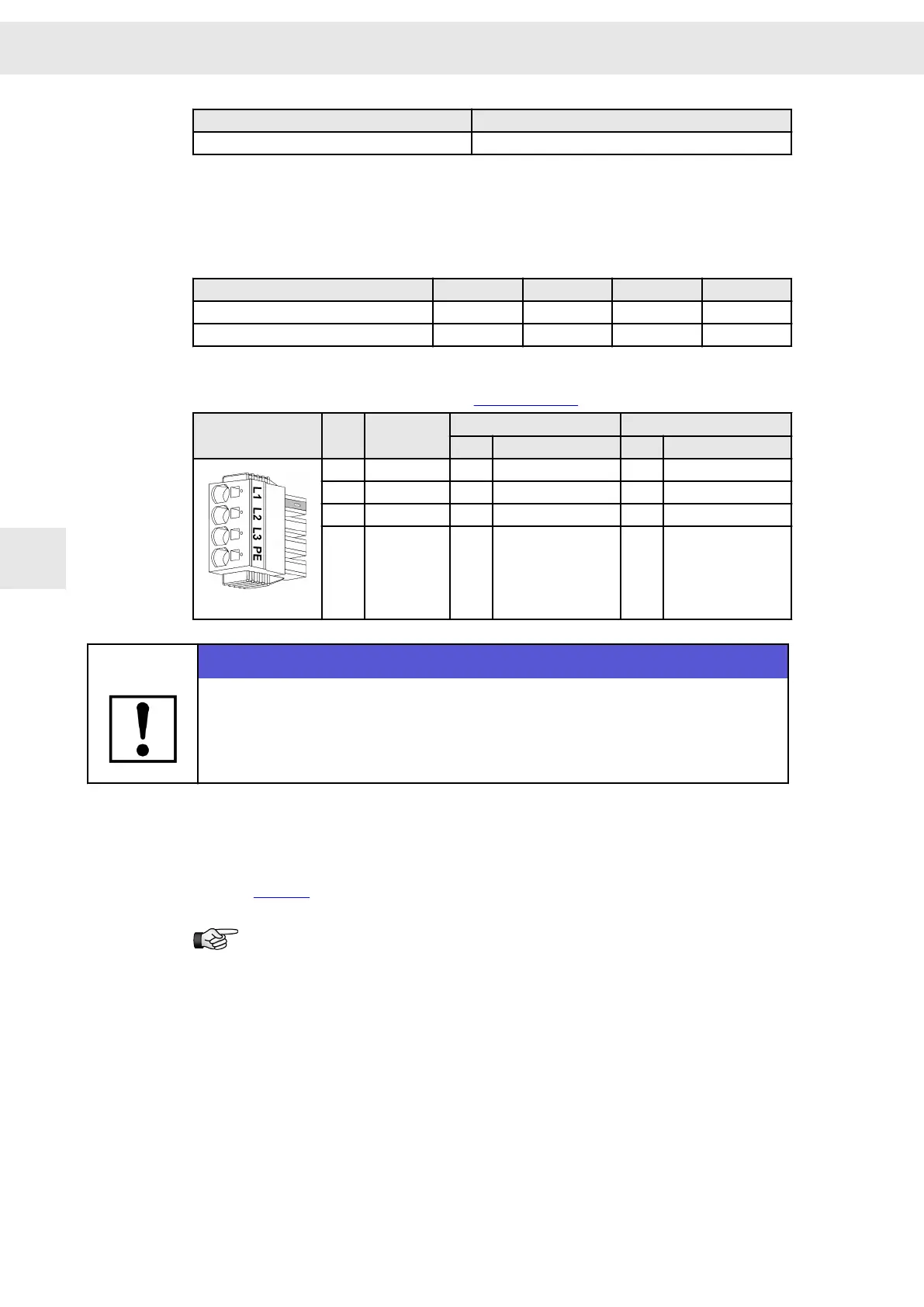

7.13 X44 – Power Supply
Device variants:
0362X... 29xF 49xF 29xC 49xC
1-phase power supply – – ✔ ✔
3-phase power supply ✔ ✔ ✔ ✔
4-pole Power-Combicon connector, suitable for mating connector SPC 5/ 4-STCL-7,62
(Phoenix) with Click & Lock system (see STCL, page 37)
Mating connector
X44
Pin Coding 1-phase power supply 3-phase power supply
Name Description Name Description
1 Coded L Main supply L1 Main supply
2 – N Neutral conductor L2 Main supply
3 – – n.c. L3 Main supply
4 – PE Protective conductor PE Protective conductor
NOTICE
3-phase power supply of the device variants 0362x29xC / 0362x49xC
The devices must be supplied with max. 3 × 230 V
AC
. Higher voltages can destroy
the devices.
Specification of terminal connections:
▶ Conductor cross-section solid: 2.5 – 10 mm²
▶ Conductor cross-section flexible: 2.5 – 6 mm²
▶ Connection method: spring-cage connection with push-in technology (handling:
see page 37)
Consider that the conductor cross-section to be used for your application
depends on the total load of the power supply unit.
Connector Pin Assignment
W
50 Drive System SD2S - Hardware Description 0362X49xy / 0362129xy
7
