8.6.7 Hall Sensor 5.3 V
NOTICE
Voltage (VCC) varies depending on the set measuring system
When the connected measuring system is operated under a wrong voltage, it can
be damaged.
Check that you have chosen the right measuring system in the software before
connecting.
When this meysuring system is parameterized VCC_FB is switched to 5.3 V.
W

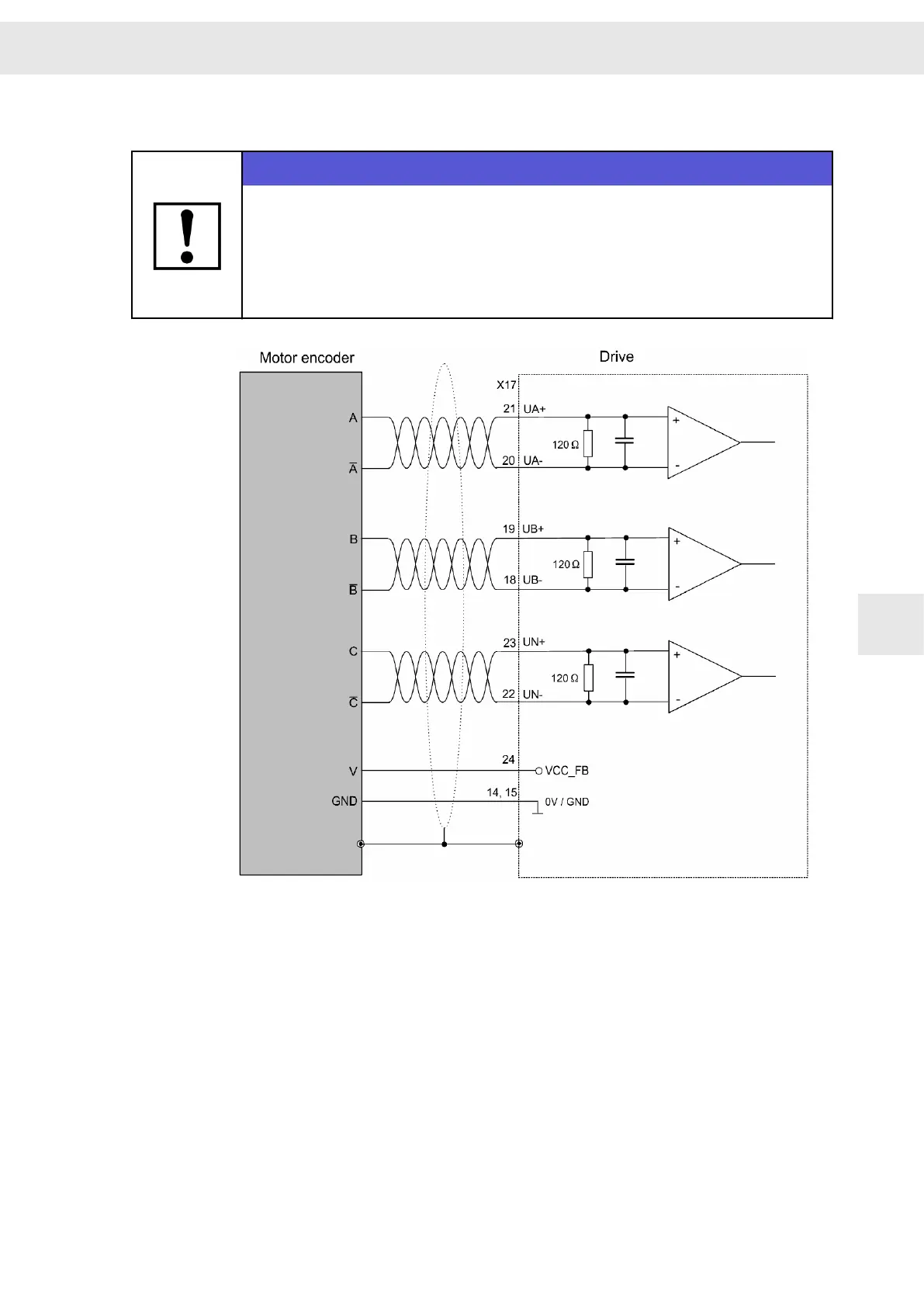

Connection Examples
