8.6.6 Hall Sensor 12 V
NOTICE
Voltage (VCC) varies depending on the set measuring system
When the connected measuring system is operated under a wrong voltage, it can
be damaged.
Check that you have chosen the right measuring system in the software before
connecting.
When this meysuring system is parameterized VCC_FB is switched to 12 V.

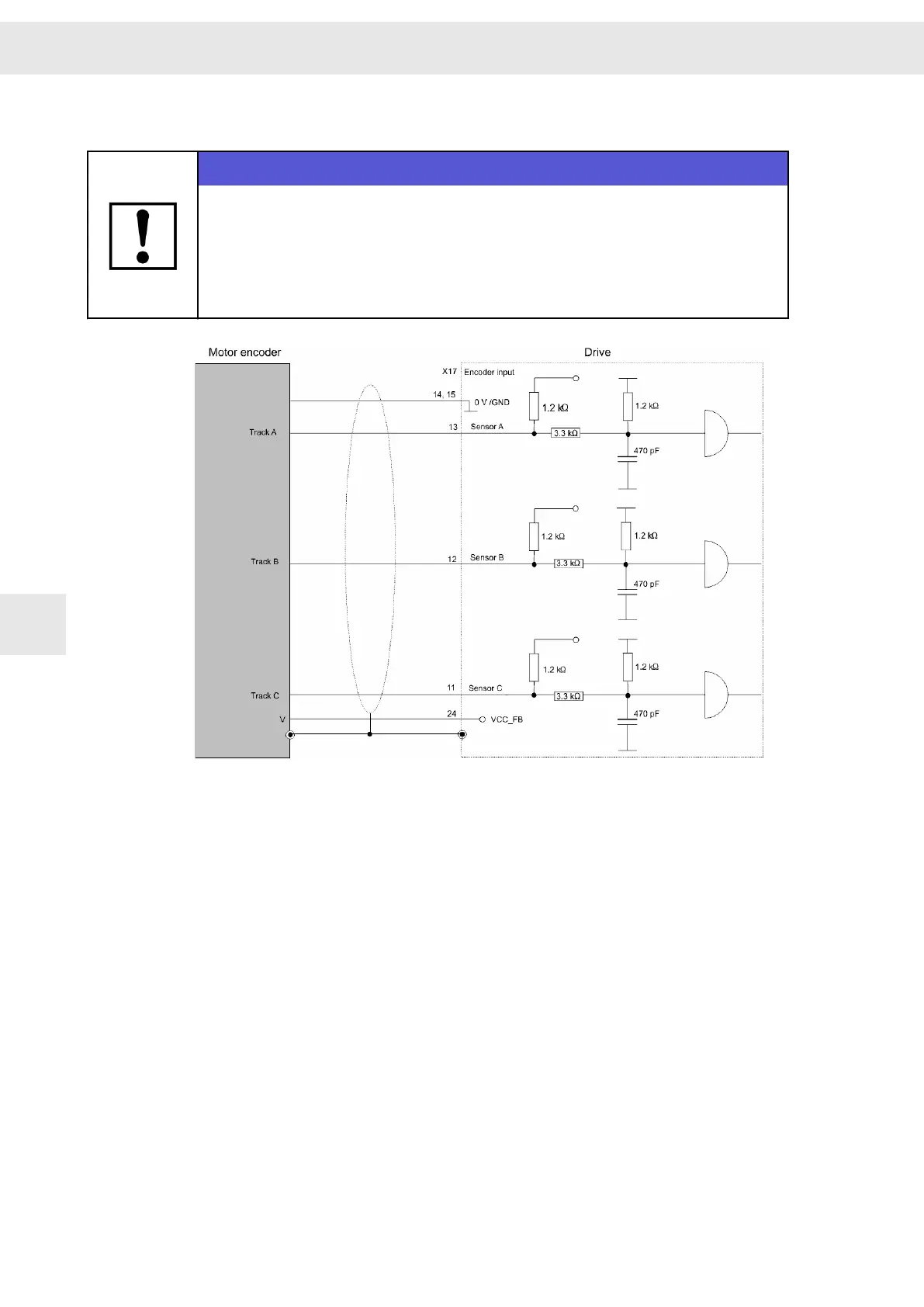

Connection Examples
W
66 Drive System SD2S - Hardware Description 0362X49xy / 0362129xy
