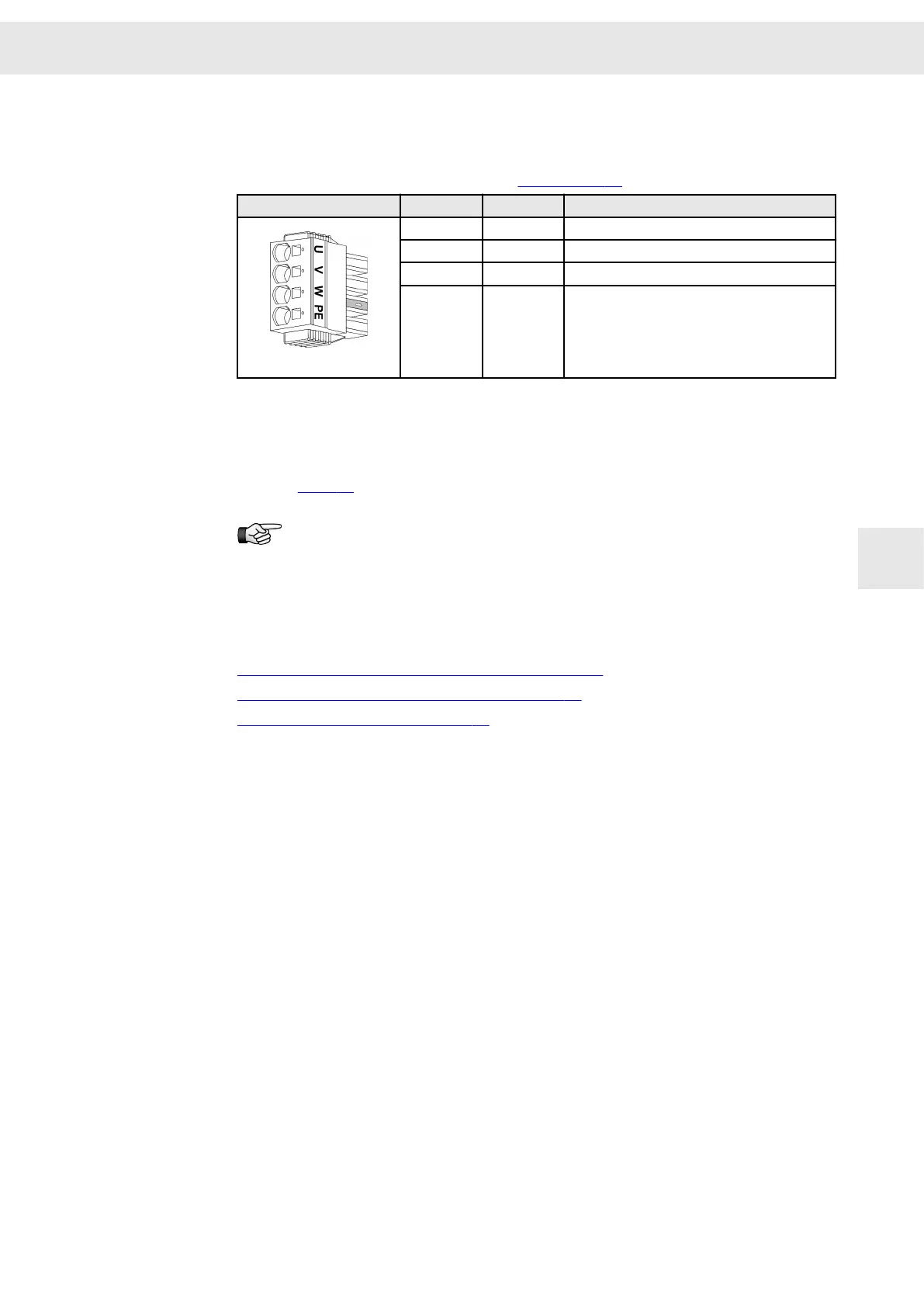

7.14 X45 – Motor Connection
4-pole Power-Combicon connector, suitable for mating connector SPC 5/ 4-STCL-7,62
(Phoenix) with Click & Lock system (see
STCL, page 37)
Mating connector X45
Name Coding Meaning
U - Motor phase U
V - Motor phase V
W Coded Motor phase W
PE - Protective conductor
Specification of terminal connections:
▶ Conductor cross section (solid)2.5 to 10 mm²
▶ Conductor cross section (stranded)2.5 to 6 mm²
▶ Connection method: spring-cage connection with push-in technology (handling:
see page 37.
If you use a shielded motor cable longer than 5 m, the cable requires an
additional interference suppression: The motor cable could be filtered, for
example, with 11 windings through a ferrite core (ferrite core: R 63/38/25, Al
= 15150 nH; article No. 13163110). The maximum permissible length of a
shielded motor cable is 25 m.
Related topics
Connection example: "X45 – Motor Phases", page 76
Shielding: "Shielding of the Motor Cable", page 77
Cable notes: "Motor Cable", page 92
W
Connector Pin Assignment
