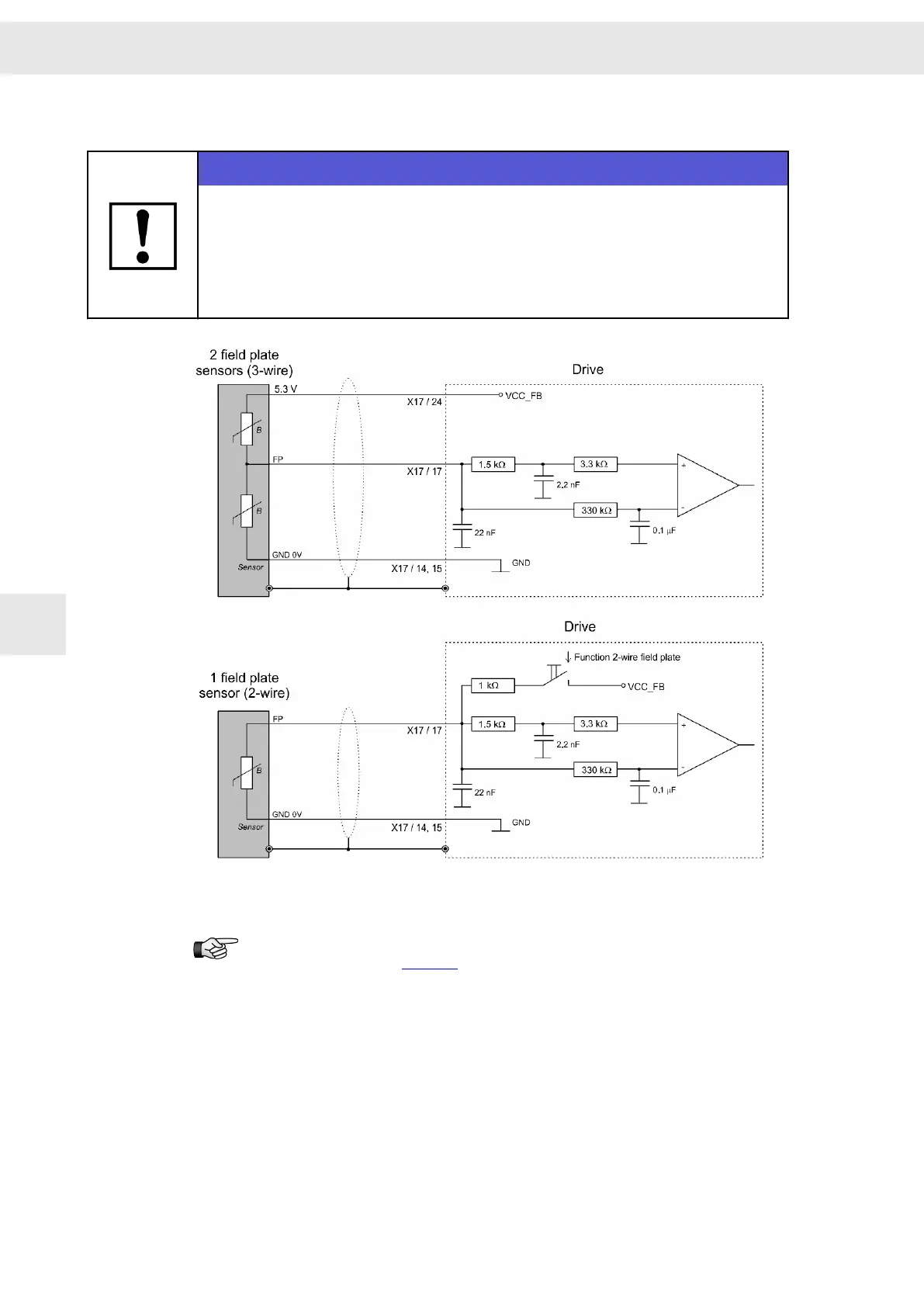

8.6.8 Field Plate
NOTICE
Voltage (VCC) varies depending on the set measuring system
When the connected measuring system is operated under a wrong voltage, it can
be damaged.
Check that you have chosen the right measuring system in the software before
connecting.
When this meysuring system is parameterized VCC_FB is switched to 5.3 V.
A digital field plate (e.g. GMR sensor) is connected to X15 (pin 6), see
connection example page 59.
Connection Examples
W
68 Drive System SD2S - Hardware Description 0362X49xy / 0362129xy
