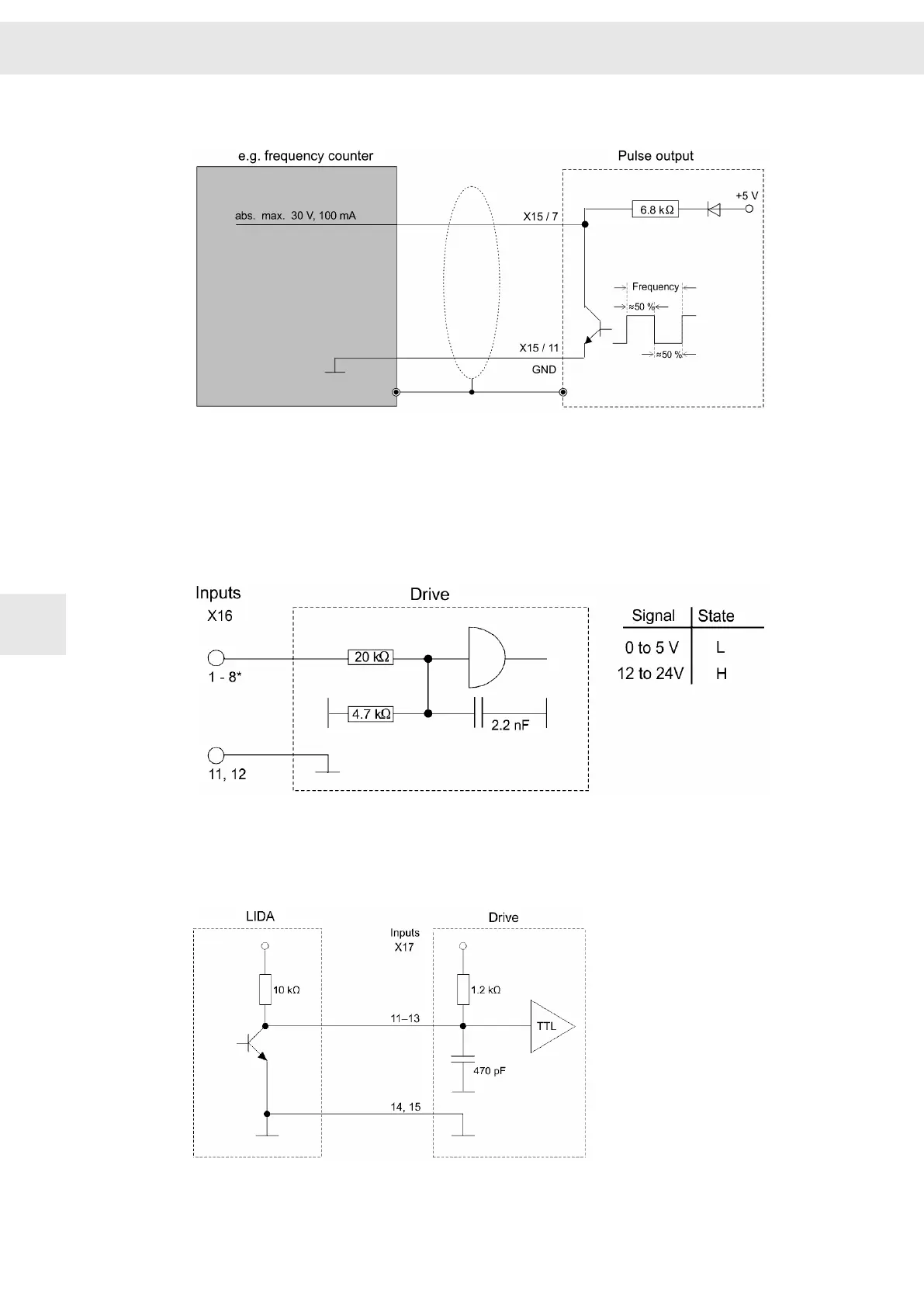

8.4.5 PULSE (Speed Pulses)
8.5 X16/17 – Digital Inputs
Digital inputs at X16
The meanings of the digital inputs can be defined by parameters.
[*] Yet another digital input is located at the connector X15, pin 6.
Digital inputs (5 V) at X17
The following figure is a wiring example for a 5 V limit switch:
Connection Examples
W
60 Drive System SD2S - Hardware Description 0362X49xy / 0362129xy
