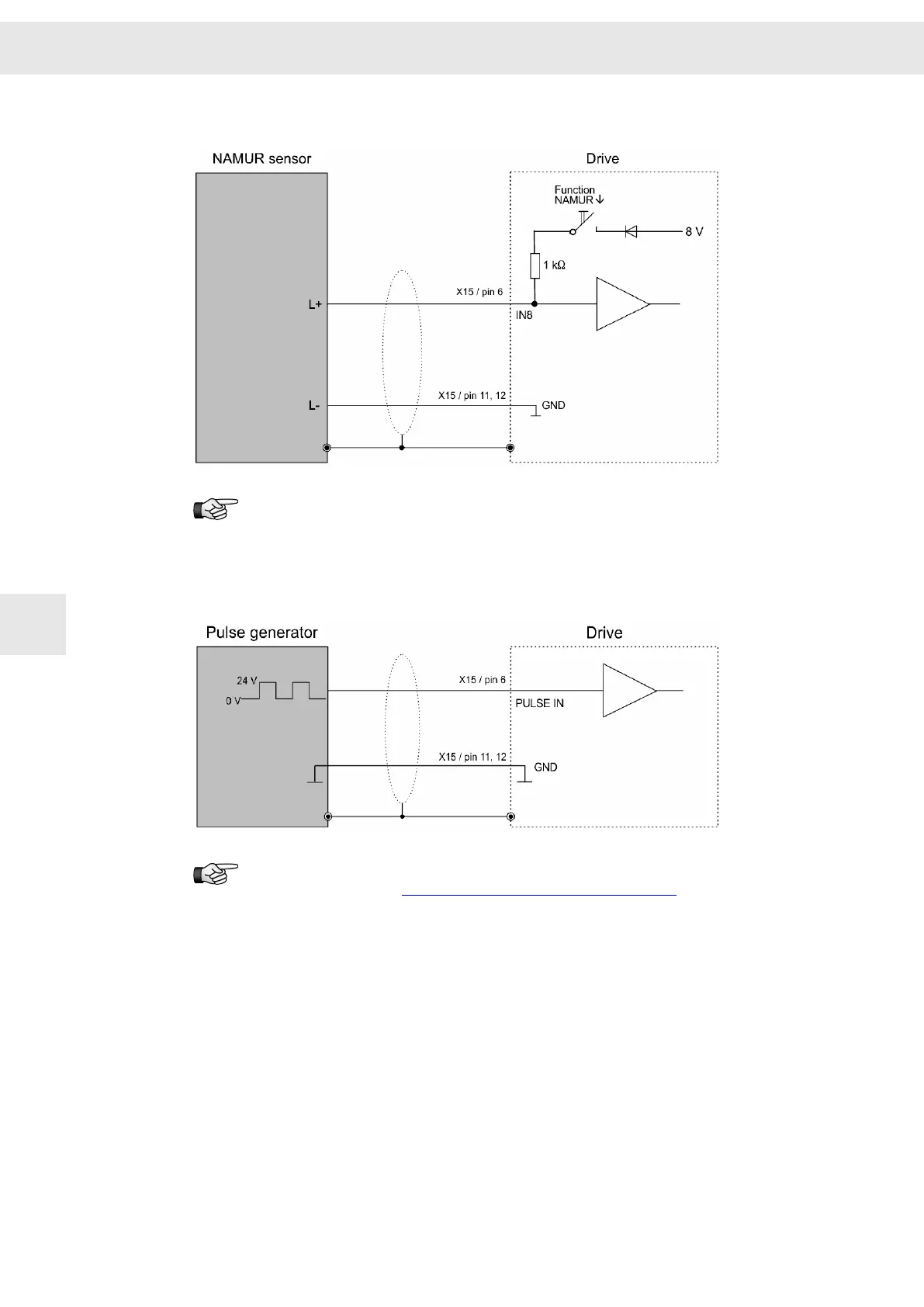

8.4.2 NAMUR sensor

As required by the NAMUR standard the switching threshold for the input is

2.5 mA.

8.4.3 PULSE IN 24 V

A pulse generator for 5 V is to be connected at connector X17 (pin 25), see

connection example section 8.6.11 "PULSE IN 5 V", page 71.

Connection Examples

58 Drive System SD2S - Hardware Description 0362X49xy / 0362129xy
