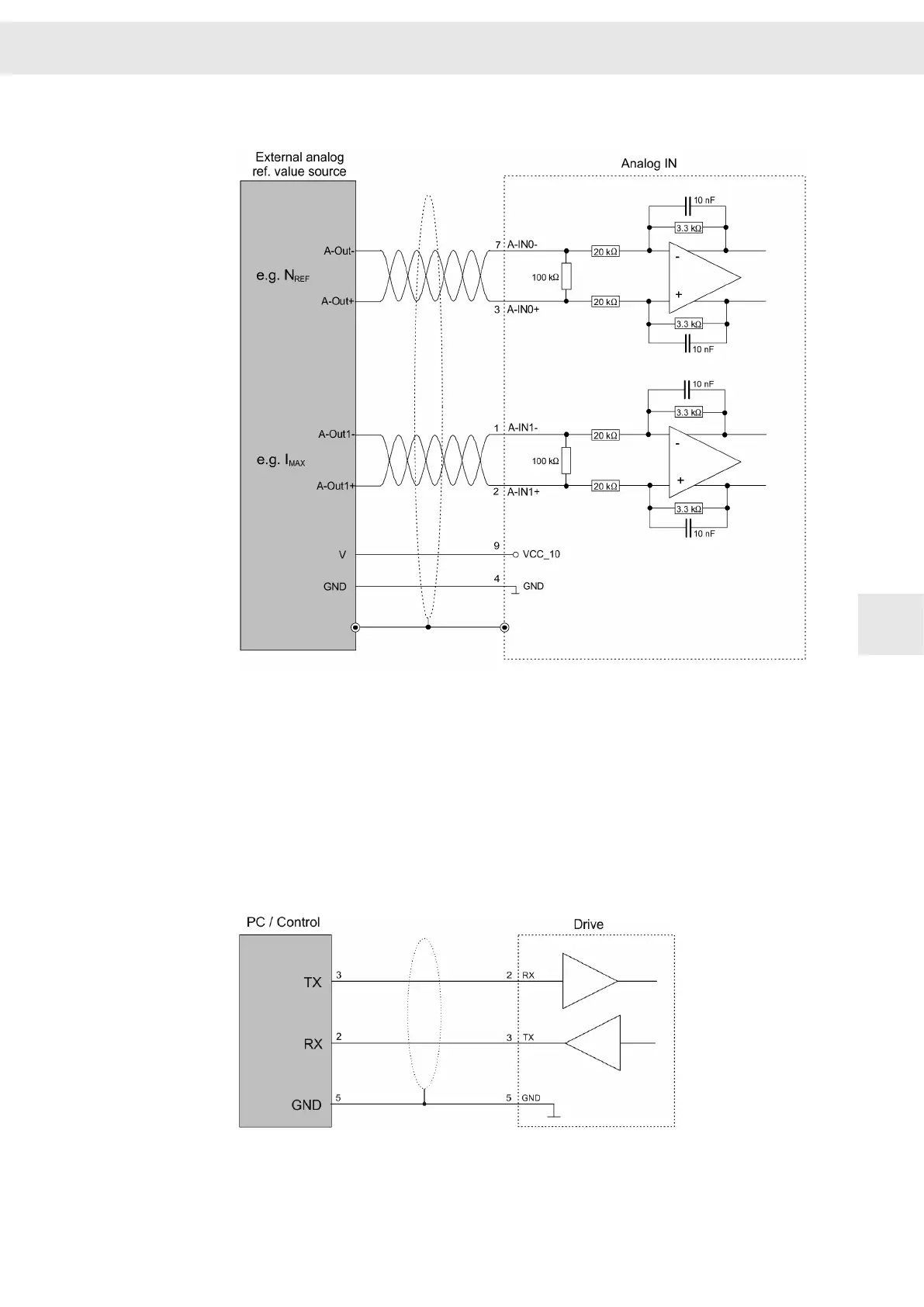

8.7.2 Analog Inputs
Voltage interface with input voltage range: ±10 V
Can also be connected to potentiometer (500 Ω - 5 kΩ)
8.8 X19 – Bus Connection
8.8.1 COM1 – RS232
W
Connection Examples
Drive System SD2S - Hardware Description 0362X49xy / 0362129xy 73
8
