SIEB & MEYER SD2S 0362X49xy - X7 - Encoder Emulation; Safety Circuit (STO) Wiring

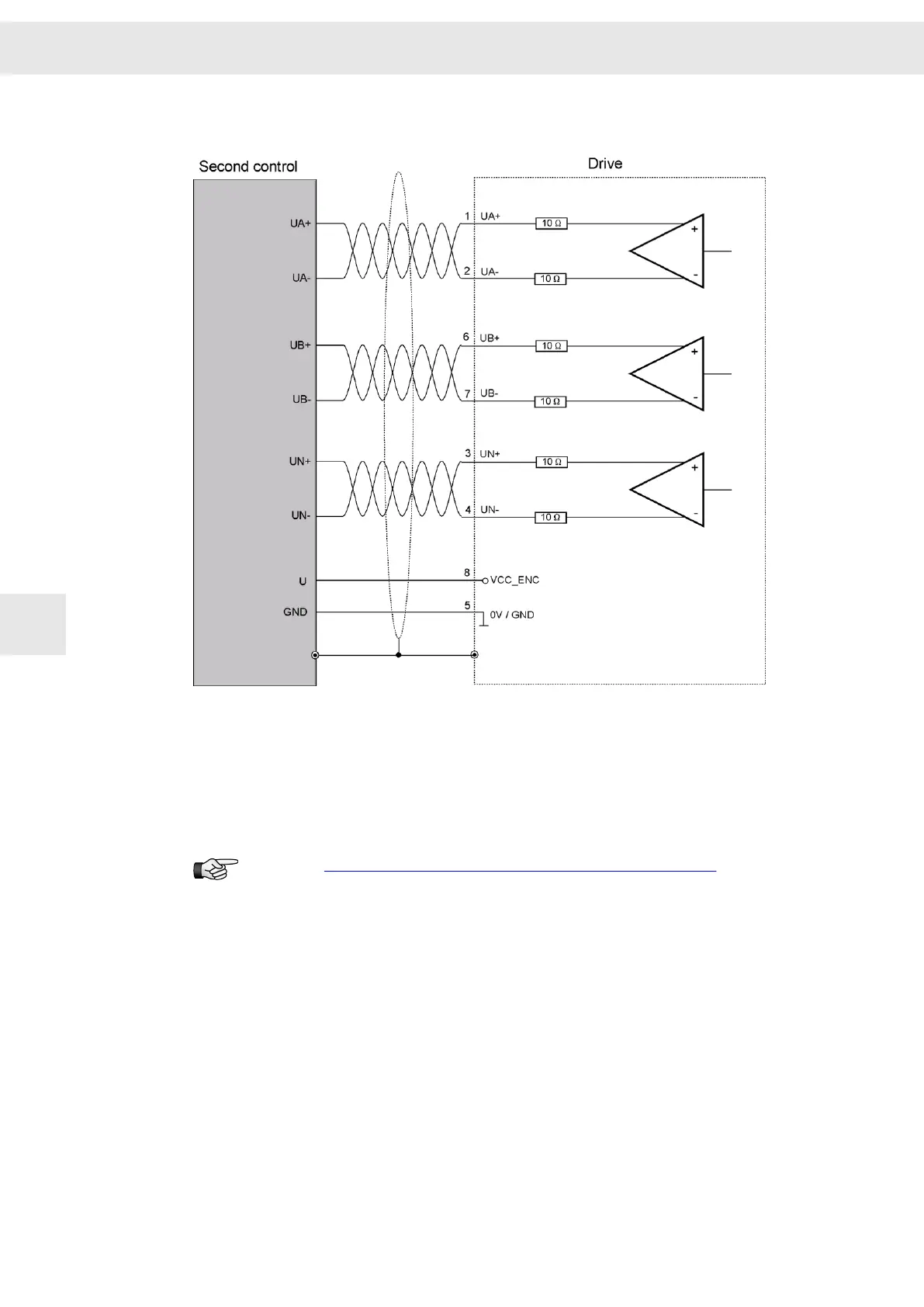

8.2 X7 – Encoder Emulation
The transmission meets the requirements of the standard TIA/EIA-422-B with a voltage
differential of at least. ±0.9 V.
8.3 safety circuit (STO)
See also chapter 12 "Safety Circuit / Restart Lock (STO)", page 95.
Connection Examples
W
56 Drive System SD2S - Hardware Description 0362X49xy / 0362129xy
