The temperature sensor must have an internal resistor between 250 Ω and 2 kΩ.
If no motor temperature sensor is connected, the input must be connected
with GND.
8.7 X18 – Analog Inputs/Outputs
8.7.1 Analog Outputs
Configurable output voltage: 0 to +10 V, max. 1 mA

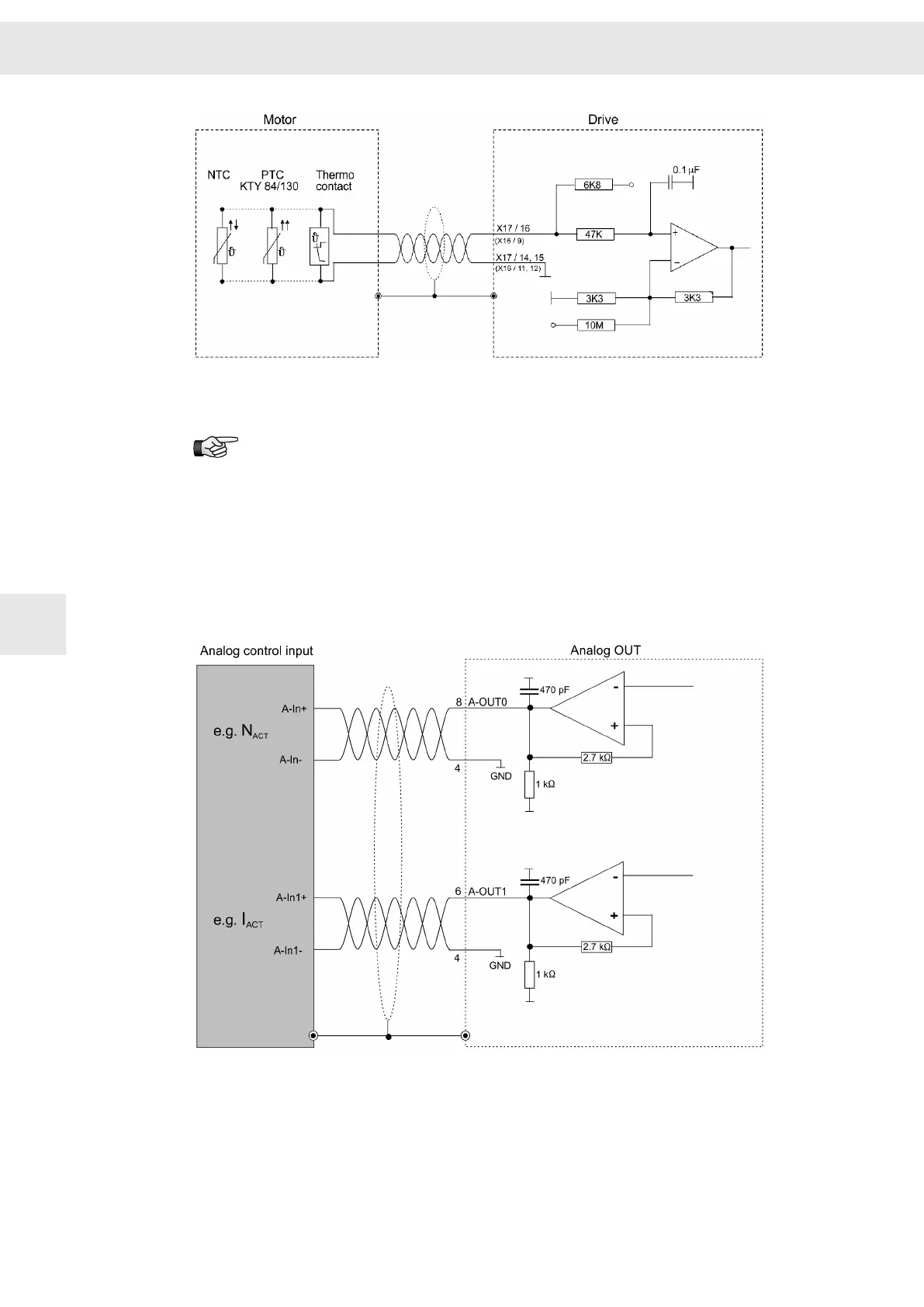

Connection Examples
W
72 Drive System SD2S - Hardware Description 0362X49xy / 0362129xy
