Digital modules
3.25 Digital output module SM 322; DO 8 x DC 48-125 V/1.5 A; (6ES7322-1CF00-0AA0)
S7-300 Automation System Module data
Manual, 08/2006, A5E00105505-04
3-83

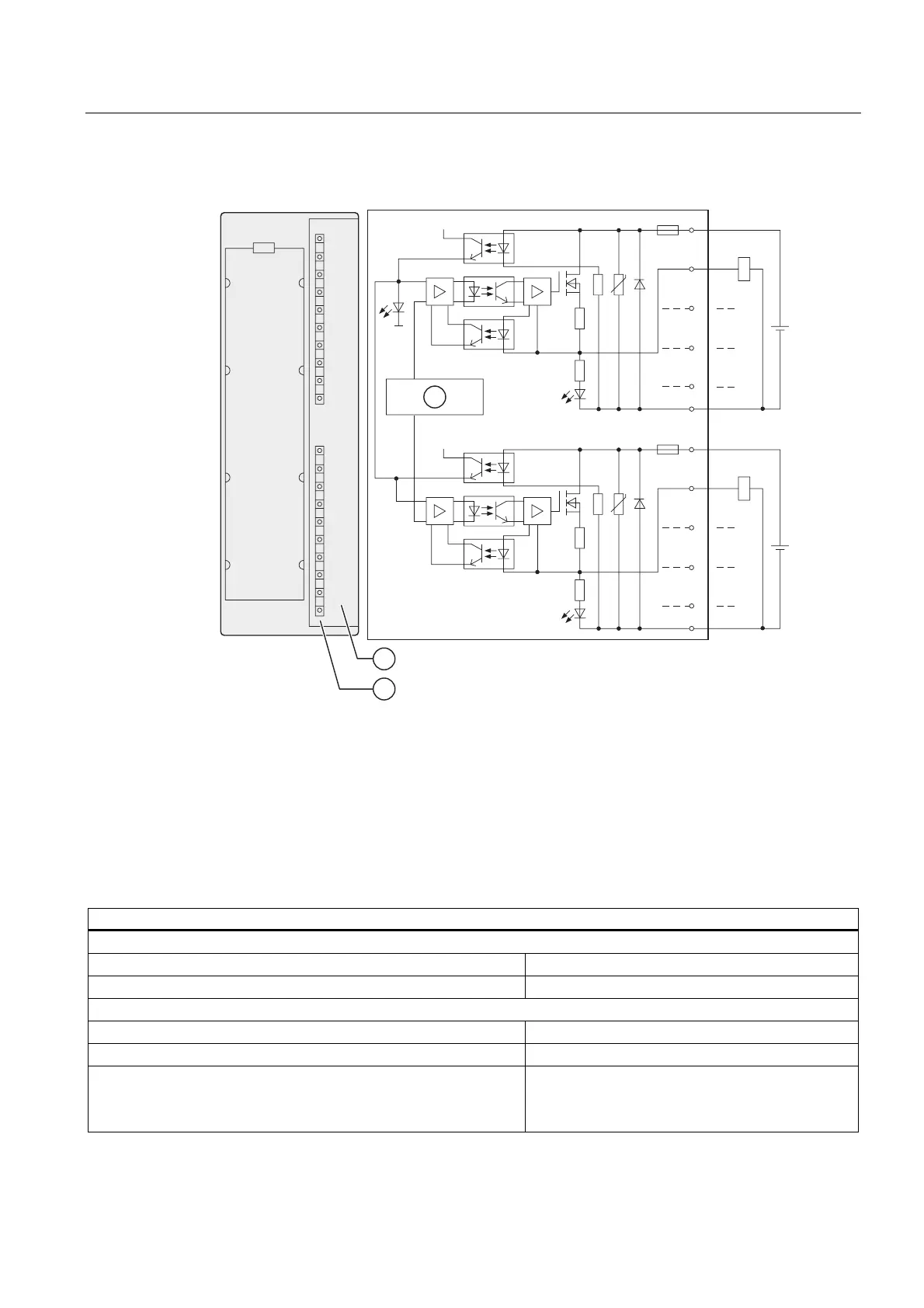

Wiring and block diagrams of SM 322; DO 8 x DC 48-125 V/1.5 A
9
9
/
0
9
6)
6)
/
0
9
① Channel number
② Status display - green
Error LED - red
③ Backplane bus interface
Technical data of M 322; DO 8 x DC 48-125 V/1.5 A
Technical data
Dimensions and weight
Dimensions W x H x D (mm) 40 x 125 x 117
Weight approx. 250 g
Module-specific data
Isochronous mode supported No
Number of outputs 8
Cable length
• unshielded
• shielded
max. 600 m
max. 1000 m
