Power supply modules
2.4 PS 307; 10 A power supply module; (6ES7307-1KA00-0AA0)
S7-300 Automation System Module data
Manual, 08/2006, A5E00105505-04
2-13
2.4 2.4 PS 307; 10 A power supply module; (6ES7307-1KA00-0AA0)
Order number
6ES7307-1KA00-0AA0
Properties
Properties of the PS 307; 10 A power supply module:
● Output current 10 A
● Output voltage 24 VDC; short circuit-proof, open circuit-proof
● Connection to singlephase AC mains
(rated input voltage 120/230 VAC, 50/60 Hz)
● Safety isolation to EN 60 950
● May be used as load power supply

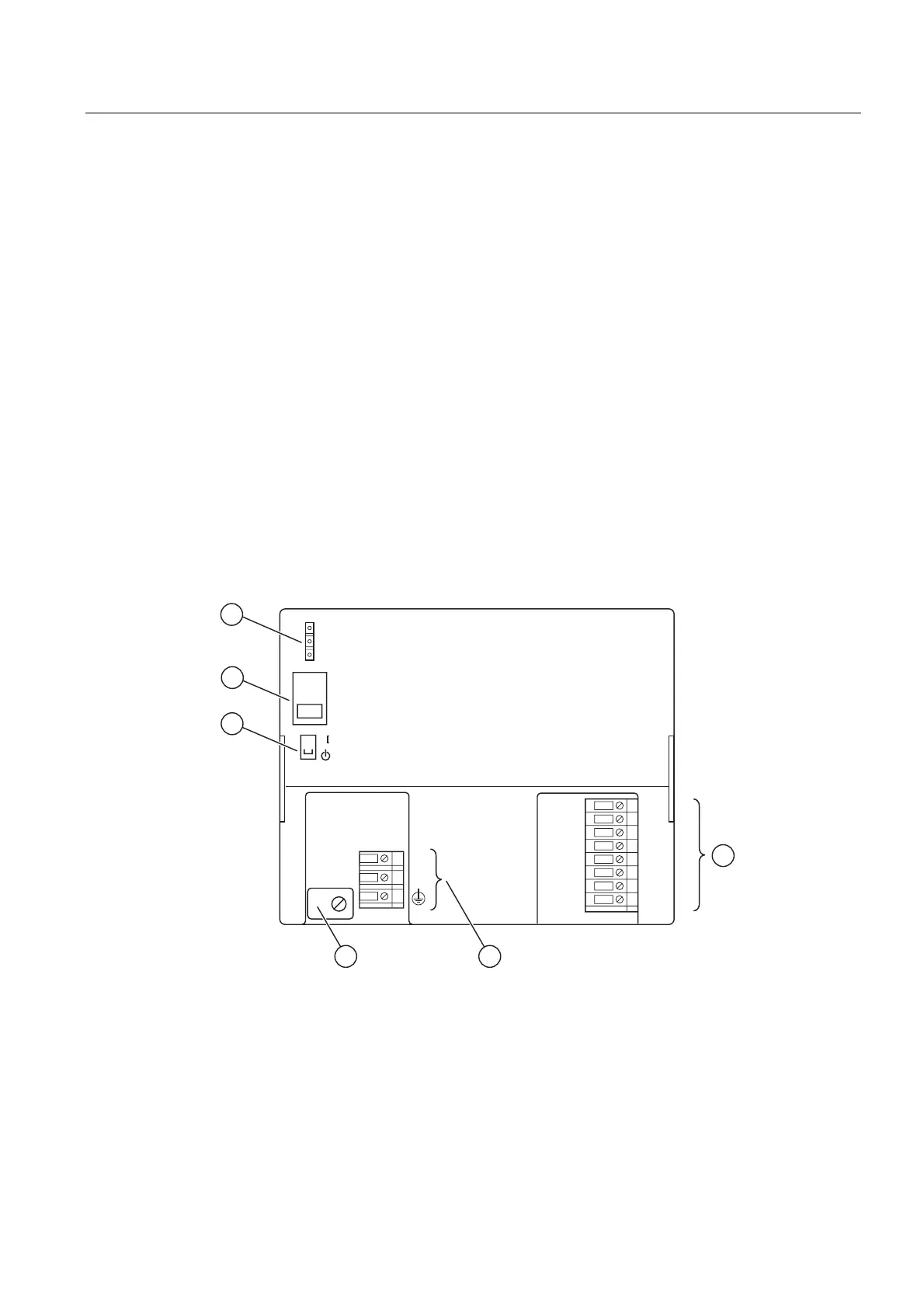

Wiring diagram of PS 307; 10 A
/
1
/
0
/
0
/
0
'&9
9
/
0
① "24 VDC output voltage present" display
② Terminals for 24 VDC output voltage
③ Mains and protective conductor terminals
④ Strain-relief
⑤ 24 VDC On/Off switch
⑥ Mains selector switch
