Dimensional drawings
C.1 Dimensional drawings of the mounting rails
S7-300 Automation System Module data
C-2 Manual, 08/2006, A5E00105505-04
C.1 C.1 Dimensional drawings of the mounting rails
483 mm standard rail
The figure below shows the dimensional drawing of the 483 mm standard rail.
15
24
19
7
35
11
8,7
482,6
163,9
155

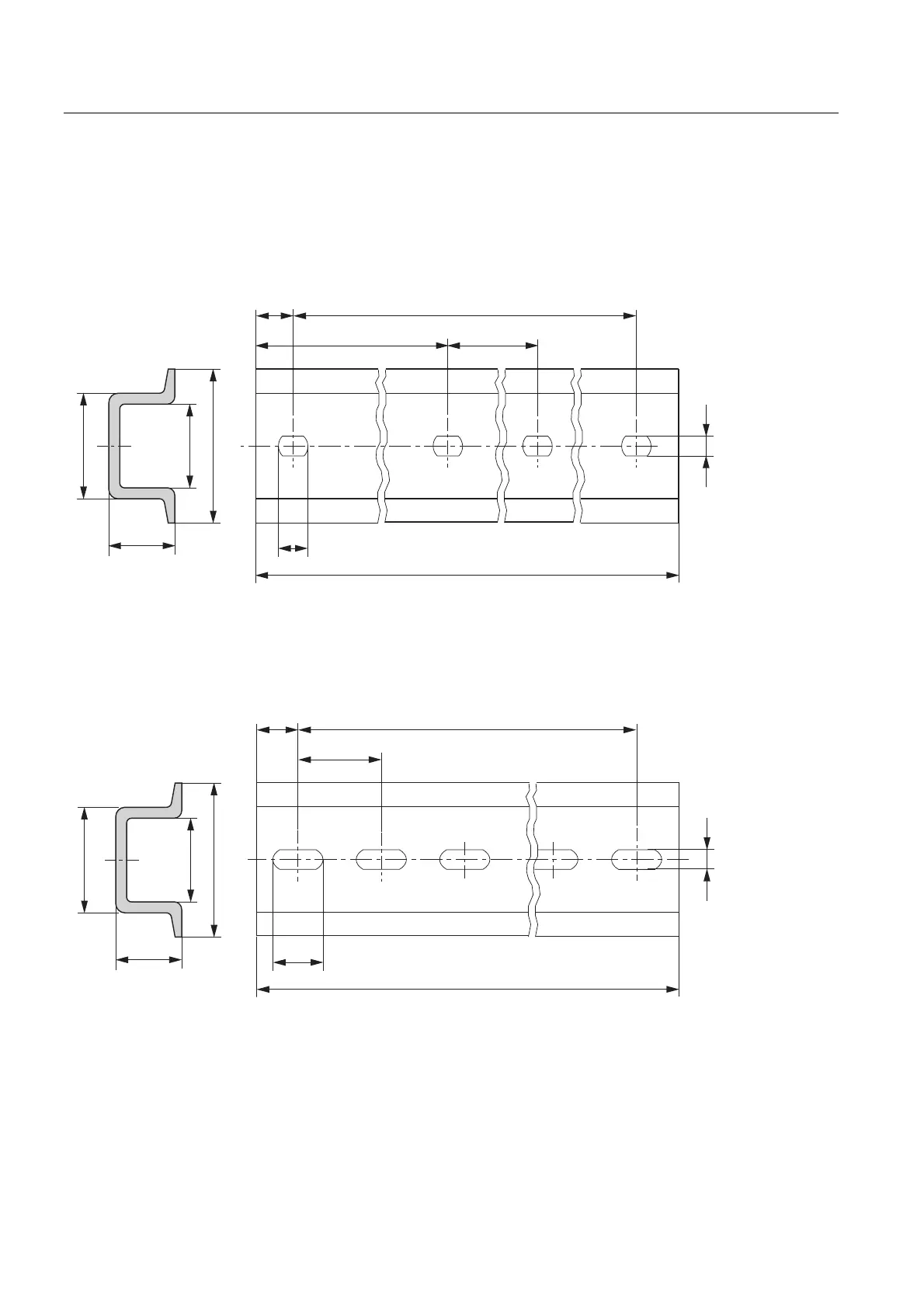

Figure C-1 Dimensional drawing of the 483 mm standard rail
Standard mounting rail 530 mm
The figure below shows the dimensional drawing of the 530 mm standard rail.
[
Figure C-2 Dimensional drawing of the 530 mm standard rail
Standard mounting rail 830 mm
The figure below shows the dimensional drawing of the 830 mm standard rail.
