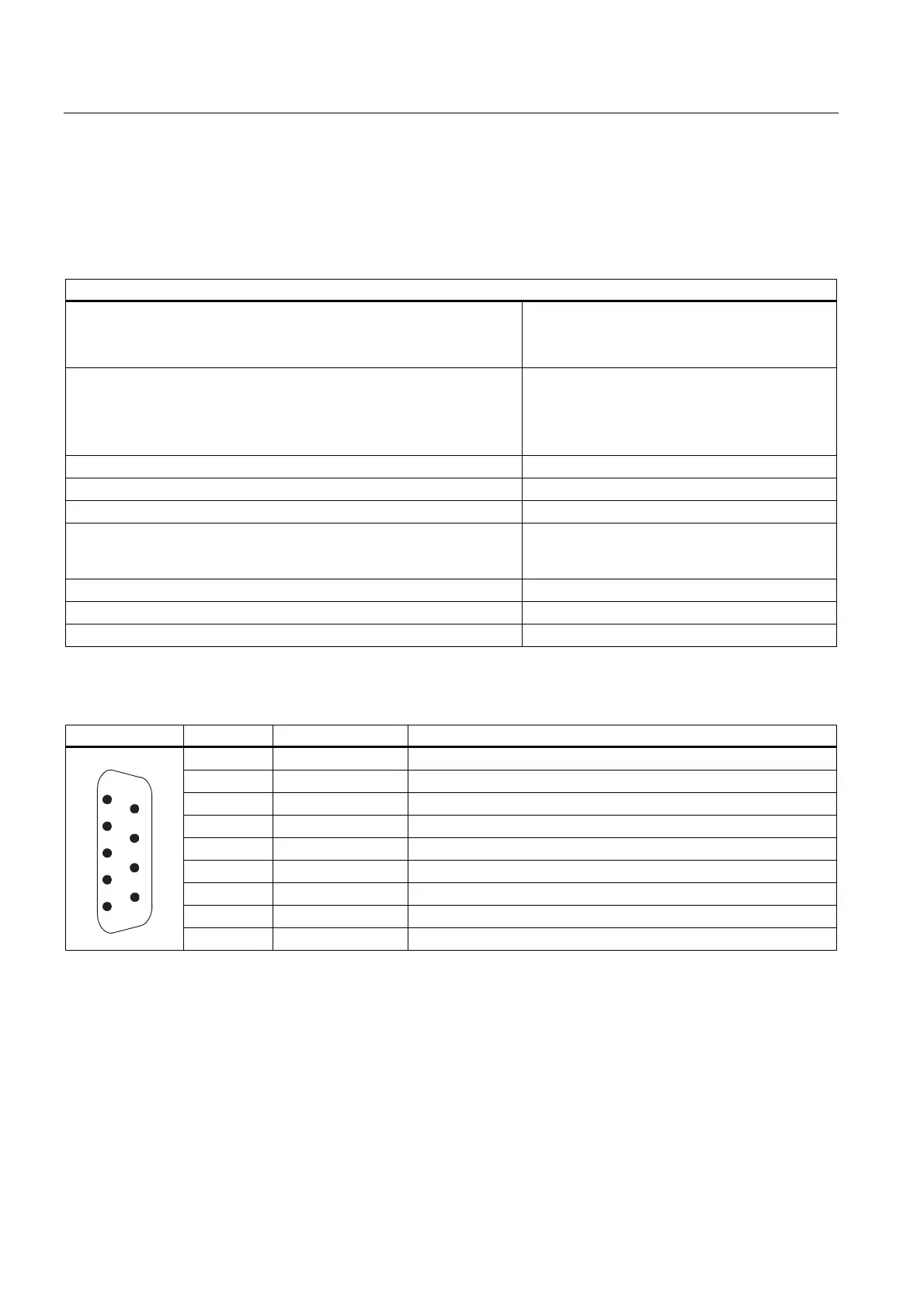

RS 485 Repeater
9.4 Technical data
S7-300 Automation System Module data
9-6 Manual, 08/2006, A5E00105505-04
9.4 9.4 Technical data
Technical data the RS 485 Repeater
Technical data
Power supply
Rated voltage
Ripple
24 VDC
20.4 VDC to 28.8 VDC
Current consumption at rated voltage
without load on PG/OP socket
Load on PG/OP socket (5 V/90 mA)
Load on PG/OP socket (24 V/100 mA)
100 mA
130 mA
200 mA
Electrical isolation Yes, 500 VAC
Connection of fiber-optic conductors Yes, via repeater adapters
Redundancy mode No
Transmission rate (automatically detected by the repeater) 9.6 kbps, 19.2 kbps, 45.45 kbps, 93.75 kbps,
187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps,
6 Mbps, 12 Mbps
Degree of protection IP 20
Dimensions W x H x D (mm) 45 x 128 x 67
Weight (includes packaging) 350 g
Pin assignment of the sub-D connector (PG/OP socket)
View Pin No. Signal name Designation
1 - -
2 M24V Ground 24 V
3 RxD/TxD-P Data line B
4 RTS Request To Send
5 M5V2 Data reference potential (from station)
6 P5V2 Supply plus (from station)
7 P24V 24 V
8 RxD/TxD-N Data line A
9 - -
