Digital modules
3.27 Digital output module SM 322; DO 8 x AC 120/230 V/2 A ISOL (6ES7322-5FF00-0AB0)
S7-300 Automation System Module data
Manual, 08/2006, A5E00105505-04
3-89

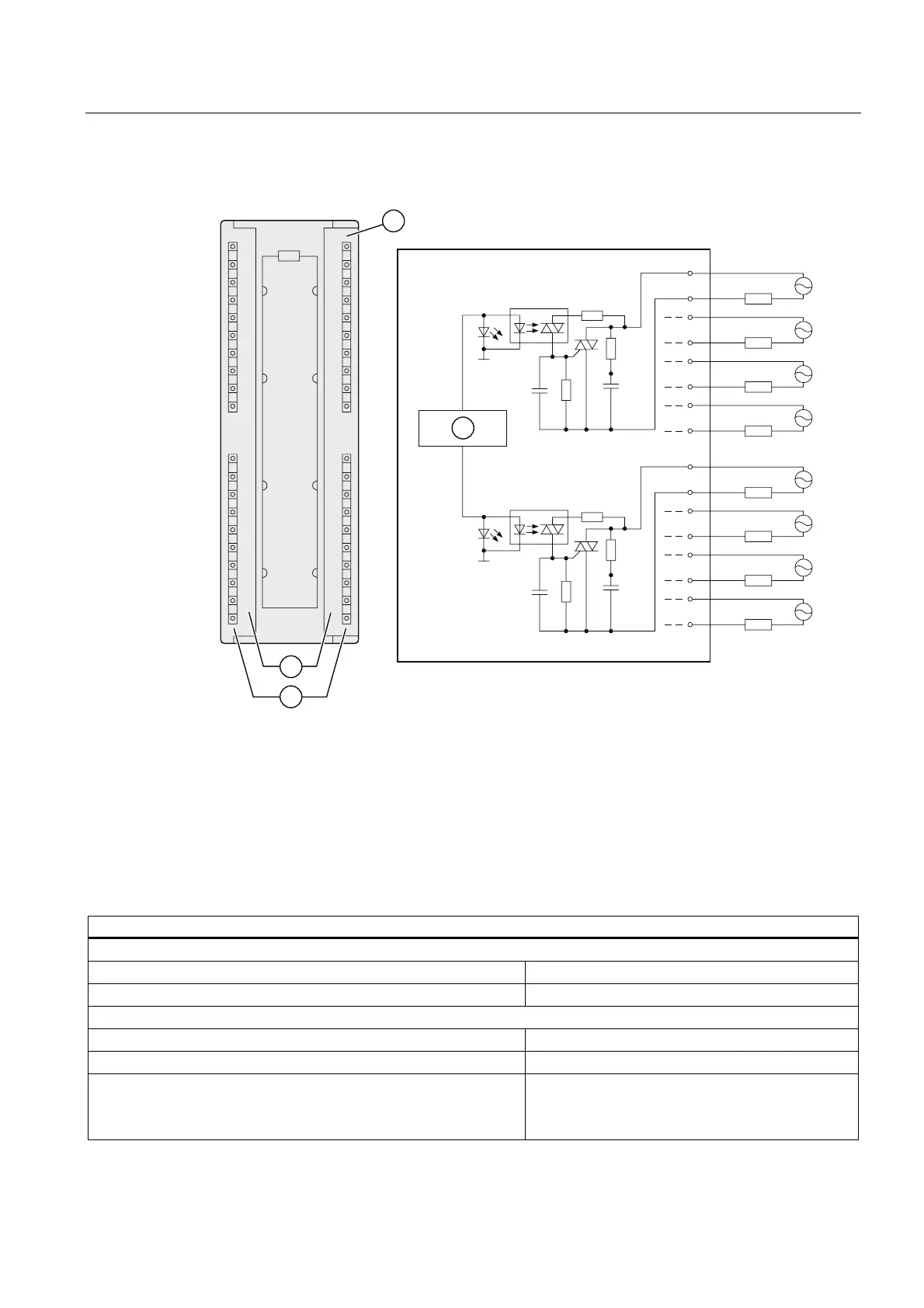

Wiring and block diagrams of SM 322; DO 8 x AC 120/230 V/2 A ISOL
0
/
6)
/
/
/
0
/
/
/
/
① Group error display - red
② Backplane bus interface
③ Channel number
④ Status display - green
Technical data of SM 322; DO 8 x AC 120/230 V/2 A ISOL
Technical data
Dimensions and weight
Dimensions W x H x D 40 x 125 x 117
Weight approx. 275 g
Module-specific data
Isochronous mode supported No
Number of outputs 8
Cable length
• unshielded
• shielded
max. 600 m
max. 1000 m
