Digital modules
3.34 Digital IO module SM 327; DI 8/DO 8 x DC 24 V/0.5 A; programmable (6ES7327-1BH00-0AB0)
S7-300 Automation System Module data
Manual, 08/2006, A5E00105505-04
3-121

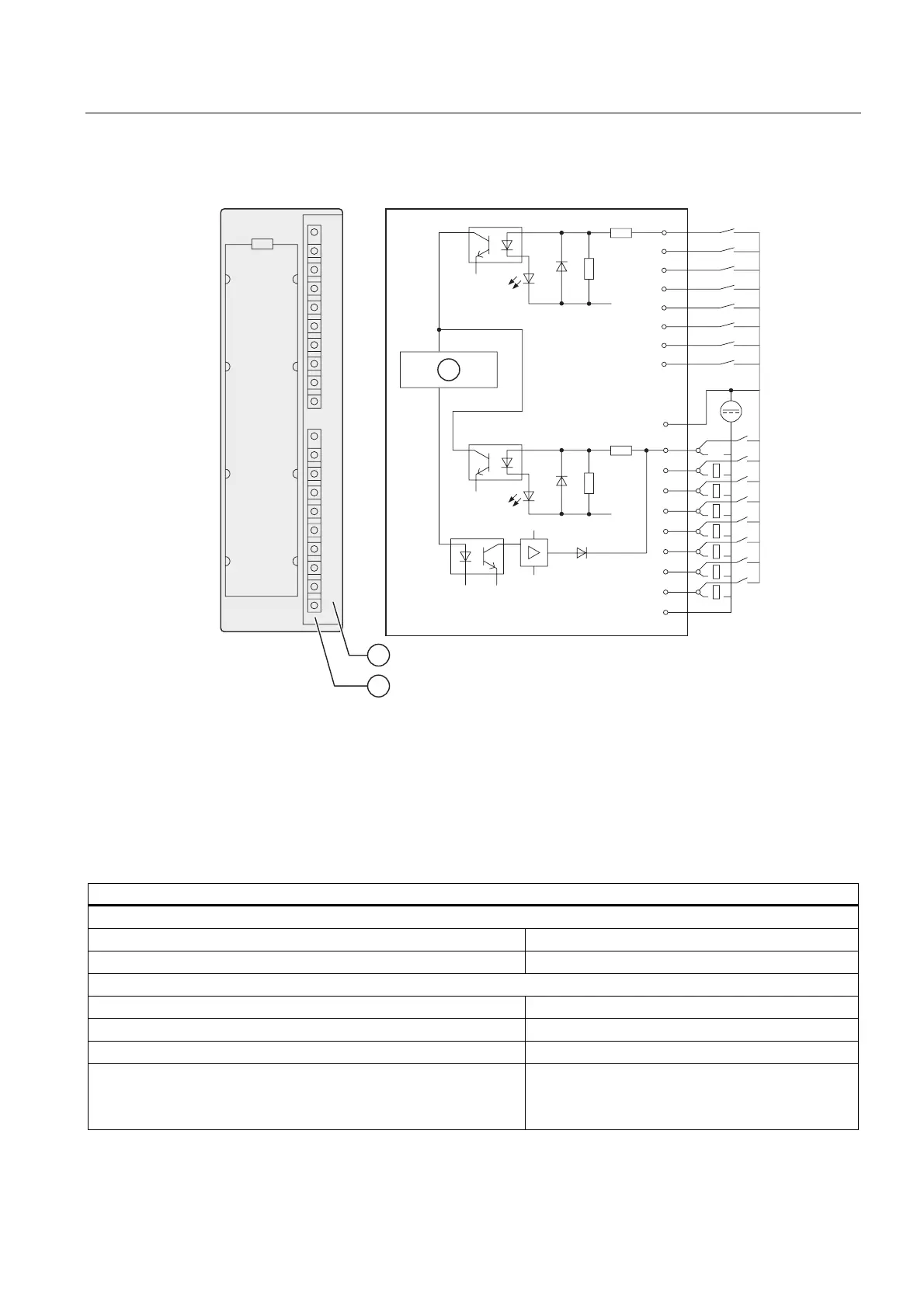

Wiring and block diagram of SM 327; DI 8/DO 8 x DC 24 V/0.5 A, programmable
0
/
0
/
0
0
① Channel number
② Status display - green
③ Backplane bus interface
Technical data of SM 327; DI 8/DO 8 x DC 24 V/0.5 A, programmable
Technical data
Dimensions and weight
Dimensions W x H x D (mm) 40 x 125 x 120
Weight approx. 200 g
Module-specific data
Isochronous mode supported No
Number of inputs 8 digital
Number of inputs/outputs 8, can be programmed separately
Cable length
• unshielded
• shielded
max. 600 m
max. 1000 m
