Analog modules
6.14 Analog output module SM 332; AO 2 x 12 Bit; (6ES7332-5HB01-0AB0)
S7-300 Automation System Module data
Manual, 08/2006, A5E00105505-04
6-125
Connection for current output
&+
&+
6)
4,
0$1$
4,
0$1$
/
0
9
'&

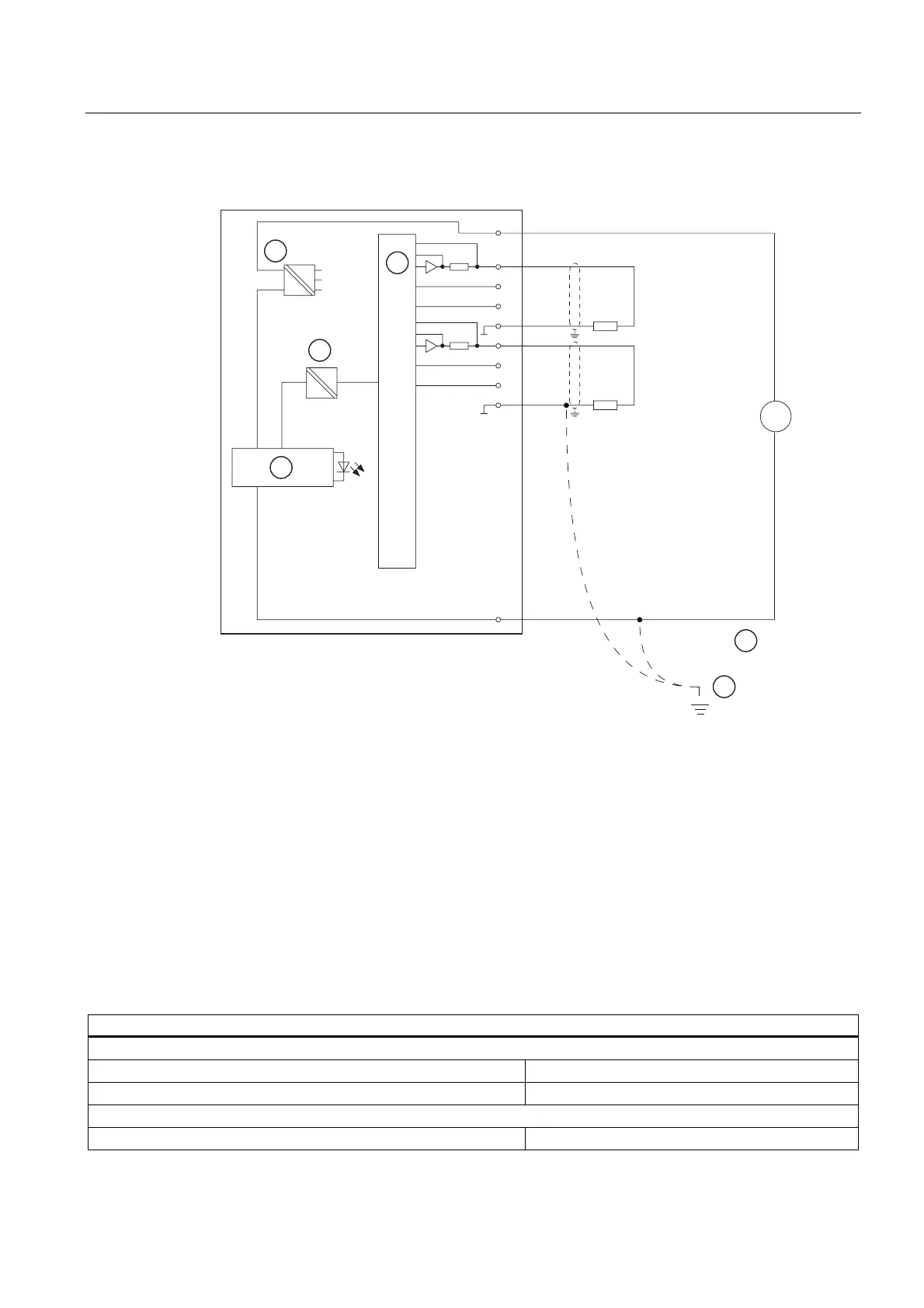

Figure 6-40 Wiring and block diagrams
① Potential compensation
② Function ground/earth
③ Internal supply
④ Electrical isolation
⑤ Backplane bus interface
⑥ Analog-to-Digital Converter (ADC)
Technical data
Technical data
Dimensions and weight
Dimensions W x H x D (mm) 40 x 125 x 117
Weight approx. 220 g
Module-specific data
Isochronous mode supported No
