Other signal modules
7.2 Simulator module SM 374; IN/OUT 16; (6ES7374-2XH01-0AA0)
S7-300 Automation System Module data
Manual, 08/2006, A5E00105505-04
7-3

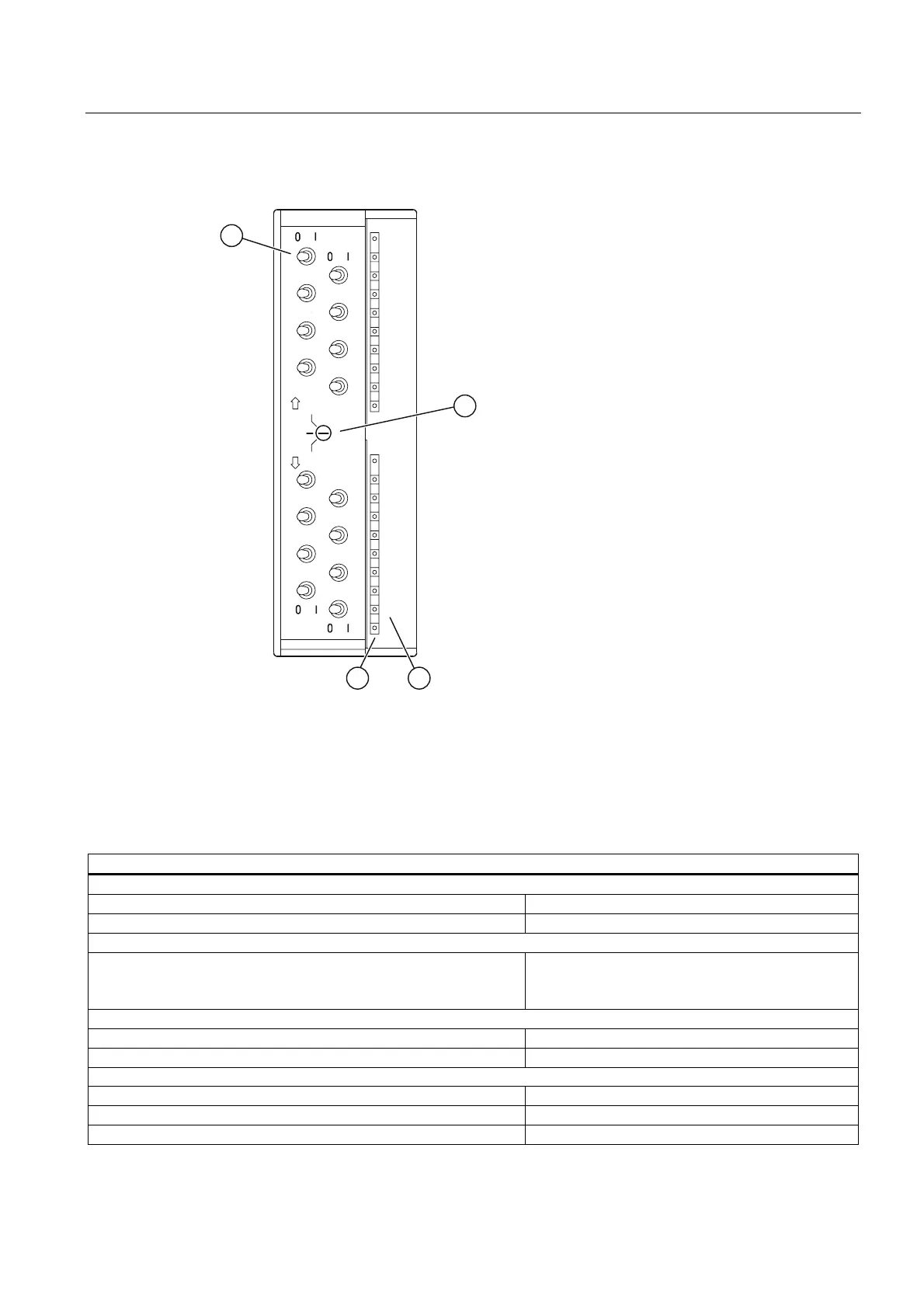

Module view (without front panel door)
[
2XWSXW
[
,QSXW
[2XWSXW
[,QSXW
① Input status selector switch
② Function selector switch
③ Channel number
④ Status displays - green
Technical data of SM 374; IN/OUT 16
Technical data
Dimensions and weight
Dimensions W x H x D (mm) 40 x 125 x 110
Weight approx. 190 g
Module-specific data
Optional simulation of 16 inputs
16 outputs
8 inputs and 8 outputs
Voltages, currents, electrical potentials
Current consumption from the backplane bus max. 80 mA
Power loss of the module typ. 0.35 W
Status, interrupts, diagnostics
Status display yes, green LED for each channel
Interrupts No
Diagnostics functions No
