Structure and function of the FT2080
3
23
Building Technologies A6V10380629_en--_a
Fire Safety 2015-09-10
Tab button
1
4
3
Tab button
1 Counter 3 Designation
2 Star symbol 4 LED
Element Function
Counter (1) l Display indicating that there are entries in the list
l Display indicating the number of entries in the list
Star symbol (2) Displayed when the event list contains at least one unacknowledged entry
Designation (3) Designation of event category on tab
LED (4) l Displayed when the event list contains entries
l Displayed in the base color of the list entries
l If an event list contains a number of list entries, the LED is displayed in the
color with the highest priority.

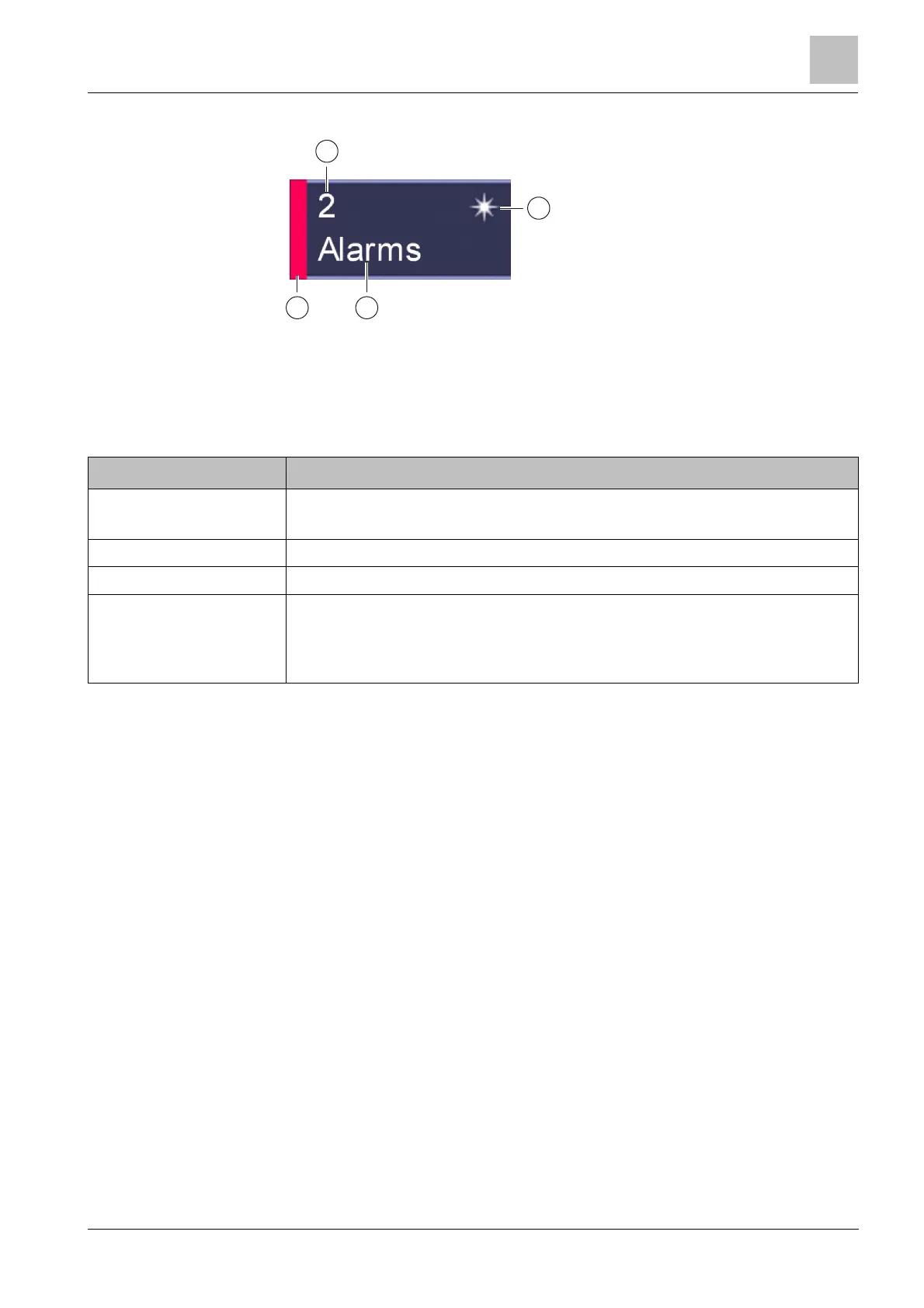

Elements of a tab button
If there are no entries in the list, the tab buttons are grayed out and cannot be
used.
