Structure and function of the FT2080
3
19
Building Technologies A6V10380629_en--_a
Fire Safety 2015-09-10
3.3.1 Outer pane
1
6

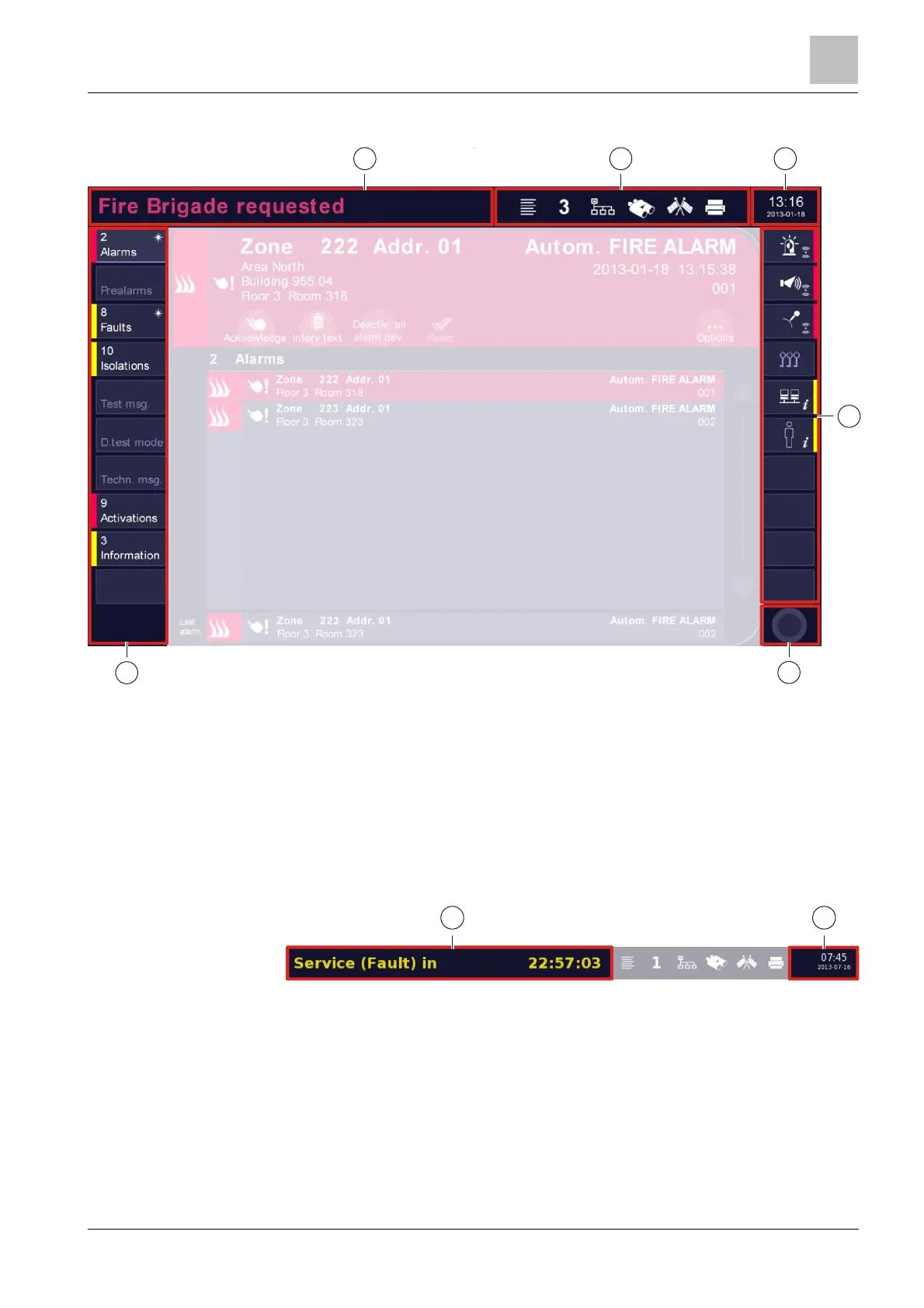

Outer pane
1 General status line (GSL) 4 System tabs (ST)
2 General toolbar (GTB) 5 Indicator for command execution (ICE)
3 System time (part of GSL) 6 List tabs (LT)
3.3.1.1 General status line (GSL)
1
General status line (GSL)
1 Status information 2 System time
The general status line (GSL) displays the system time and the status information
of the fire detection installation. The system time displays the current time of day
and the date. The table below lists the possible items of status information.
