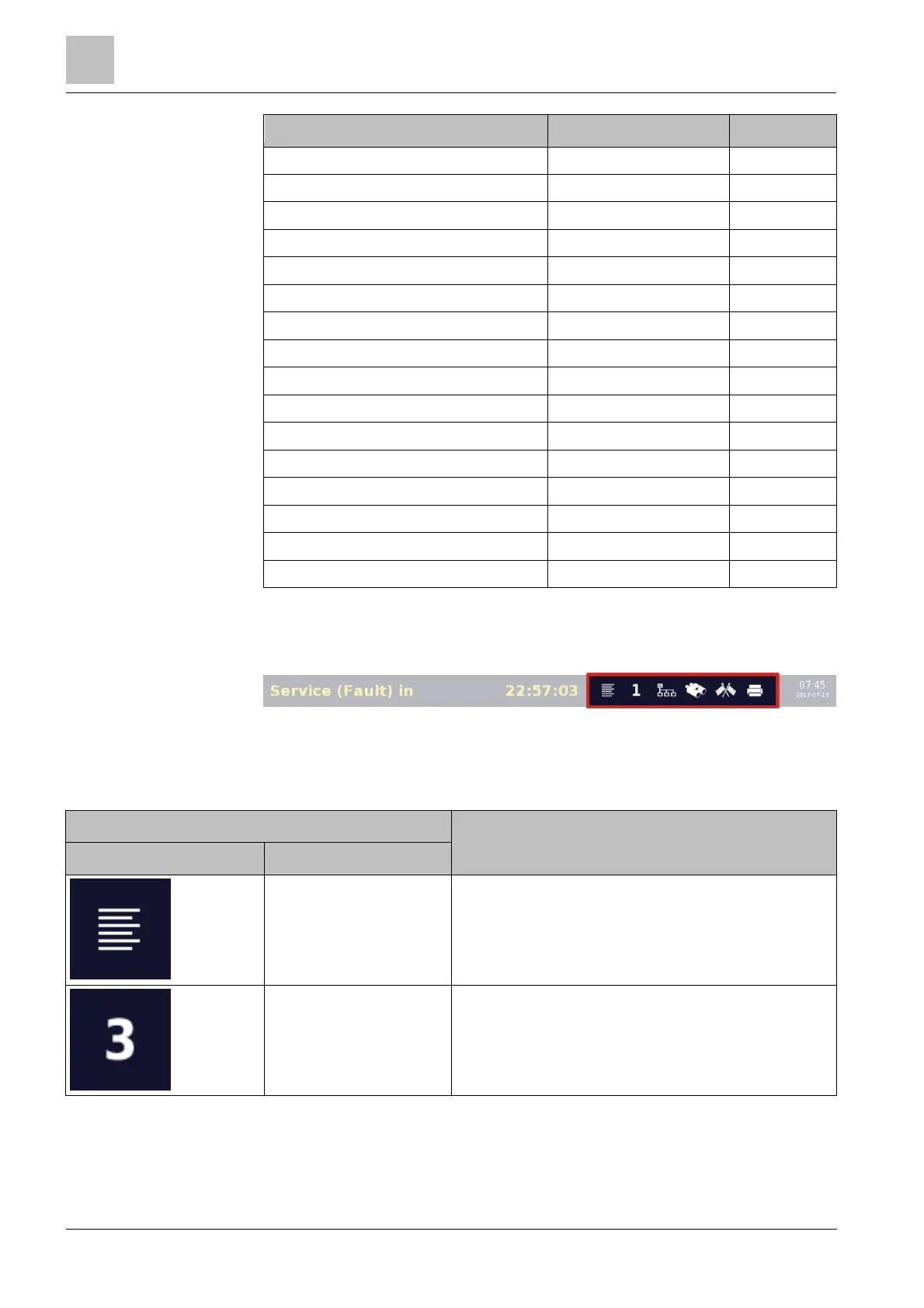

3
Structure and function of the FT2080
Touch screen
20
Building Technologies A6V10380629_en--_a
Fire Safety 2015-09-10
Text Color Display
Call Fire Brigade ! Light red / dark red Flashing
Fire Brigade in __:__ Red Lit
Fire Brigade in (hh:mm:ss) Red Lit
Call Fire Brigade in (hh:mm:ss) Light red / dark red Flashing
Fire Brigade requested Red Lit
Call service ! Light yellow / dark yellow Flashing
Remote transmission activated Yellow Lit
Waiting for confirmation RT Yellow Lit
Remote transmission in Red Lit
Service (Fault) in (hh:mm:ss) Yellow Lit
Service (Isolation) in (hh:mm:ss) Yellow Lit
Service (Test) in (hh:mm:ss) Yellow Lit
Service (Technical msg.) in (hh:mm:ss) Blue Lit
Service (Activation) in (hh:mm:ss) Red Lit
Service (Information) in (hh:mm:ss) Yellow Lit
Intervention in (hh:mm:ss) Gray Lit
3.3.1.2 General toolbar (GTB)
General toolbar (GTB)
The table below lists the controls on the general toolbar (GTB). The 'Login/logout'
button is both a control and an indicator.
Button 'Function'
Symbol Designation
'Main menu' l Open main menu
'Login/logout' l Open dialog window for entering PIN
l Display current 'Access level'
