Fundamentals of operation
4
83
Building Technologies A6V10380629_en--_a
Fire Safety 2015-09-10
4.4 Opening menus
To open the menus, press the touch-sensitive area. The touch-sensitive areas are
depicted in the following example as well as in the instructions given.

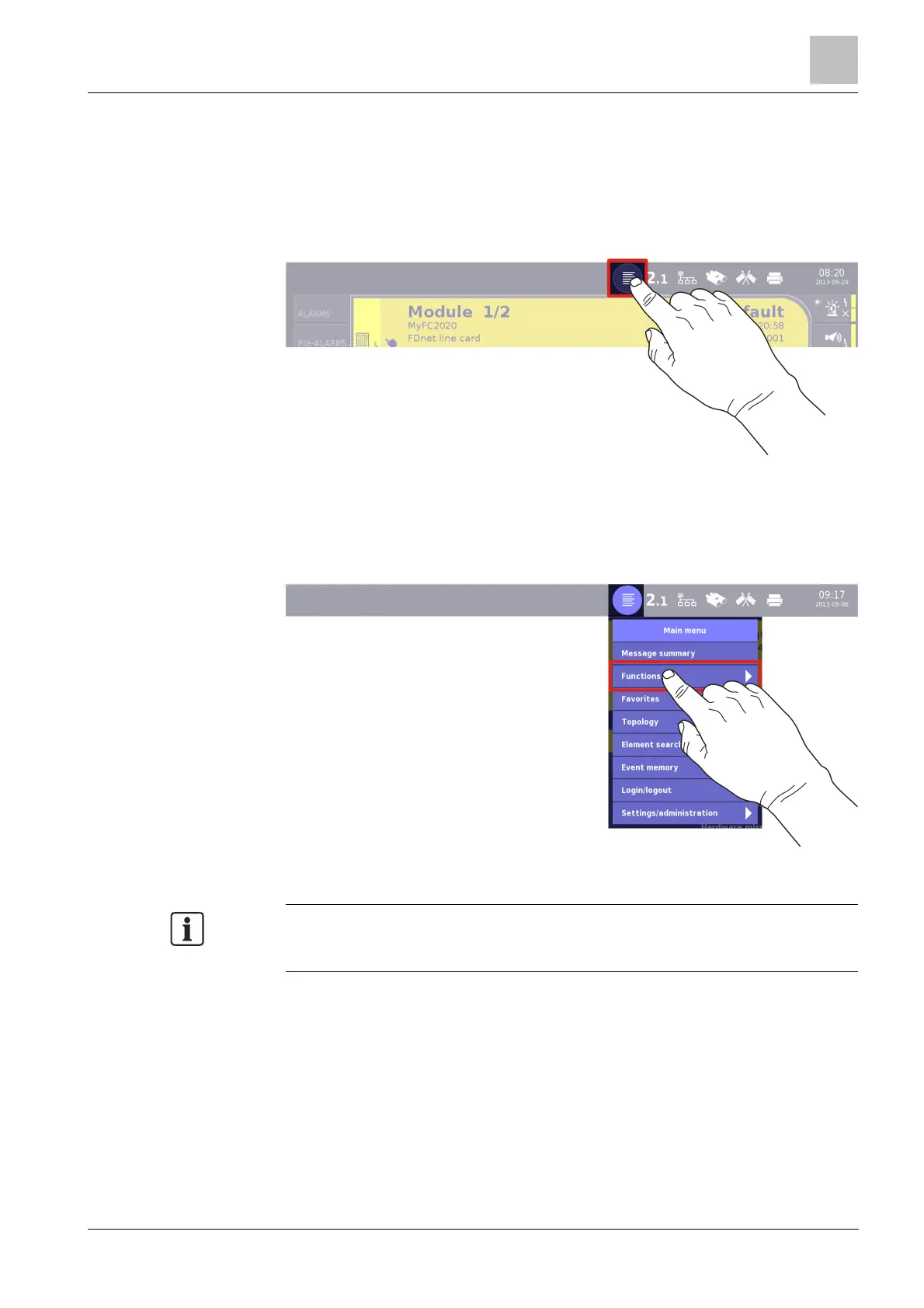

Example: Opening 'Main menu' and 'Functions' menu
1. Press 'Main menu' on the general toolbar (GTB).
a The PIN entry dialog window opens.
2. Enter your PIN via the number pad and press 'Enter'.
– Alternatively: Press 'Enter' without entering a PIN.
a The 'Main menu' opens.
3. Select the 'Functions' menu item.
a The 'Functions' menu is displayed.
' only includes the menu items that are
available without logging-in. To view an extended menu list in the 'Main menu',
you need to log in on a corresponding access level.
