Siemens LME71 Series

105/116
Smart Infrastructure Basic Documentation LME7... CC1P7105en
15 Operation via internal LED 24.07.2020
A
>3 s
Alternately

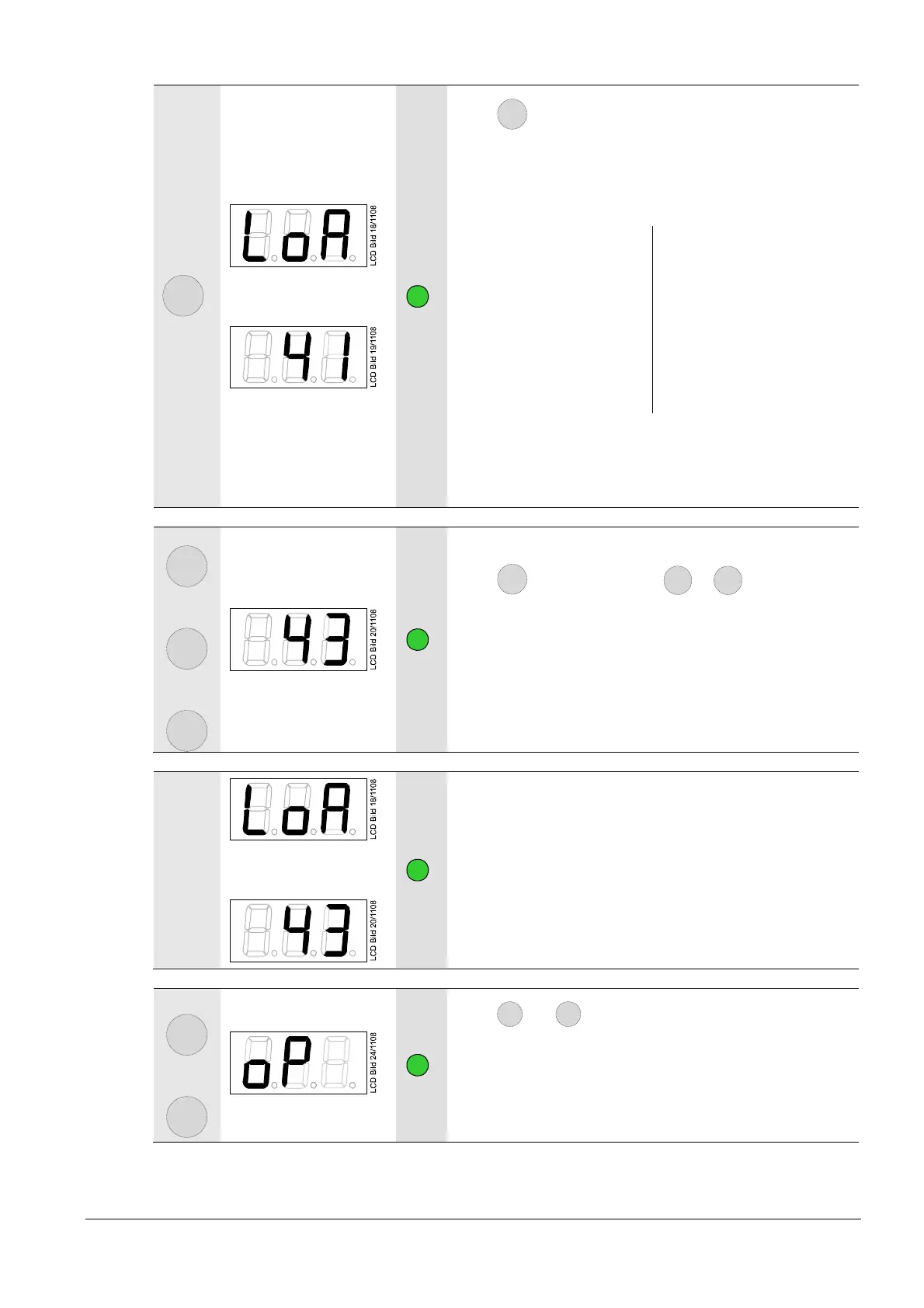

Press
A
for >3 seconds to display alternately LoA and
41.
The relative value 41 of the current position or current
speed is displayed.
Actuator position 0°
0  potentiometer value =
0% display
Actuator position high-fire
>0°
<90° = potentiometer value
>0  <1000  = 100%
display
Current speed
0 rpm = 0
% display
Current speed corresponds
to the rated load speed =
100% display
The actual value (example 41%) is displayed and the signal
lamp blinks green.
Example: Position of actuator or the current speed 41%
(based on range between high-fire and 0° or 0 rpm)
A
and
+
or
-
Press
A
simultaneously with
+
or
-
to adjust the
actuator position or the fan speed between low-fire (x%) and
high-fire (100%).
Release the buttons when the required position or speed is
reached.
Signal lamp blinks s green.
Example: Value 43
Alternately
Display shows alternately LoA and 43.
Signal lamp blinks green.
Example: Required position of actuator or current speed
43%
-
and
+
Press
-
and
+
simultaneously (Escape) to return to
normal operation.
Display: oP
When manual adjustment is completed, the actuator or the
PWM fan returns to the analog preset output!
