Siemens MICROMASTER 420 User Manual

Issue 07/04 2 Installation
MICROMASTER 420 Operating Instructions
6SE6400-5AA00-0BP0
23
2.1 General
Installation after a Period of Storage
Following a prolonged period of storage, you must reform the capacitors in the
inverter. The requirements are listed below.
Storage period less than 1 year:
No action necessary
Storage period 1 to 2 years Prior to energizing, connect to
voltage for one hour
Storage period 2 to 3 years Prior to energizing, form
according to the curve
Storage period 3 and more years Prior to energizing, form
according to the curve
100
50
75
0,5 1
Voltage
[%]
Time t [h]
2468

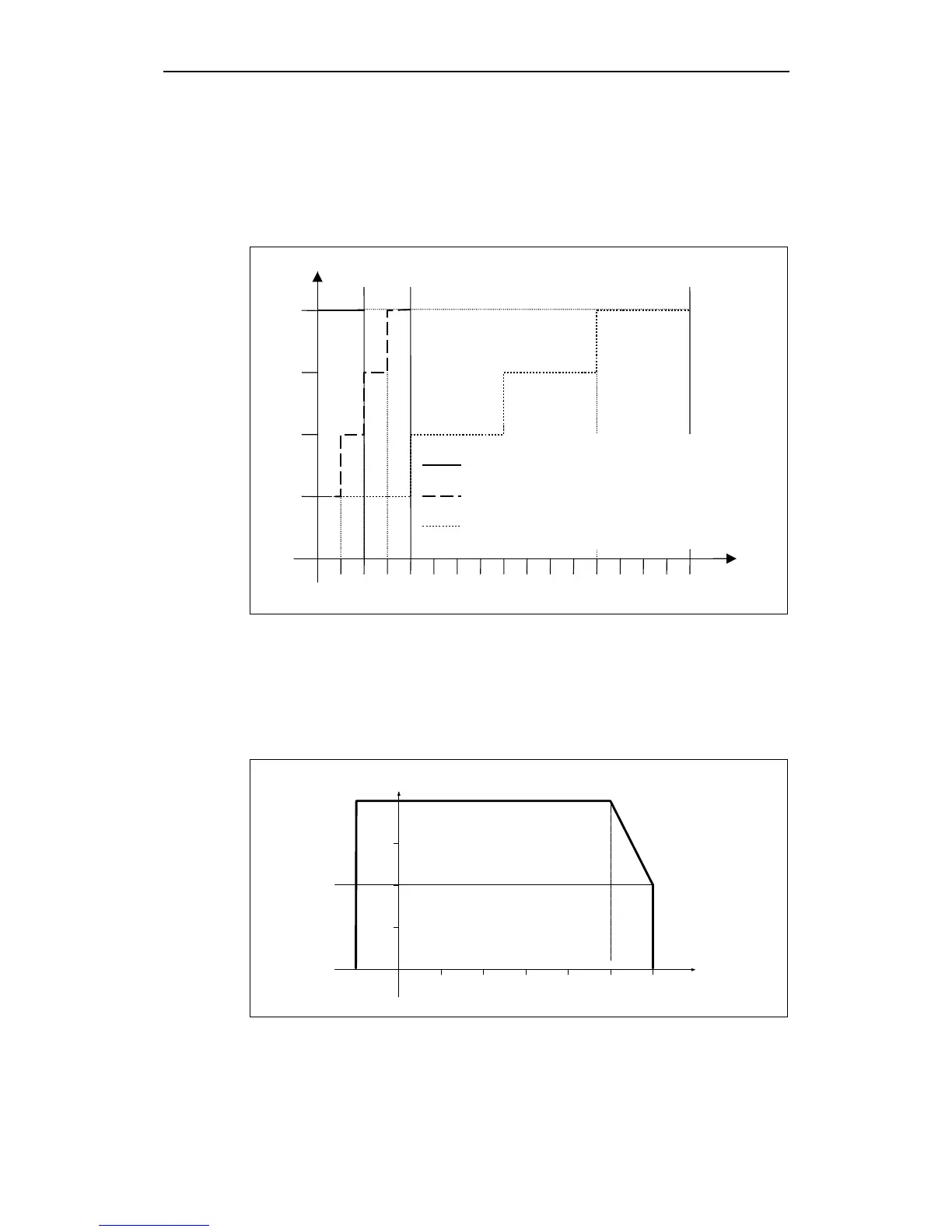

Fig. 2-1 Forming
2.2 Ambient operating conditions
Temperature
0
20 30
10
40
[°C]
Operating temperature
-10
50
60
75
50
25
100
[%]
Permissible output current
Fig. 2-2 Ambient operating temperature

Siemens MICROMASTER 420 Specifications

General

Power Range	0.12 kW to 11 kW
Output Voltage	0 to input voltage
Input Frequency	47 Hz to 63 Hz
Output Frequency	0 Hz to 650 Hz
Overload Capacity	150% for 60 seconds
Enclosure Rating	IP20
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Control Type	V/f control
Braking	Optional braking module
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, ground fault
Cooling	Air-cooled
Ambient Temperature	-10 °C to +50 °C
Communication Interfaces	USS protocol
