Issue 07/04 3 Functions
MICROMASTER 420 Operating Instructions
6SE6400-5AA00-0BP0
77

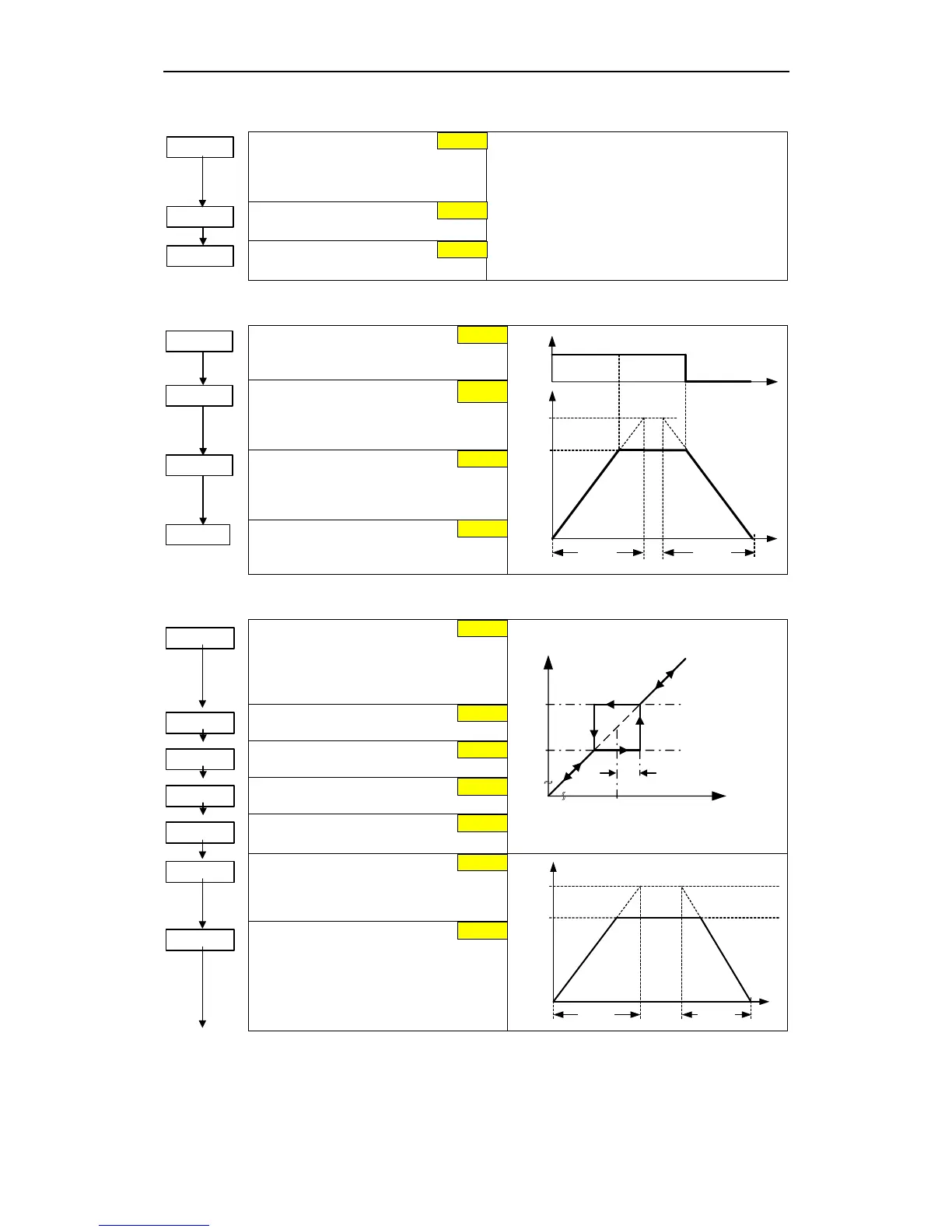

P1016 =...
Fixed frequency code –
Bit 0
Defines the selection method for fixed
frequencies.
P1017 =...
Fixed frequency code –
Bit 1
P1018 =...
Fixed frequency code –
Bit 2
1 Direct selection
2 Direct selection + ON command
3 Binary coded selection + ON command
NOTE
For settings 2 and 3, all parameters P1016 to
P1019 must be set to the selected value so that
the drive inverter accepts the ON command.
3.5.5.10 JOG
P1058 =...
JOG frequency right
Frequency in Hz when the motor is being
jogged in the clockwise direction of rotation.
P1059 =...
JOG frequency left
Frequency in Hz when the motor is being
jogged in the counter-clockwise direction of
rotation.
P1060 =...
JOG ramp-up time
Ramp-up time in s from 0 to the maximum
frequency (P1082). The JOG ramp-up is
limited by P1058 or P1059.
P1061 =...
JOG ramp-down time
Ramp-down time in s from the maximum
frequency (P1082) to 0.
P1082
(f
max
)
P1058
t
P1060 P1061
f
JOG
3.5.5.11 Ramp-function generator (HLG)
P1091 =...
Skip frequency 1 (entered in Hz)
Defines skip frequency 1 which avoids
effects of mechanical resonance and
suppresses frequencies within +/- P1101
(skip frequency bandwidth).
P1091 =...
Skip frequency 2
P1091 =...
Skip frequency 3
P1091 =...
Skip frequency 4
P1101 =...
Skip frequency bandwidth
(entered in Hz)
P1101
P1091
f
in
f
out
Skip frequency
bandwidth
Skip frequency
P1120 =...
Ramp-up time
(enters the accelerating time in s)
P1121 =...
Ramp-down time
(enters the deceleration time in s)
f
P1082
(f
max
)
f
1
t
P1120 P1121
1
1
1
10.00 s
10.00 s
5.00 Hz
5.00 Hz
2.00 Hz
0.00 Hz
0.00 Hz
0.00 Hz
0.00 Hz
10.00 s
10.00 s
