Siemens PM240-2

Spare parts and accessories
8.2 Optional accessories
Power Module PM240-2
Hardware Installation Manual, 12/2015, A5E33294624B AD
105
5.5 kW … 7.5 kW
11 kW … 18.5 kW

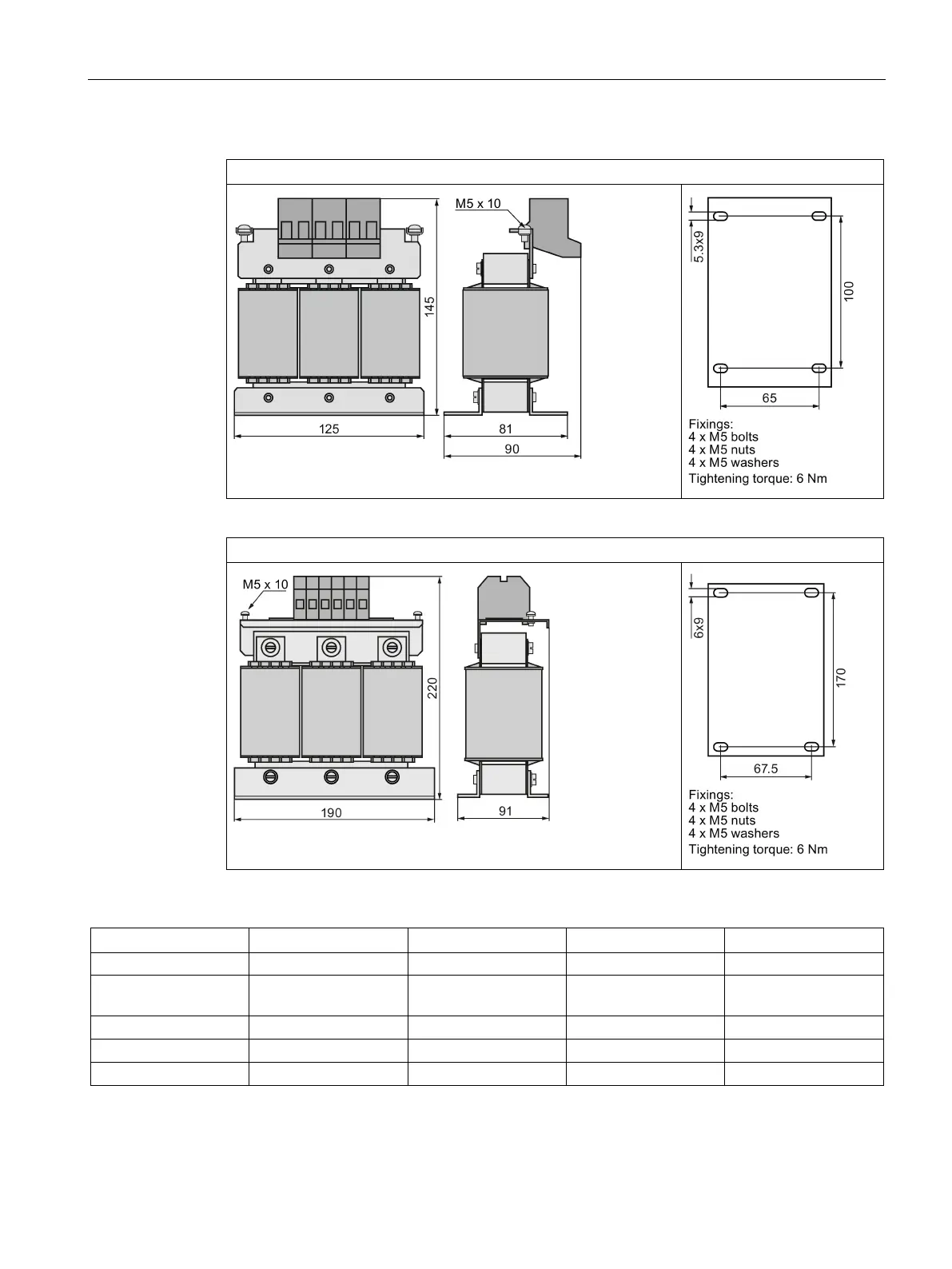

Table 8- 1 Technical data of the line reactors
Article number
6SL3203-0CE13-2AA0
6SL3203-0CE21-0AA0
6SL3203-0CE21-8AA0
6SL3203-0CE23-8AA0
Inductance
2.5 mH
1 mH
0.5 mH
0.3mH
Line/load connection 2.5 mm
2
/ 14 AWG
0.8 Nm / 7 lbf in
2.5 mm
2
/ 14 AWG
0.8 Nm / 7 lbf in
6 mm
2
/ 10 AWG
1.8 Nm / 15.9 lbf in
16 mm
2
/ 6 AWG
4.0 Nm / 35.4 lbf in
PE connection
M4 (3 Nm / 26.5 lbf in)
M4 (3 Nm / 26.5 lbf in)
M5 (5 Nm / 44.3 lbf in)
M5 (5 Nm / 44.3 lbf in)
Degree of protection
IP20
IP20
IP20
IP20
Weight
1.1 kg
2.1 kg
2.95 kg
7.80 kg
