Installing/mounting
4.3 Mounting the Power Modules
Power Module PM240-2
30 Hardware Installation Manual, 12/2015, A5E33294624B AD
The shield plates and fixings screws are included in the inverter accessory kit.

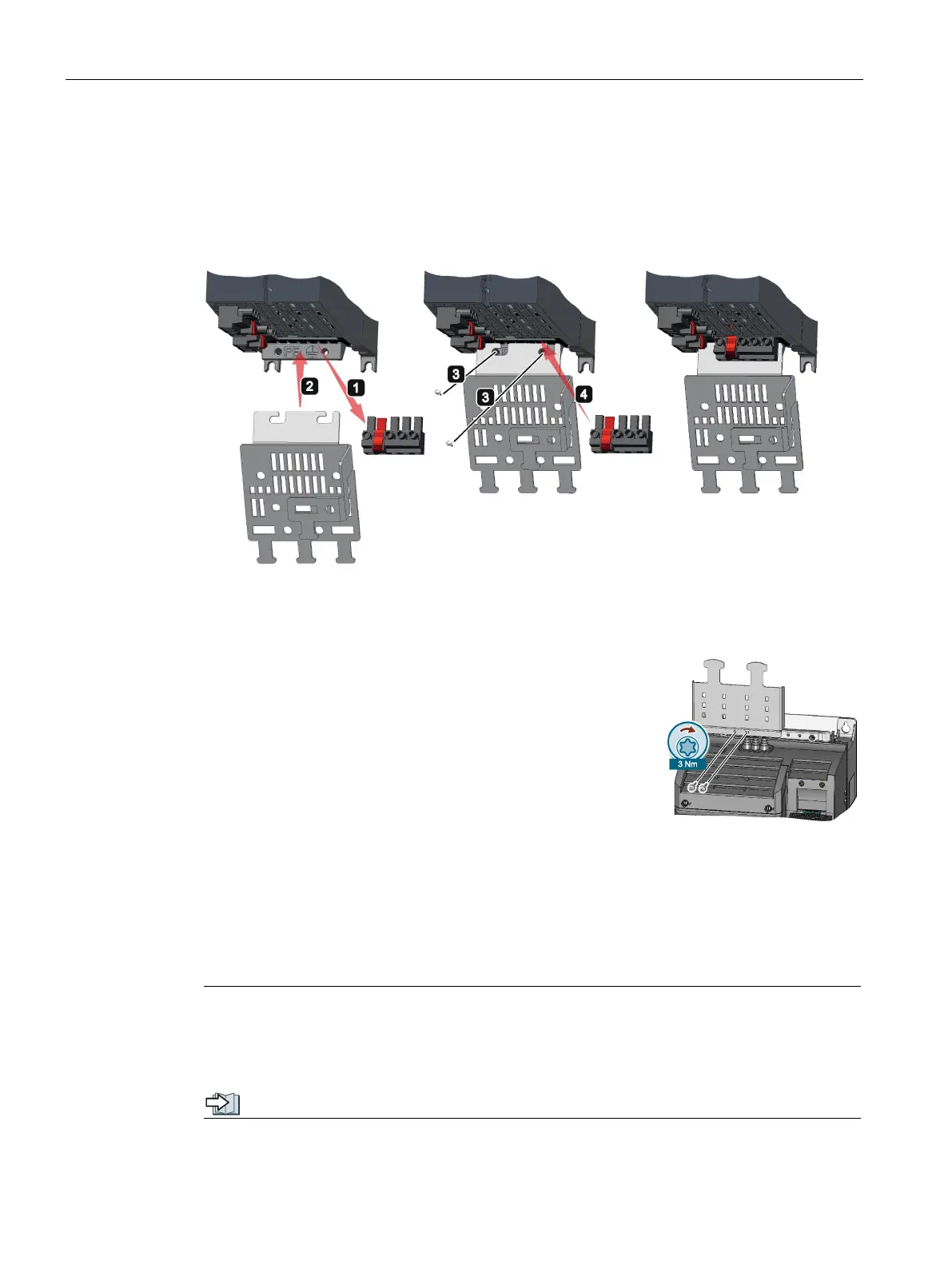

Mounting the shield plates for Power Modules, frame sizes FSA … FSC
Mounting the shield plates for Power Modules, frame sizes FSD… FSE
Mount the upper shield plate using two screws as shown in the
diagram.
The shield module comprises the shield plate and the EMC connecting bracket.
If you are using the inverter without filter, then you do not require the EMC connecting
bracket. In this case, you can attach the shield plate using four screws without the EMC
connecting bracket.
Note
Brake relay
If you are
using a brake relay to control a motor brake, then mount the brake relay at the rear
of the lower shield plate before you attach the shield module to the inverter.
Mounting and connecting the brake relay (Page 117)
