Siemens PM240-2 User Manual

Technical data
7.3 Technical data, 200 V inverters
Power Module PM240-2
Hardware Installation Manual, 12/2015, A5E33294624B AD
71

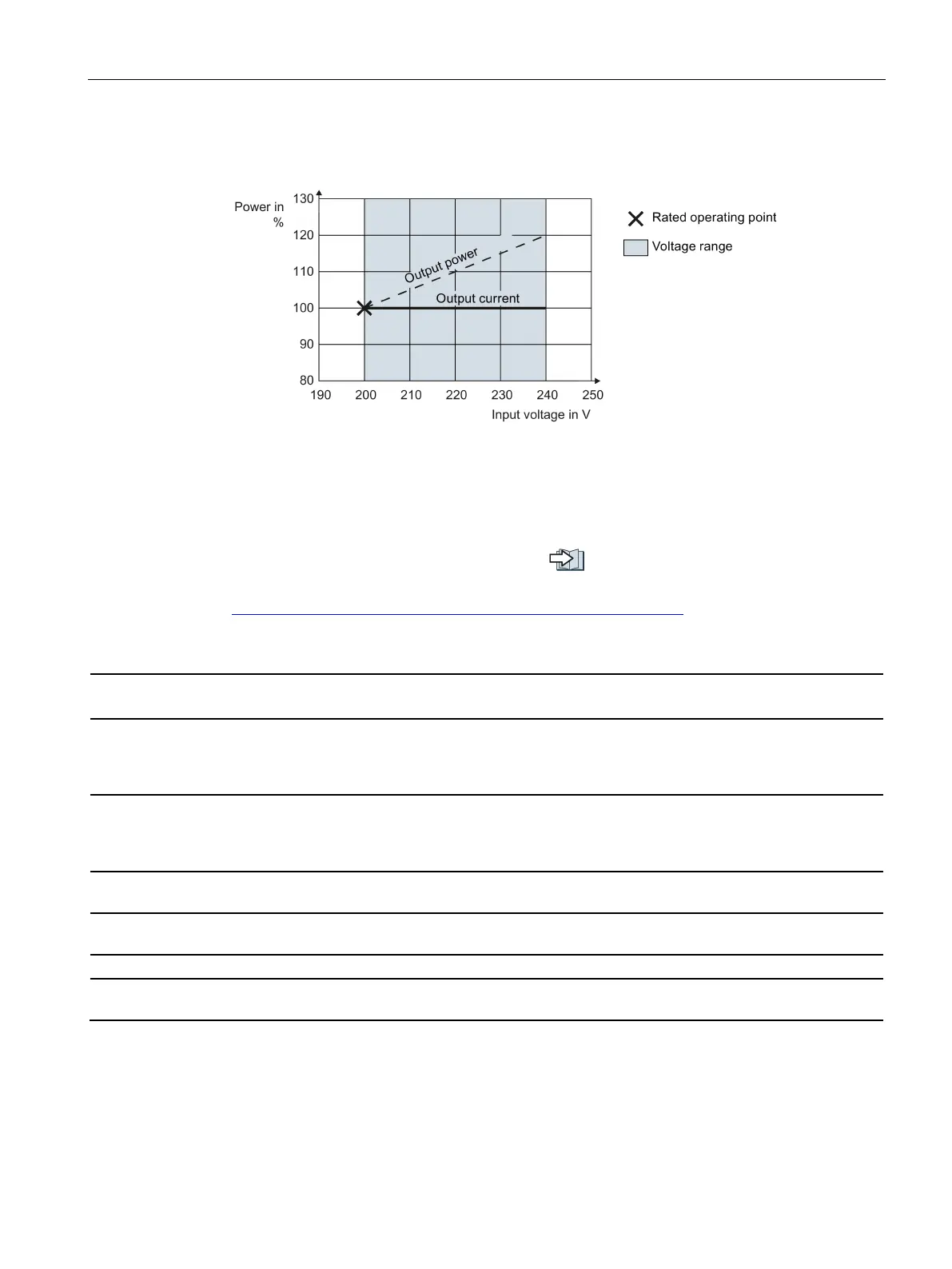

Dependent on the input voltage and output power 200 V inverters
7.3.2
Specific technical data, 200 V inverters
The fuses listed in the following tables are examples of suitable fuses.
Additional components for branch protection:
Branch protection and short-circuit
strength according to UL and IEC
(https://support.industry.siemens.com/cs/ww/en/view/109479152)
Table 7- 2 PM240-2, IP20, frame sizes A, 1 AC / 3 AC 200 V … 240 V
Article No. - without filter
Article No. - with filter
6SL3210…
6SL3210…
…1PB13-0UL0
…1PB13-0AL0
…1PB13-8UL0
…1PB13-8AL0
LO base load power
LO base load input current 1 AC
LO base load input current 3 AC
LO base load output current
0.55 kW
7.5 A
4.2 A
3.2 A
0.75 kW
9.6 A
5.5 A
4.2 A
HO base load power
HO base load input current 1 AC
HO base load input current 3 AC
HO base load output current
0.37 kW
6.6 A
3.0 A
2.3 A
0.55 kW
8.4 A
4.2 A
3.2 A
Fuse according to IEC
Fuse according to UL
3NA3 803 (10 A)
15 A Class J
3NA3 805 (16 A)
15 A Class J
Power losses without filter
Power losses with filter
0.04 kW
0.04 kW
0.04 kW
0.04 kW
Required cooling air flow
5 l/s
5 l/s
Weight without filter
Weight with filter
1.4 kg
1.6 kg
1.4 kg
1.6 kg

Siemens PM240-2 Specifications

General

Input Voltage	380 ... 480 V 3 AC
Efficiency	Up to 98%
Protection Class	IP20
Communication Interfaces	PROFIBUS, PROFINET, USS, Modbus RTU
Storage Temperature Range	-25 ... 70 °C
Relative Humidity	5 ... 95 % (no condensation)
Shock Resistance	15 m/s² (1.5 g) for 11ms
Frame Size	FS A to FS F
Operating Temperature Range	-10 ... 50 °C (without derating), -10 ... 60 °C (with derating)
