Installing/mounting
4.4 Control Unit installation
Power Module PM240-2
34 Hardware Installation Manual, 12/2015, A5E33294624B AD

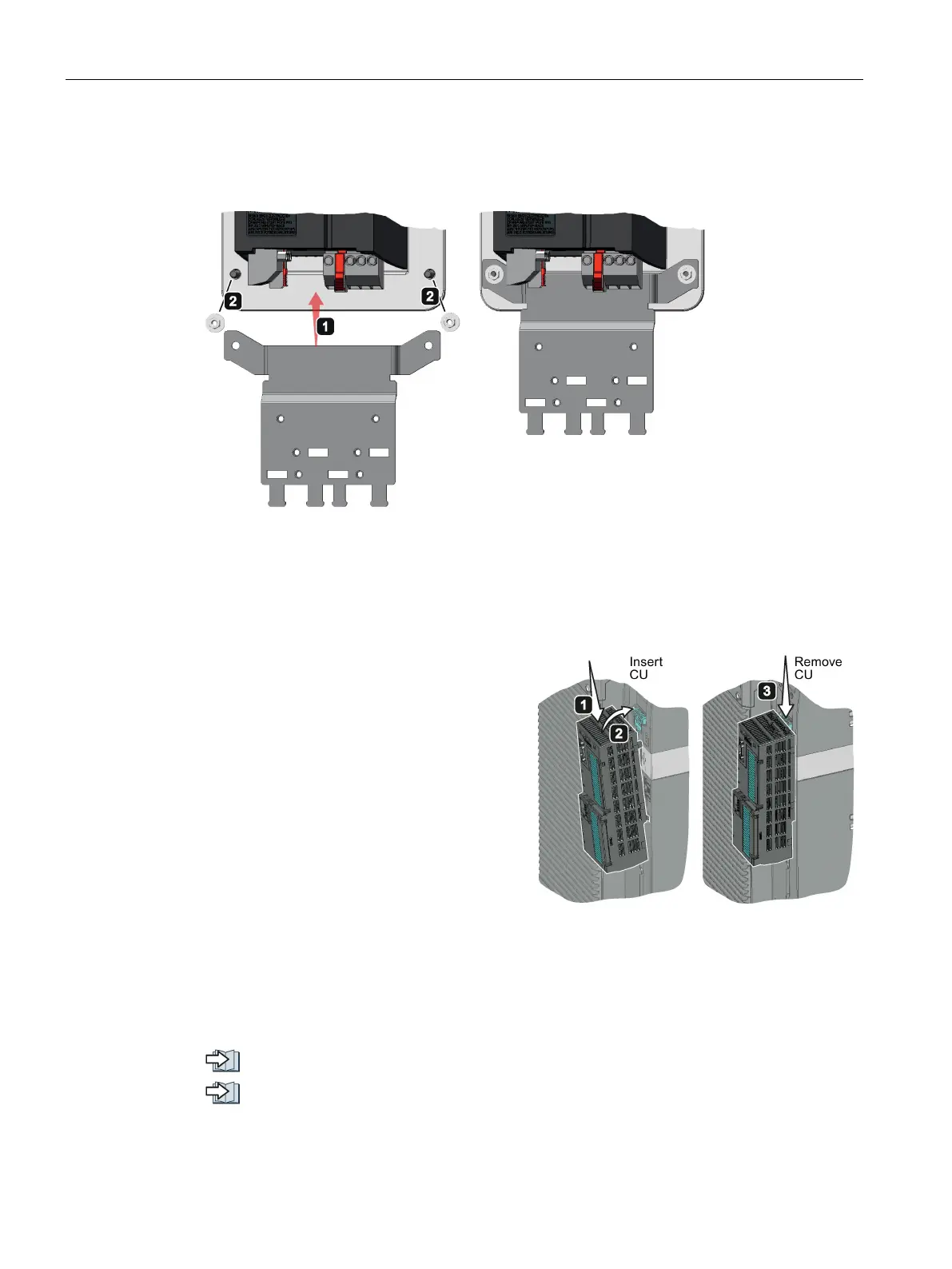

Mounting the shield plate
The shield plates and fixings screws are included in the inverter accessory kit.
Figure 4-2 Mounting the shield plate
Control Unit installation
Plug the Control Unit onto the Power
Module as shown in the diagram. By
plugging on the Control Unit, you
also establish all of the electrical
connections between the Control
Unit and the Power Module.
Press the release button on the
Power Module to r
e
Installing supplementary components
Depending on the particular application, additional components may be required for your
system. Information about additional components is provided in the following Sections:
Connection overview (Page 42)
Optional accessories (Page 99).
