Connecting-up
5.1 Line and motor connection
Power Module PM240-2
42 Hardware Installation Manual, 12/2015, A5E33294624B AD
Note
Line reactor
A line reactor is not required for the Power Modules FSD … FSF.
Line filter
The inverters are available with or without integr
ated line filter (Class A). For frame sizes
… FSC, 3 AC 400 V, there are external filters (Class B) for increased EMC
Line filter (Page 107)

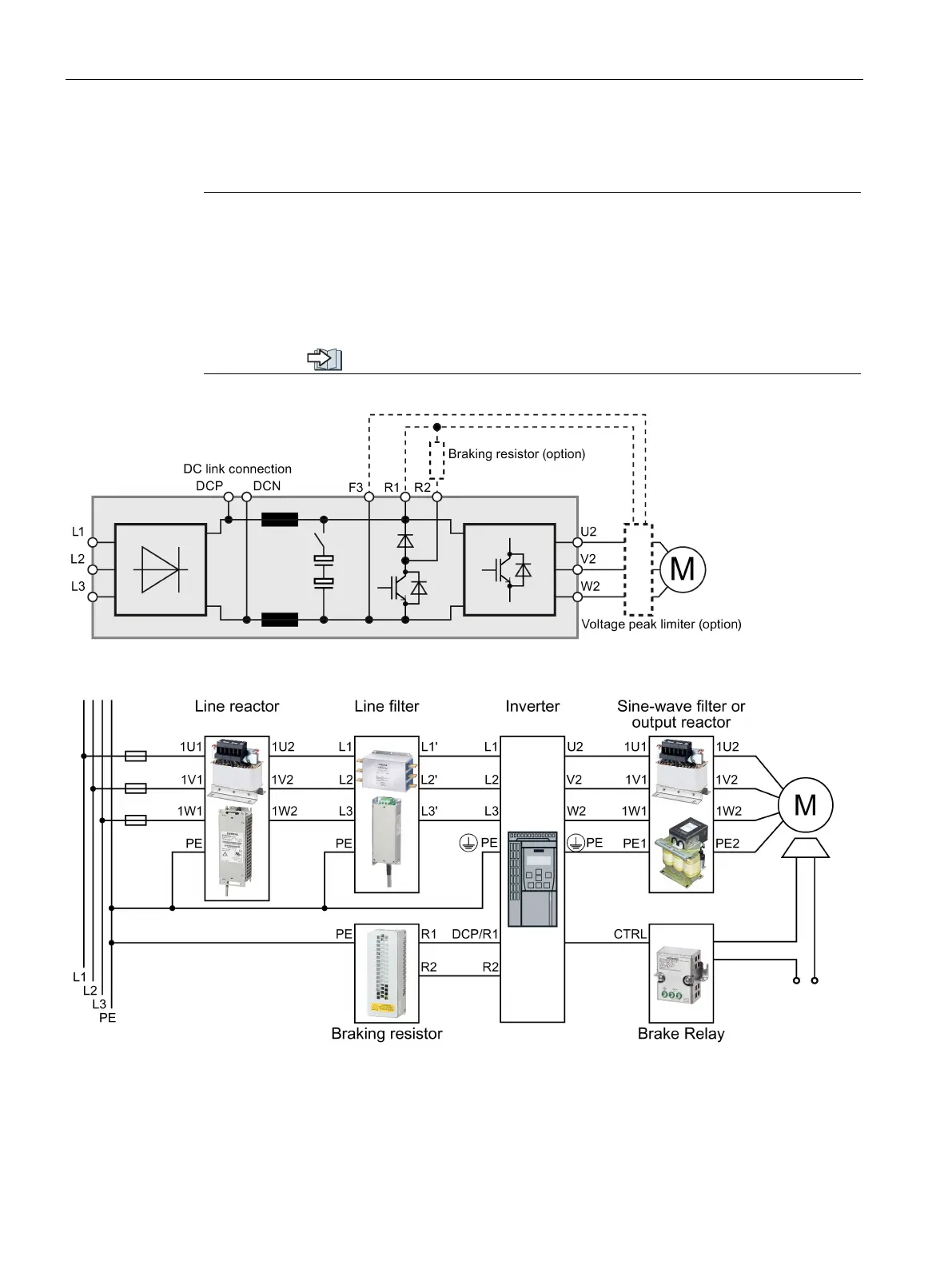

Figure 5-4 Block diagram of the inverter
Figure 5-5 Connecting PM240-2 Power Modules, 3 AC 200 V / 400 V /690 V
