6.3 Replacing a fan
Power Module PM240-2
Hardware Installation Manual, 12/2015, A5E33294624B AD
63
Fan replacement FSD … FSF
Procedure for replacing the fan module FSD ... FSF
Proceed as follows to replace a fan module:
1. Switch-off the inverter, and wait 5 minutes until the DC link capacitors have been
discharged.

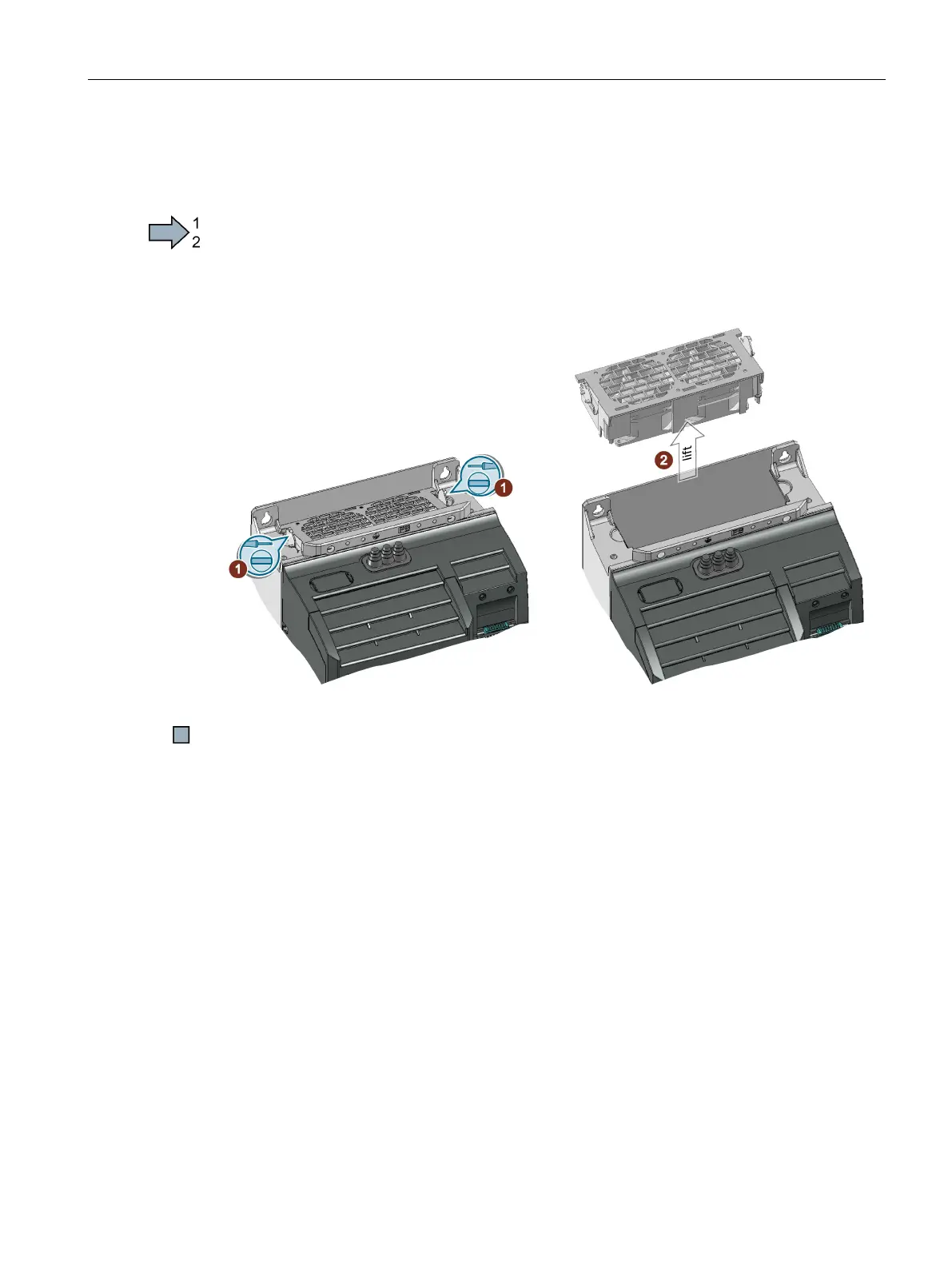

2. Remove the fan module from the Power Module as shown in the diagram.
3. Install the new fan module in the inverse sequence.
You have replaced the fan module
