Line filter

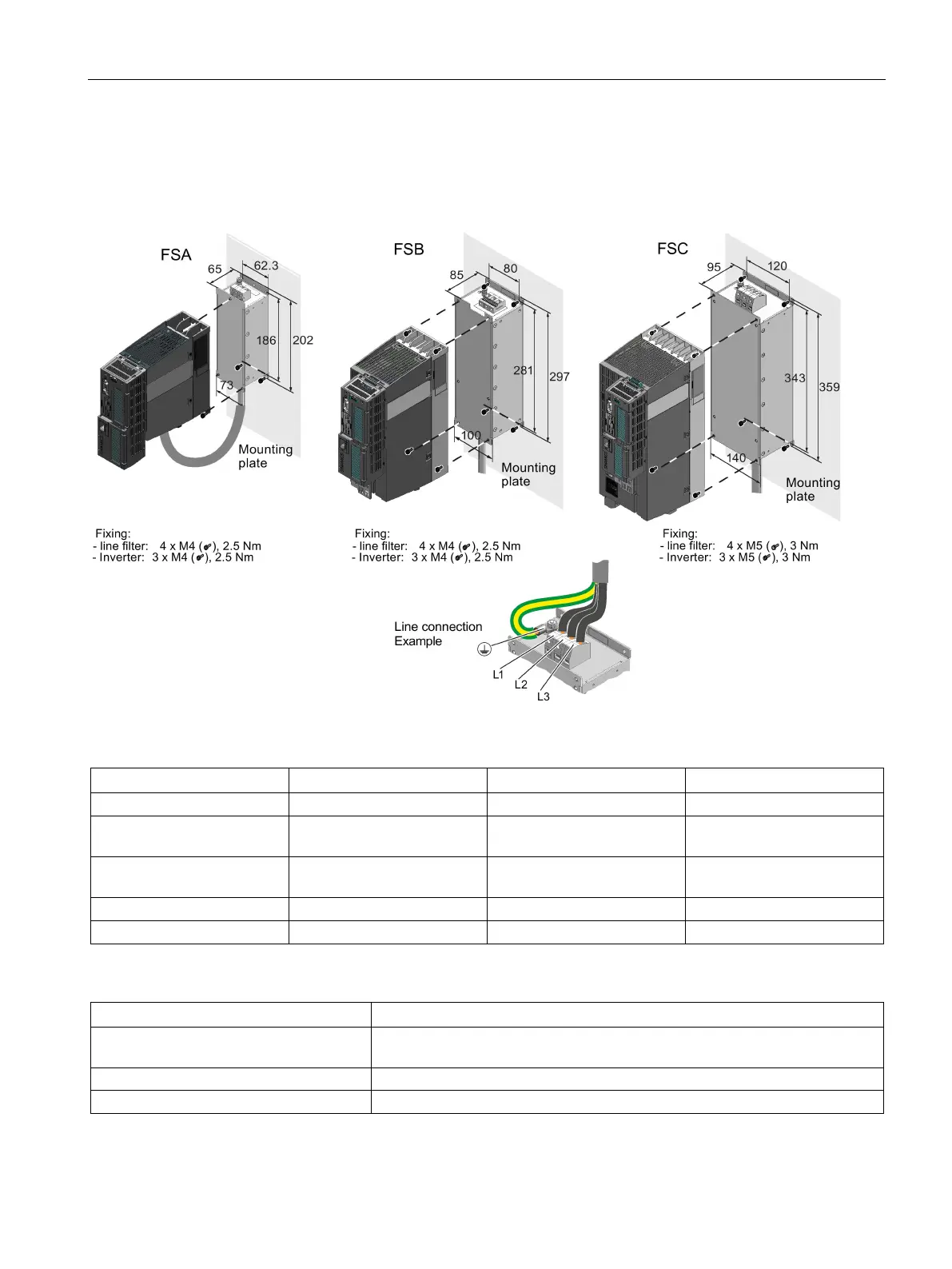

Dimensions for mounting the line filter
Table 8- 3 Technical data of the line filter (Class B)
Article number
6SL3203-0BE17-7BA0
6SL3203-0BE21-8BA0
6SL3203-0BE23-8BA0
Power loss
13 W
22 W
49.4 W
Line/load connection 2.5 mm
2
/ 14 AWG
0.8 Nm / 7 lbf in
6 mm
2
/ 10 AWG
1.8 Nm / 15.9 lbf in
16 mm
2
/ 6 AWG
4.0 Nm / 35.4 lbf in
PE connection 2.5 mm
2
/ 14 AWG
2 Nm / 17.7 lbf in
2.5 mm
2
/ 14 AWG
2 Nm / 17.7 lbf in
16 mm
2
/ 6 AWG
3 Nm / 26.5 lbf in
Degree of protection
IP20
IP20
IP20
Weight
1.75 kg
4.0 kg
7.3 kg
Table 8- 4 Assignment table
Line filter (Class B)
400 V Power Modules
6SL3203-0BE17-7BA0 6SL3210-1PE11-8UL1 6SL3210-1PE12-3UL1 6SL3210-1PE13-2UL1
6SL3210-1PE14-3UL1 6SL3210-1PE16-1UL1 6SL321☐-1PE18-0UL1
6SL3203-0BE21-8BA0
6SL3210-1PE21-1UL0 6SL3210-1PE21-4UL0 6SL321☐-1PE21-8UL0
6SL3203-0BE23-8BA0
6SL3210-1PE22-7UL0 6SL321☐-1PE23-3UL0
☐Stands for 1 or 2: 1: Chassis device 2: PT device
