Siemens PM240-2

Installing/mounting
4.3 Mounting the Power Modules
Power Module PM240-2
Hardware Installation Manual, 12/2015, A5E33294624B AD
31
If you are using an inverter with integrated line filter, then you must mount the shield module
as described below.

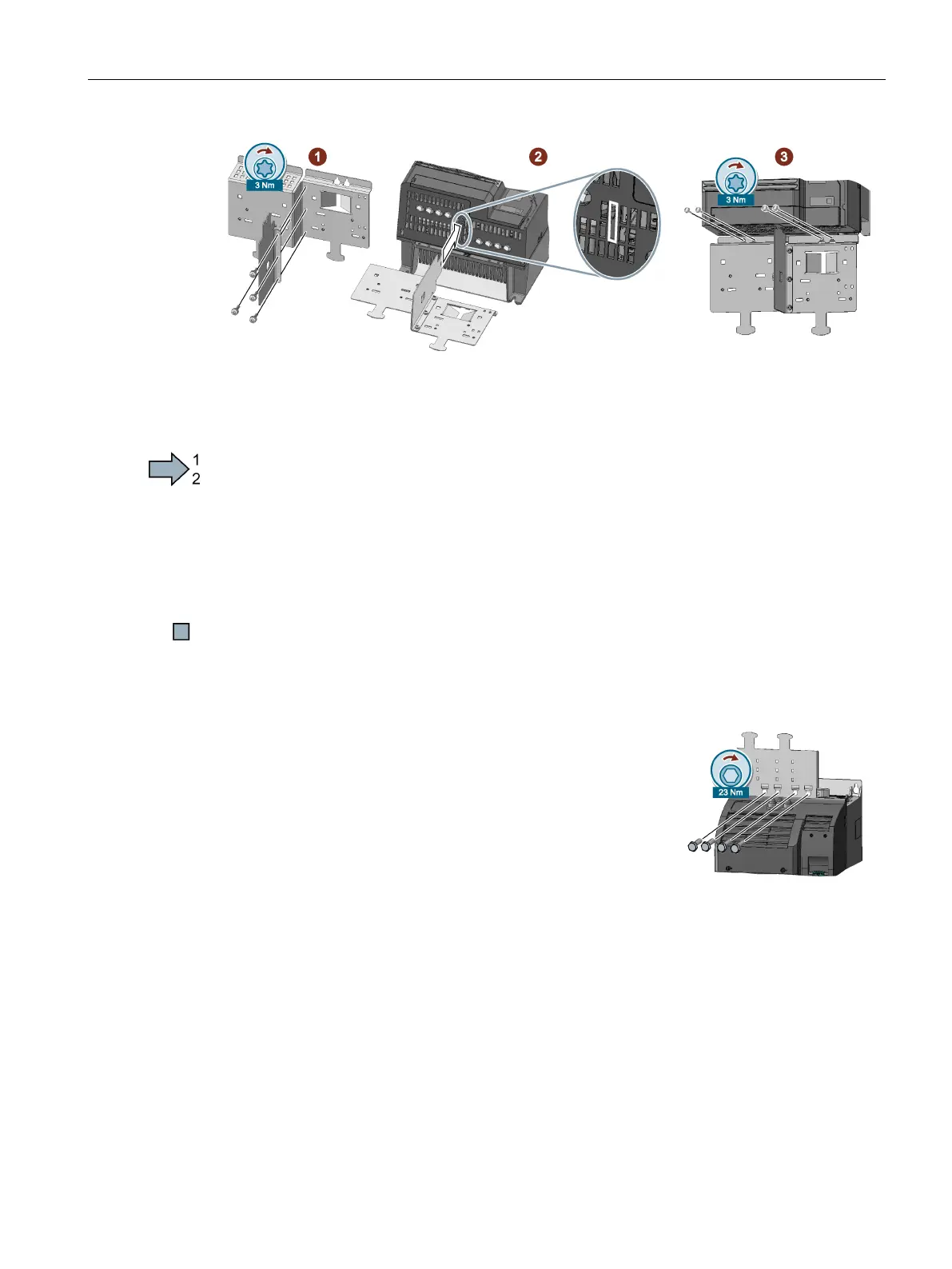

Procedure
Proceed as follows to mount the shield module:
1. Attach the EMC connecting bracket to the shield plate
①.
2. Then slide the shield module into the inverter, so that it is held in the inverter
② by the
clamping spring. The shield module is located correctly if it can be easily withdrawn out of
the inverter without any resistance.
3. After you have ensured that it is correctly located, fix the shield module using the four
screws
③.
You have correctly mounted the shield module.
Mounting the shield plates for Power Modules, frame sizes FSF
Top shield plate
Mount the upper shield plate using four screws as shown in the
diagram.
Lower shield module
The shield module comprises the shield plate and the EMC connecting bracket.
If you are using the inverter without filter, then you do not require the EMC connecting
bracket. In this case, you can attach the shield plate using three screws without the EMC
connecting bracket.
