Connecting-up
5.1 Line and motor connection
Power Module PM240-2
Hardware Installation Manual, 12/2015, A5E33294624B AD
39
In a TT line system, the transformer grounding and the installation grounding are
independent of one another.
There are TT systems with and without transfer of the neutral conductor N.
Inverter operated on a TT line system
● Inverter with integrated or external line filter:
– Operation on TT line systems with grounded neutral point permissible.
– Operation on TT line systems without grounded neutral point not permissible.
● Inverter without line filter:
– Operation on all TT line systems permissible.
● For installations in compliance with IEC, operation on a TT line system is permissible. For
installations in compliance with UL, operation on a TT line system is not permissible.
Examples for inverters connected to a TT line system

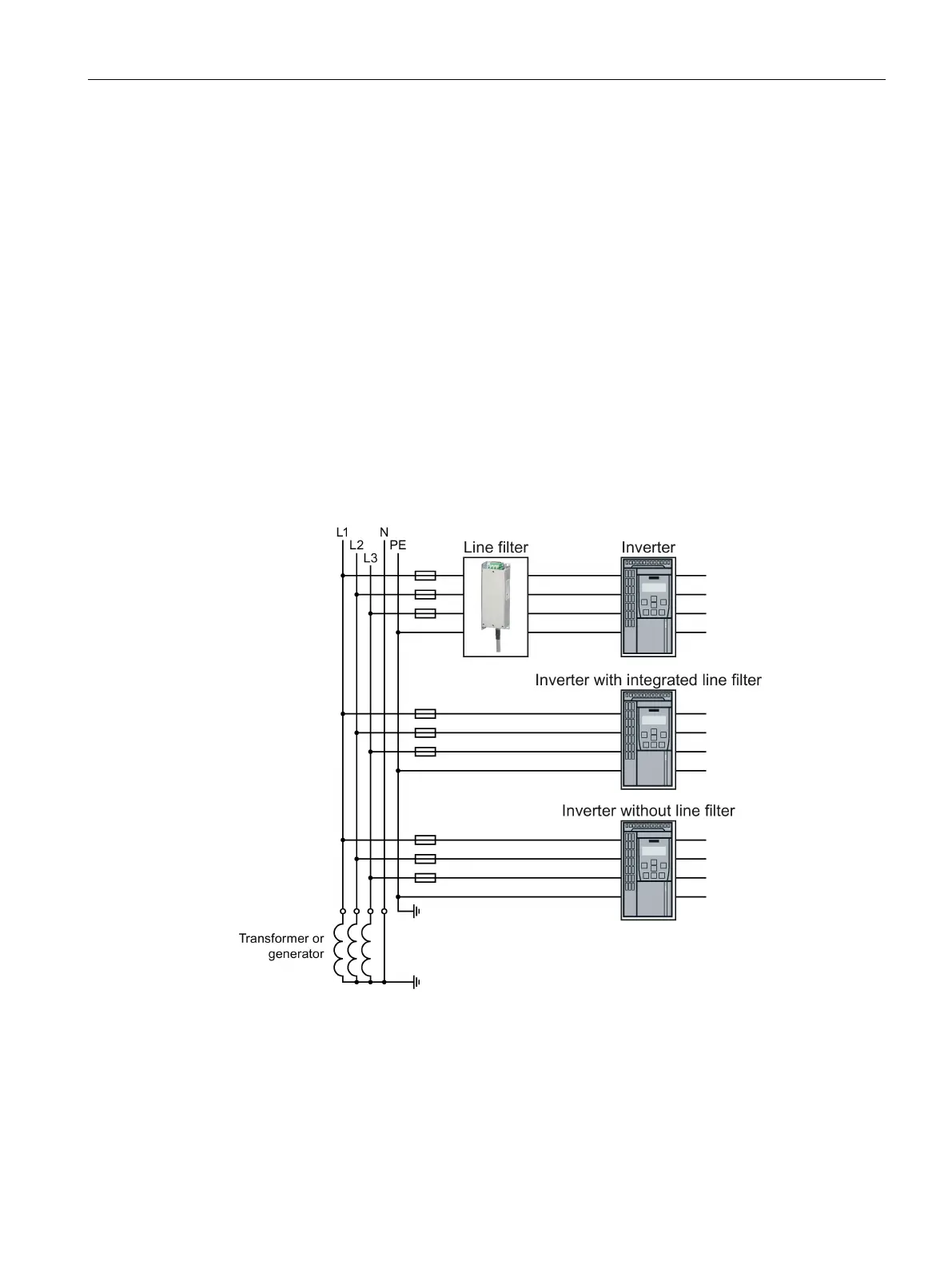

Figure 5-2 TT line system with neutral conductor N and with grounded neutral point
