3 Configuration and commissioning of the Service Bridge
Service Bridge – Setup and Configuration
Entry ID: 109747975, V1.4, 05/2019
15
 Siemens AG 2019 All rights reserved

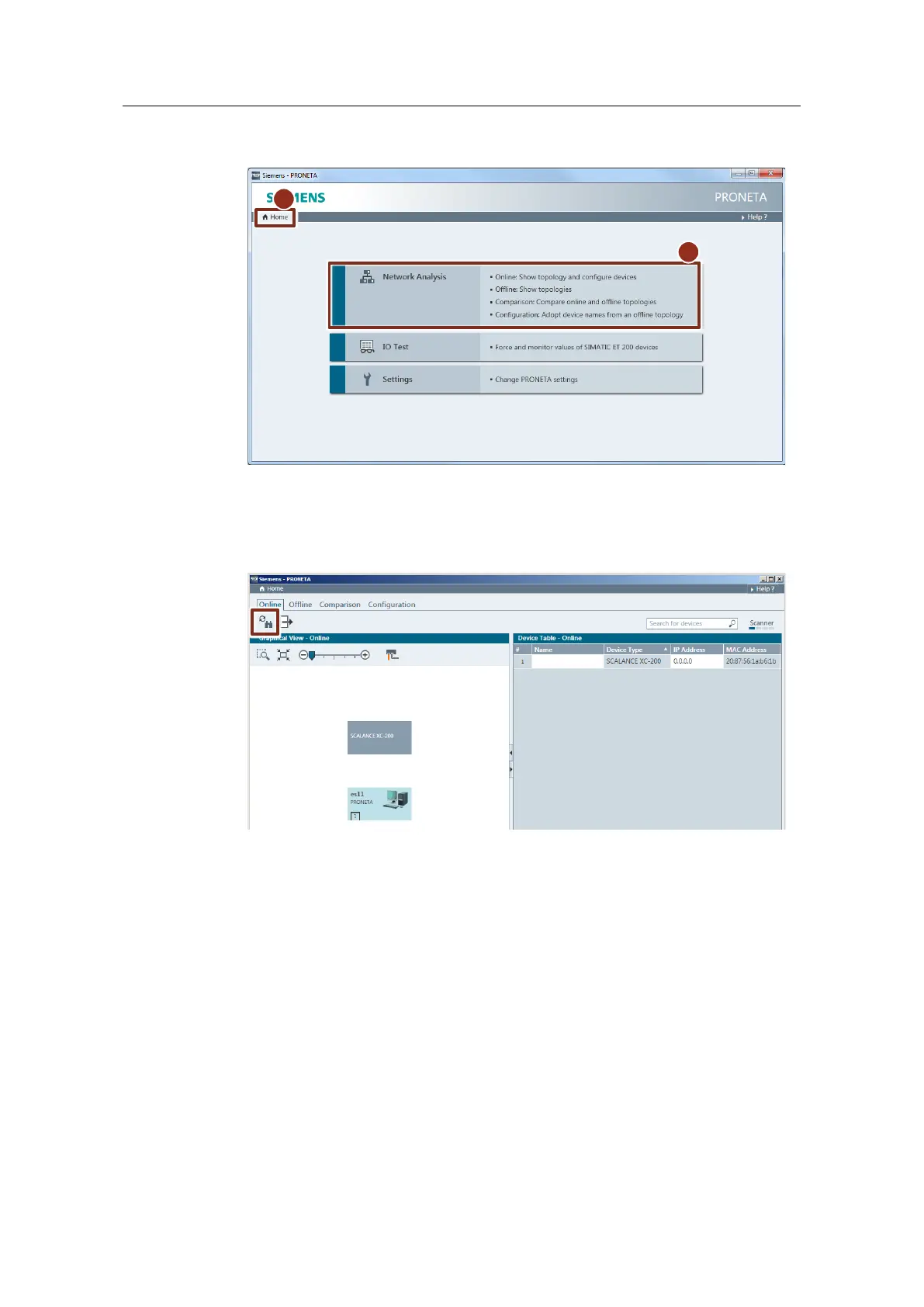

3. Click on "Home" (1) and then click on "Network Analysis" (2) to open the
network analysis view.
1
2
4. After opening the network analysis view, a scan is automatically performed.
The SCALANCE XC-200 switch is then listed in the graphic and tabular view. If
the switch is not found, you can perform another scan using the "Refresh"
button.
