2.5.4.3 Pin Assignment

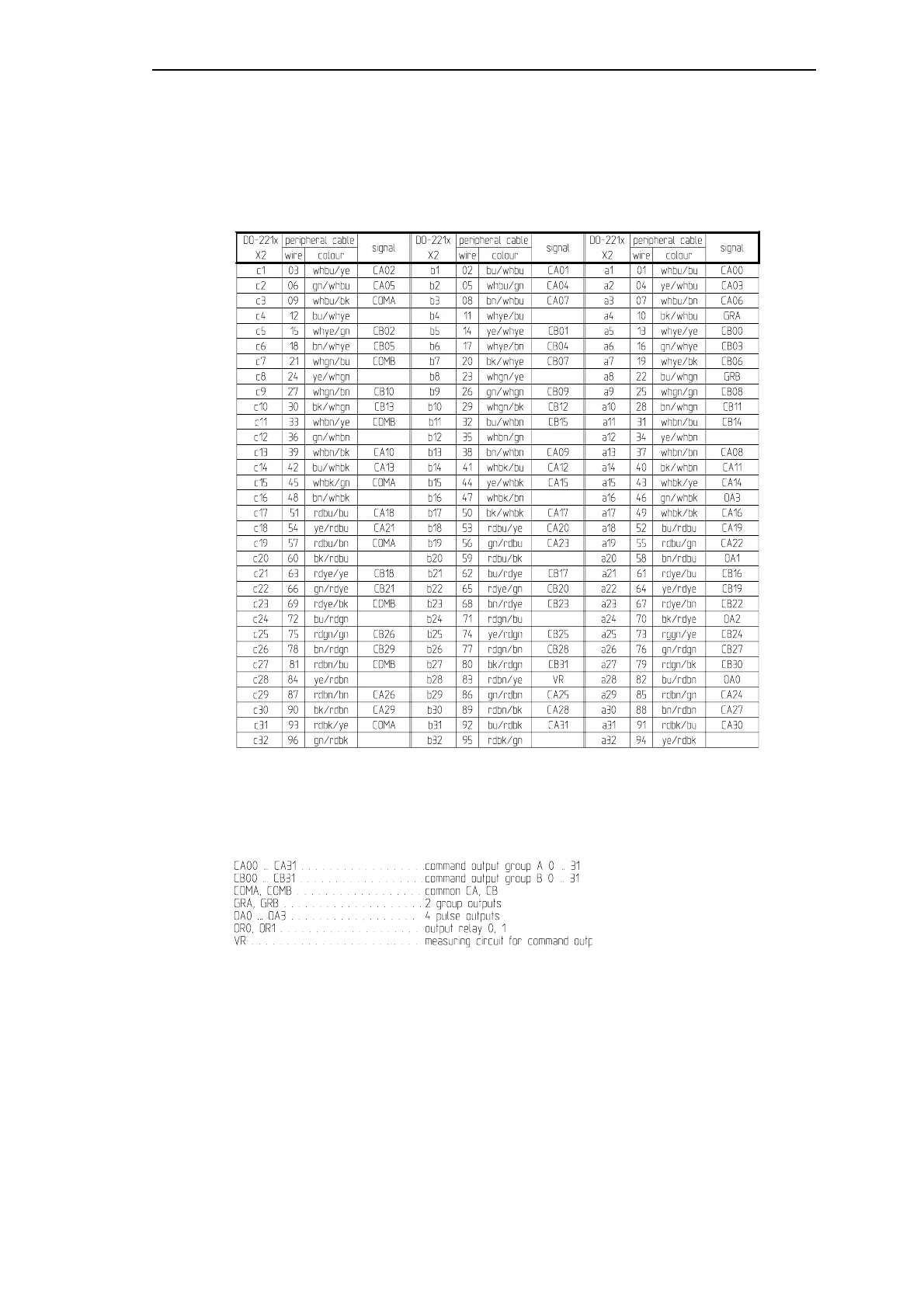

A 96-pin male connector according to DIN 41612 type C is used. The peripheral connector's
pin assignment is described in the following table.
The "DO/X2" column refers to the male connector of the peripheral connectors.
The abbreviations have the following meaning:
