Installation
32 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03
1.2.4 Install Board Rack CM-2846, CM-2843 and CM-2848
The board racks CM-2846, CM-2843 and CM-2848 are primarily designed for
19" (swing-)frame installation.
The wall fastening kit (TC2-702 / 6MF13130CH020AA0), which is necessary for rear panel in-
stallation, must be ordered separately.
The board rack CM-2847 is only designed for 19" (swing-)frame installation.
1.2.4.1 19" (Swing) Frame Installation
Proceed as follows:
Determine the position at which the board rack is to be installed; please note thereby, that
a space of 3HU must be maintained above the board rack

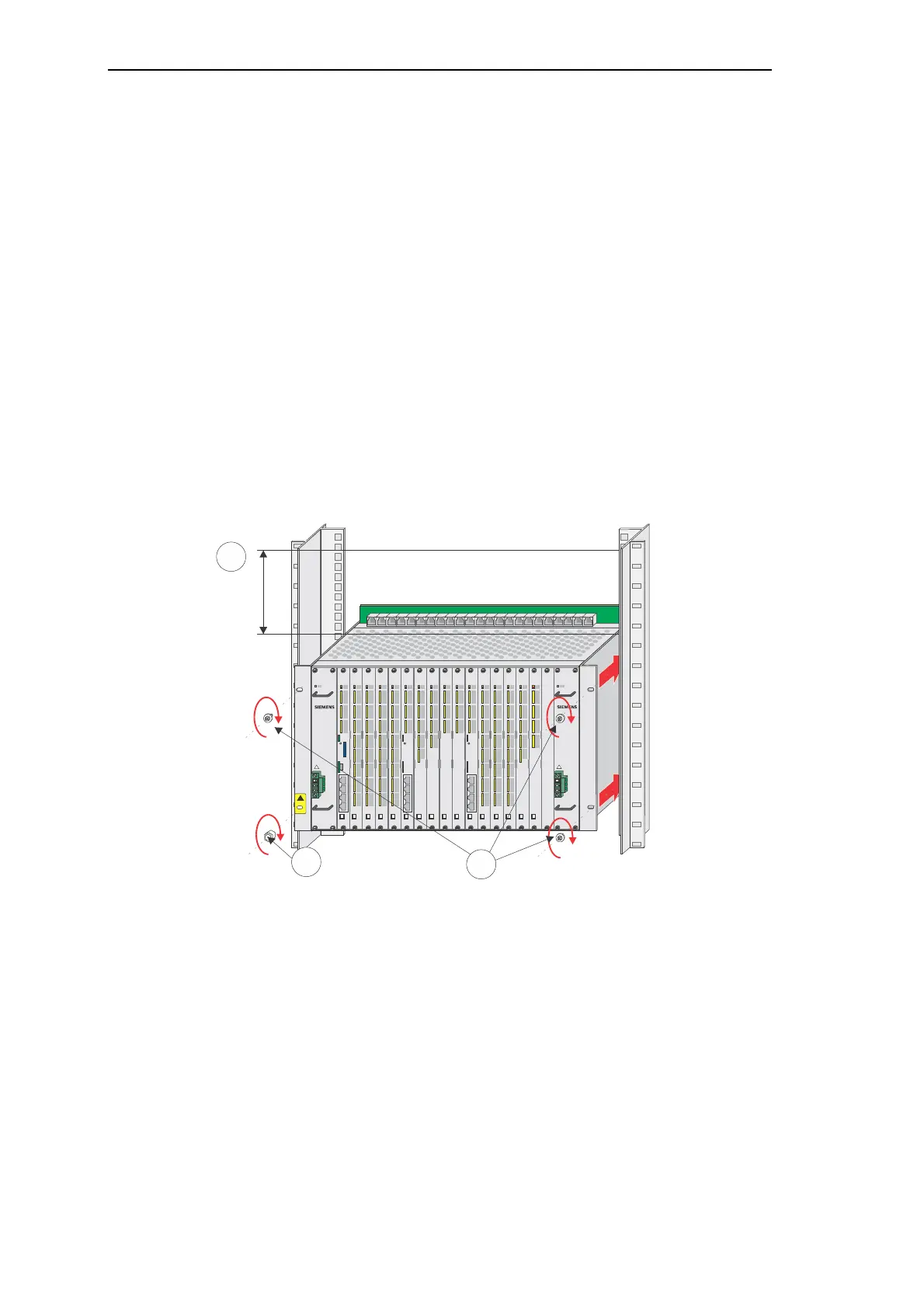

Screw the board rack to the 19" frame; use therefore the M6x16 (DIN 85) screws and the
washers 6,4-KST (DIN 125) at position , and the ESD-screw M6x14 at position ƒ
SIC AM AK
PS-263x
SICAM AK
PS-263x
CP-2016 DI-2110 DO-2210 AI-2300 CP-2019 AI-2301
DI-2110
DI-2110
DO-2210
AI-2300
CP-2019
AI-2301
AI-2301
DI-2110
DI-2110
DI-2110
1
3
2
min. 3HU
