Siemens SICAM AK 3 - Block Diagram; Connector to Carrier Module

System Components
148 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03

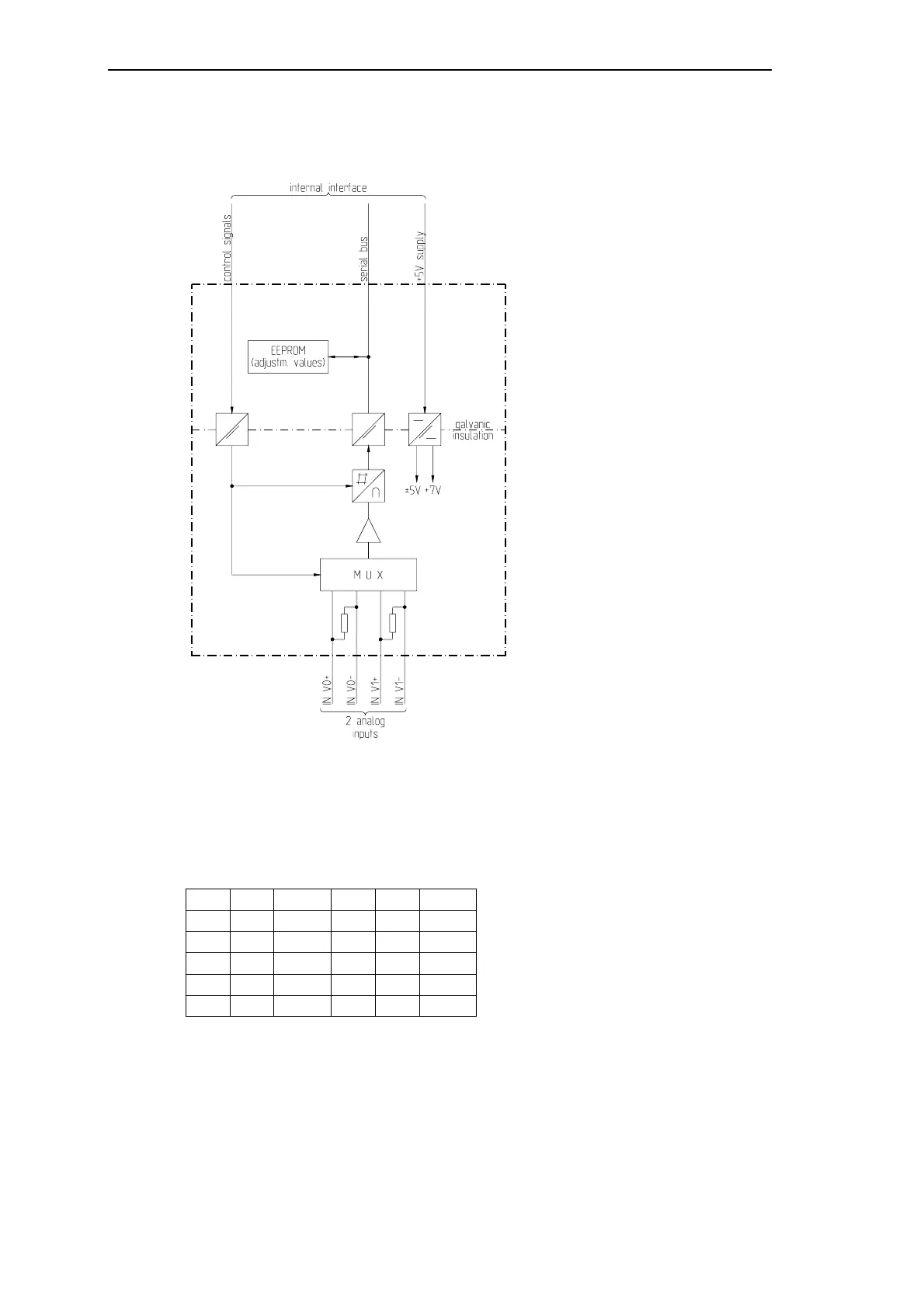

2.7.2.1 Block Diagram
2.7.2.2 Connector to Carrier Module
The pin assignment of the connector is described as follows:
Pin Alias Signal Pin Alias Signal
1 I/O 0 IN V0+ 2 I/O 1 IN V0-
3 I/O 2 4 I/O 3
5 6
7 I/O 4 IN V1+ 8 I/O 5 IN V1-
9 I/O 6 10 I/O 7
The abbreviations have the following meaning:
IN V0+, IN V0- = analog input 0
IN V1+, IN V1- = analog input 1
