Siemens SICAM AK 3 User Manual

Installation
20 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03

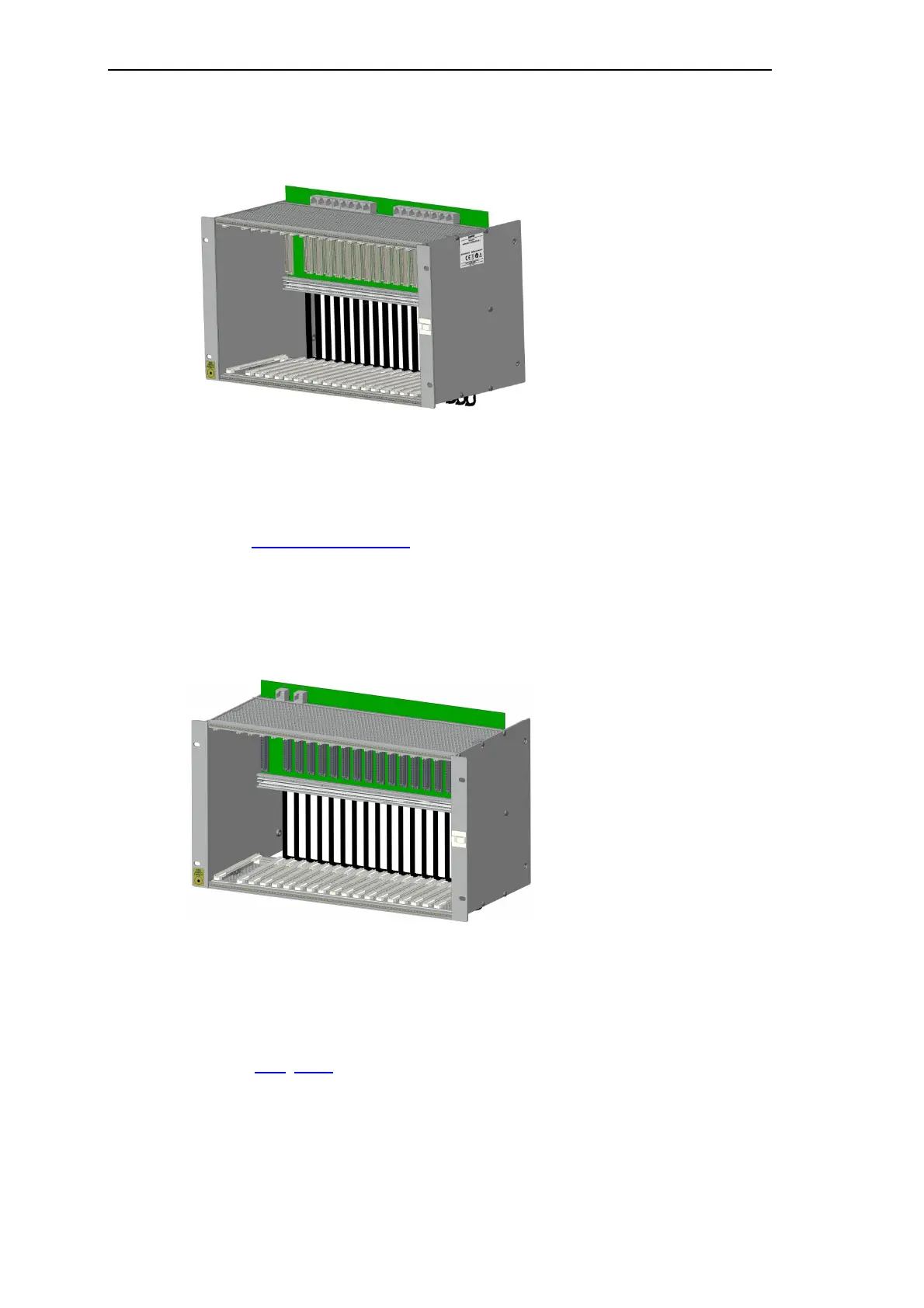

1.1.3 CM-2848 Basic Board Rack, 17 Slots
The basic board rack CM-2846 has 17 slots for modules and 2 slots for power supplies in
double euro format. It serves for the equipment of basic modules and peripheral modules.
It can be used for 19" (swing-)frame installation and rear panel assembly. This example
shows a board rack for the 19" (swing-)frame installation.
In section 1.2.2 Space Requirement you can find information on the dimensions.
Further information can be found in the SICAM AK 3 System Description.
1.1.4 CM-2843 Expansion Board Rack, 16 Slots
The expansion board rack CM-2843 has 16 slots for modules and 2 slots for power supplies in
double euro format. It serves for the equipment of peripheral modules.
It can be used for 19" (swing-)frame installation and rear panel assembly. This example
shows a board rack for the 19" (swing-)frame installation.
In section 1.2.2, Space Requirement you can find information on the dimensions.
Further information can be found in the SICAM AK 3 System Description.
