1.4.6 Cable Routing

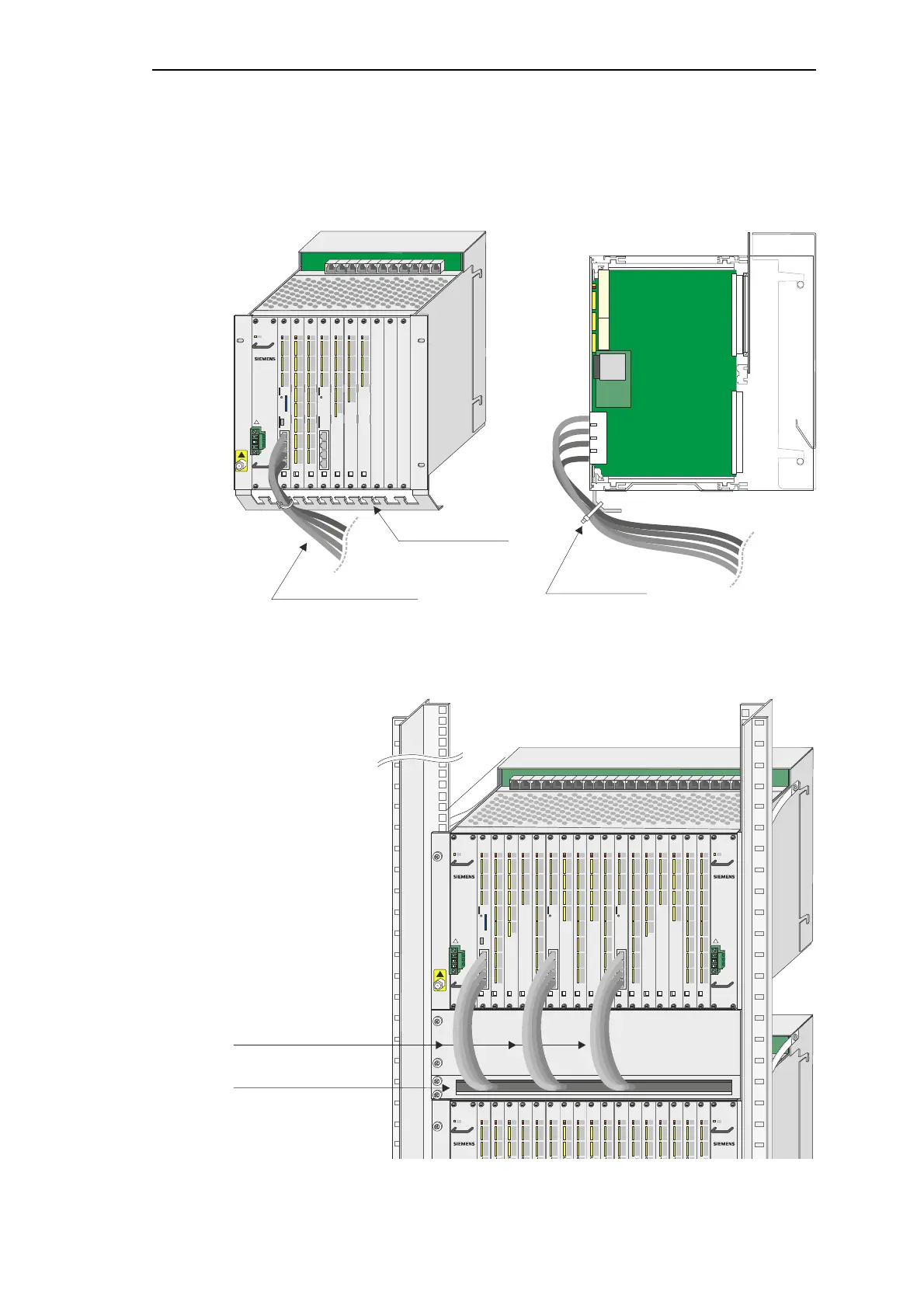

It is recommended to fasten the communication cables to the cable strain relief by means of a
cable fastener.
In a (swing-) frame Installation the communication cables must be lead through the cable en-
try panel and tightened to the cable clamp rail by means of cable fastener.
SICAM AK
PS-263x CP- 2016 DI-2110 DI-2110 CP-2019 DO- 2210 AI- 2301 AI- 2300
Cable fastener
Communication cables
cable strain relief
ESD
EARTH
FACI LITY
SICAM AK
PS-263x
CP-2016
DI-2110
DO-221 0
AI-2300
CP-20 19
AI-2301
DI-2110
DI-2110
DO-22 10
AI-2300
CP-201 9
AI-2301
SICAM AK
PS-263x
DI-2110
AI-2301
DI-2110
DI-2110
DI-2110
SICAM AK
P S-263 x D I-2110 DO -221 0
AI-2300
AI-2301
DI-2110
DI-2110
DO-22 10
AI-2300
SICAM AK
PS-263x
DI-2 110
AI-2301
DI-2 110
DI-2110
DI-2 110
AI-2300
DI-2 110
DI-2110
DI-2110
Communication cables
Cable entry panel
