Installation
30 SICAM RTUs, SICAM AK 3 User Manual
Edition 07.2016, DC2-028-2.03
1.2.3 Install Board Rack CM-2844
The board rack CM-2844 is supplied as set with wall bracket and cable strain relief.
Proceed as follows:
• remove the wall bracket from the board rack

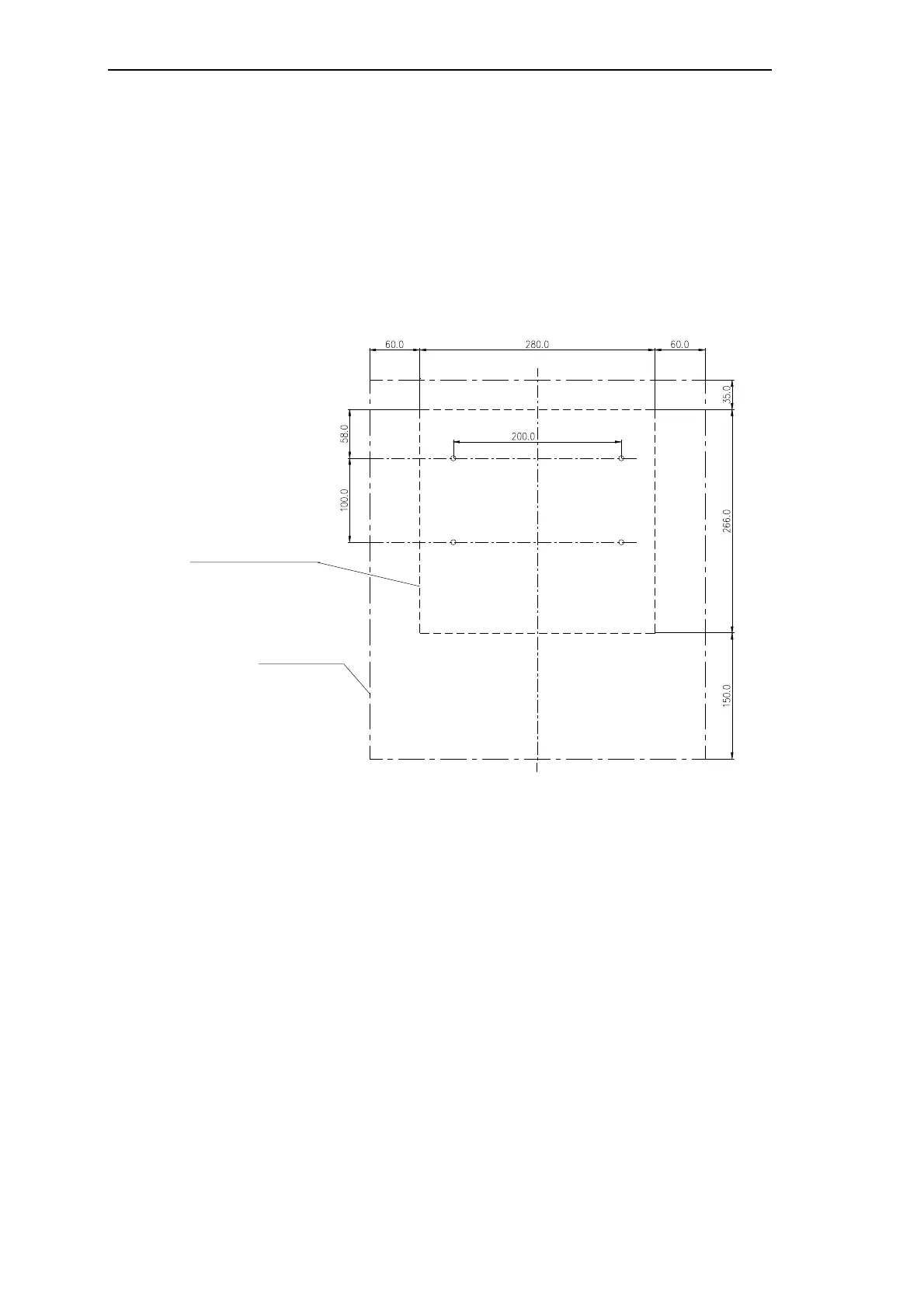

• Mark out the drill holes for the wall bracket on the rear panel of the cabinet according to
the enclosed drilling diagram (DC2-000-1)
• Drill the holes according to the specifications on the drilling diagram
DEVICE EDGE WITHOUT
MINIMUM SPACE
WALL BRACKET
